Chapter 9 Axis Configuration Examples for the PowerFlex 755 Drive
4. From the Data Source pull-down menu, choose Catalog Number.

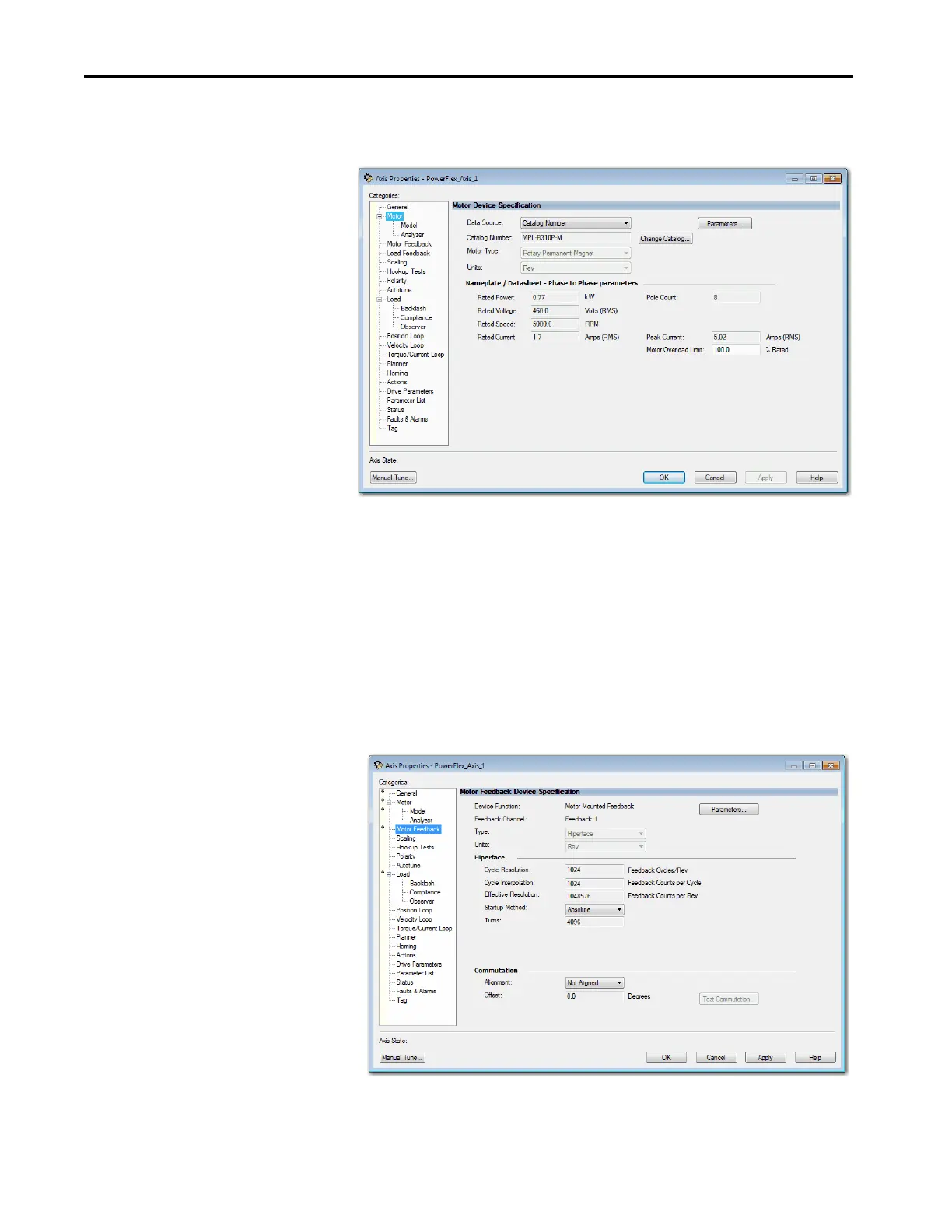

Figure 60 - Example 2: Position Loop with Dual Feedback, Motor Dialog Box
5. Click Change Catalog and choose your motor.
In this case, a MPL-B310P-M motor was chosen.
When you select the Catalog Number for the motor specification, the
MPL-B310P-M motor is in the Motion Database. The specification
data for this motor is automatically entered for you. If the motor you are
using is not listed in Change Catalog, then it is not in the Motion
Database. You have to enter the specification data on your own.
The Motor Feedback dialog box is automatically filled based on your
motor selection.
Figure 61 - Example 2: Position Loop with Dual Feedback, Motor Feedback Dialog Box
