Axis Configuration Examples for the PowerFlex 755 Drive Chapter 9

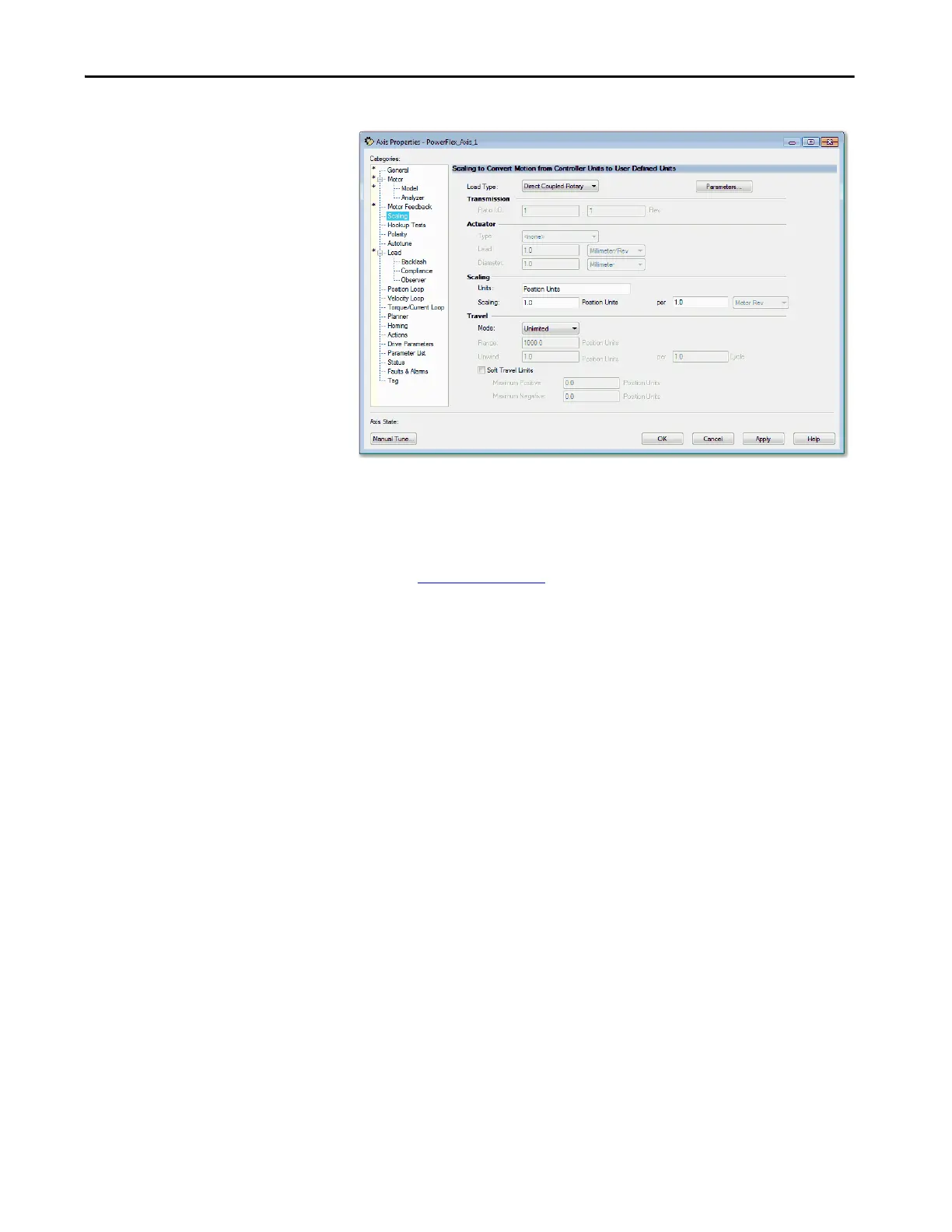

Figure 65 - Example 2: Position Loop with Dual Feedback, Scaling Dialog Box
7. From the Load Type pull-down menu, choose your load type.
8. Enter the Scaling Units.
9. From the Travel Mode pull-down menu, choose a Travel Mode.
See Scaling on page 222
for more information about Scaling.
10. Click Apply and OK to exit Axis Properties.
You are now finished configuring a PowerFlex 755 drive axis as Position Loop
with Dual Feedback.
