204 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019

Chapter 9 Axis Configuration Examples for the PowerFlex 755 Drive

5. From the Frequency Control Method pull-down menu, choose the

appropriate method.

6. Click Apply.

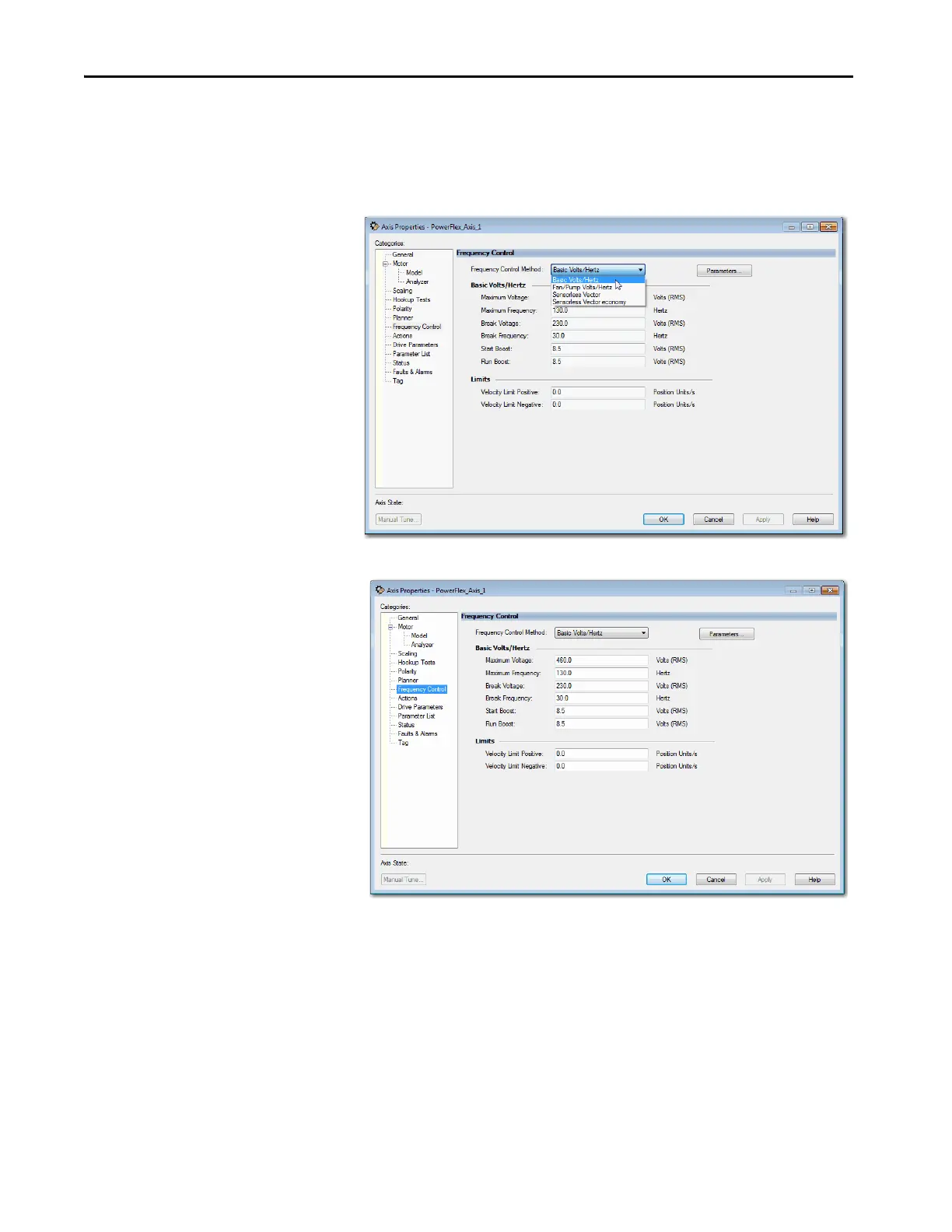

Figure 78 - Example 5: Frequency Control with No Feedback, Frequency Control Dialog Box

Figure 79 - Example 5: Frequency Control Method, Basic Volts/Hertz
