Axis Configuration Examples for the PowerFlex 755 Drive Chapter 9

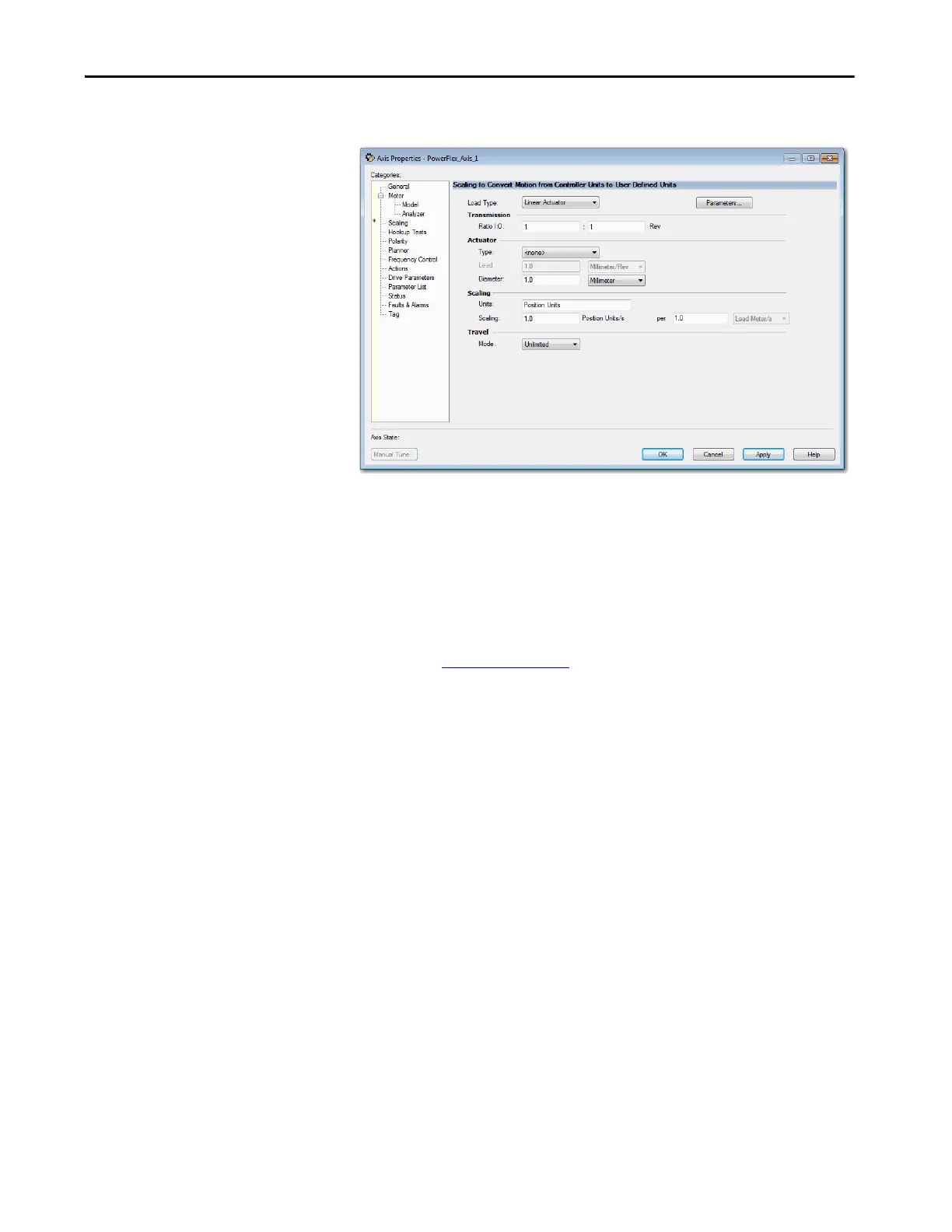

Figure 80 - Example 5: Frequency Control with No Feedback, Scaling Dialog Box Conversion
Units
7. From the Load Type pull-down menu, choose the appropriate load type.
8. Enter the Transmission Ratio.
9. From the Actuator Type pull-down menu, choose the appropriate
actuator.
10. Enter the Diameter dimensions.
11. Enter the Scaling Units.
See the Scaling on page 222
for more information.
12. From the Travel Mode pull-down menu, choose the appropriate travel
mode.
13. Click Apply.
You are now finished configuring the axis for Frequency Control with No
Feedback.
