Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 211

Axis Configuration Examples for the PowerFlex 527 Drive Chapter 10

6. Select the Motor category.

The Motor Device Specification dialog box appears.

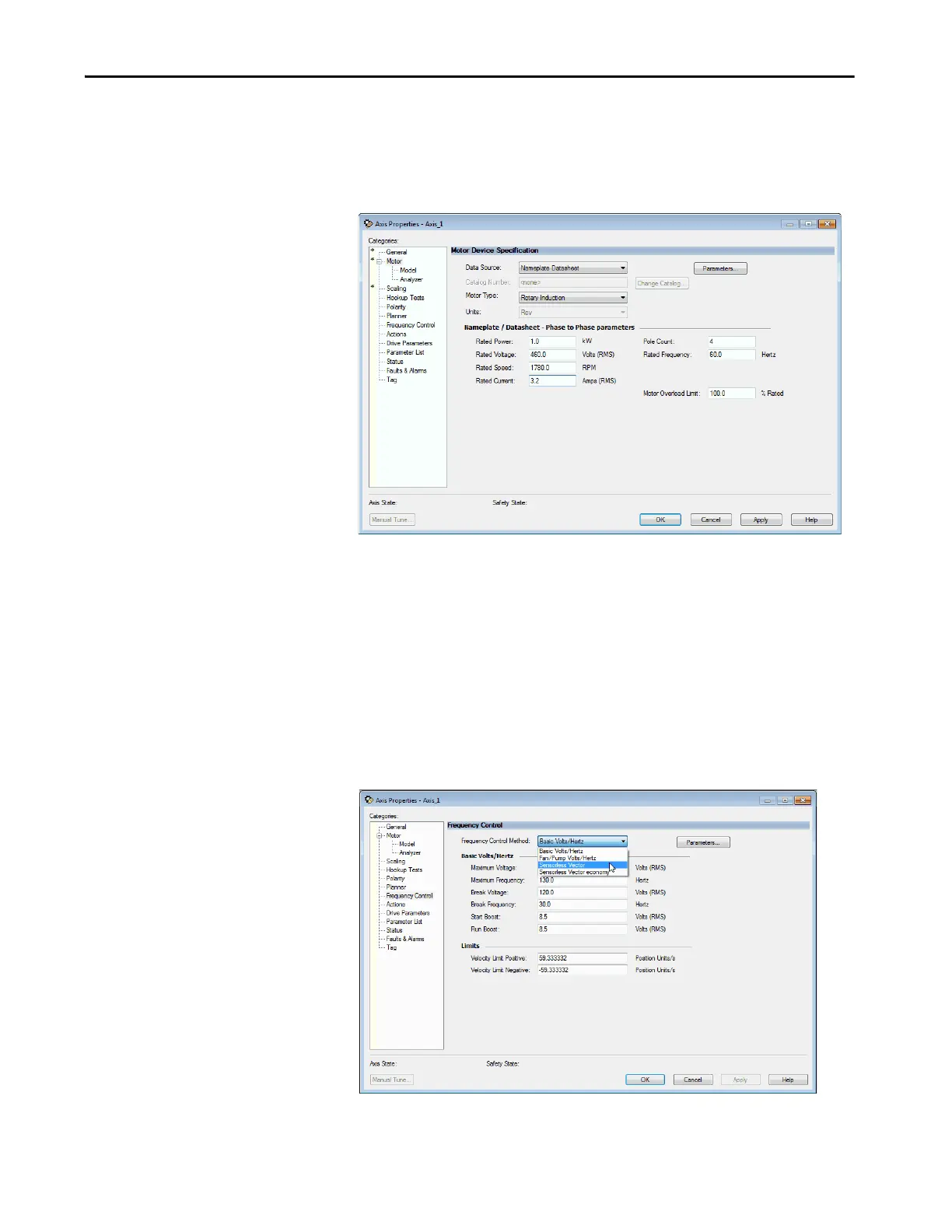

Figure 88 - Example 1: Frequency Control with No Feedback, Motor Device Specification Dialog

Box

7. From the Data Source pull-down menu, choose Nameplate data sheet.

This selection is the default setting.

8. From the Motor Type pull-down menu, choose Rotary Induction.

9. From the motor nameplate or data sheet, enter the phase-to-phase

values.

10. Click Apply.

11. Select the Frequency Control category.

The Frequency Control dialog box appears.

Figure 89 - Example 1: Frequency Control with No Feedback, Frequency Control Dialog Box

12. From the Frequency Control Method pull-down menu, choose the

method appropriate for your application.
