218 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019
Chapter 10 Axis Configuration Examples for the PowerFlex 527 Drive
7. From the Data Source pull-down menu, choose Nameplate data sheet.
This selection is the default setting.
8. From the Motor Type pull-down menu, choose Rotary Induction.
9. From the motor nameplate or data sheet, enter the phase-to-phase
values.
10. Click Apply.
11. Select the Motor Feedback category.

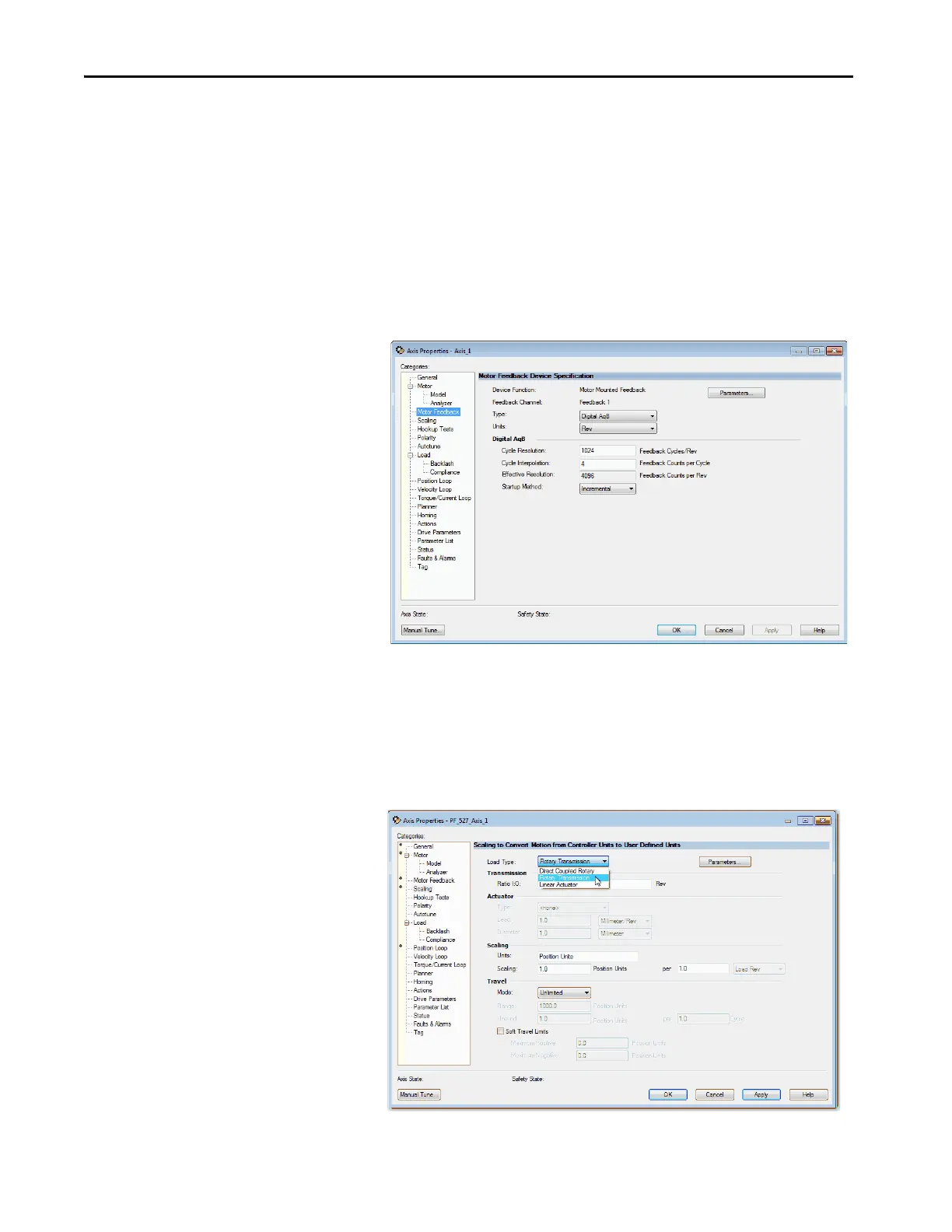

Figure 99 - Example 3: Position Control with Motor Feedback, Motor Feedback Device
Specification Dialog Box
12. Enter the specifications of your encoder into the fields.
13. Click Apply.
14. Select the Scaling category and edit the values as appropriate for your
application.
Figure 100 - Example 3: Position Control with Motor Feedback, Scaling to Convert Motion from
Controller Units to User-defined Units Dialog Box
15. If you changed any settings, click Apply.
