68 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019

Chapter 4 Configure Integrated Motion Control Using Kinetix 5700 Drives

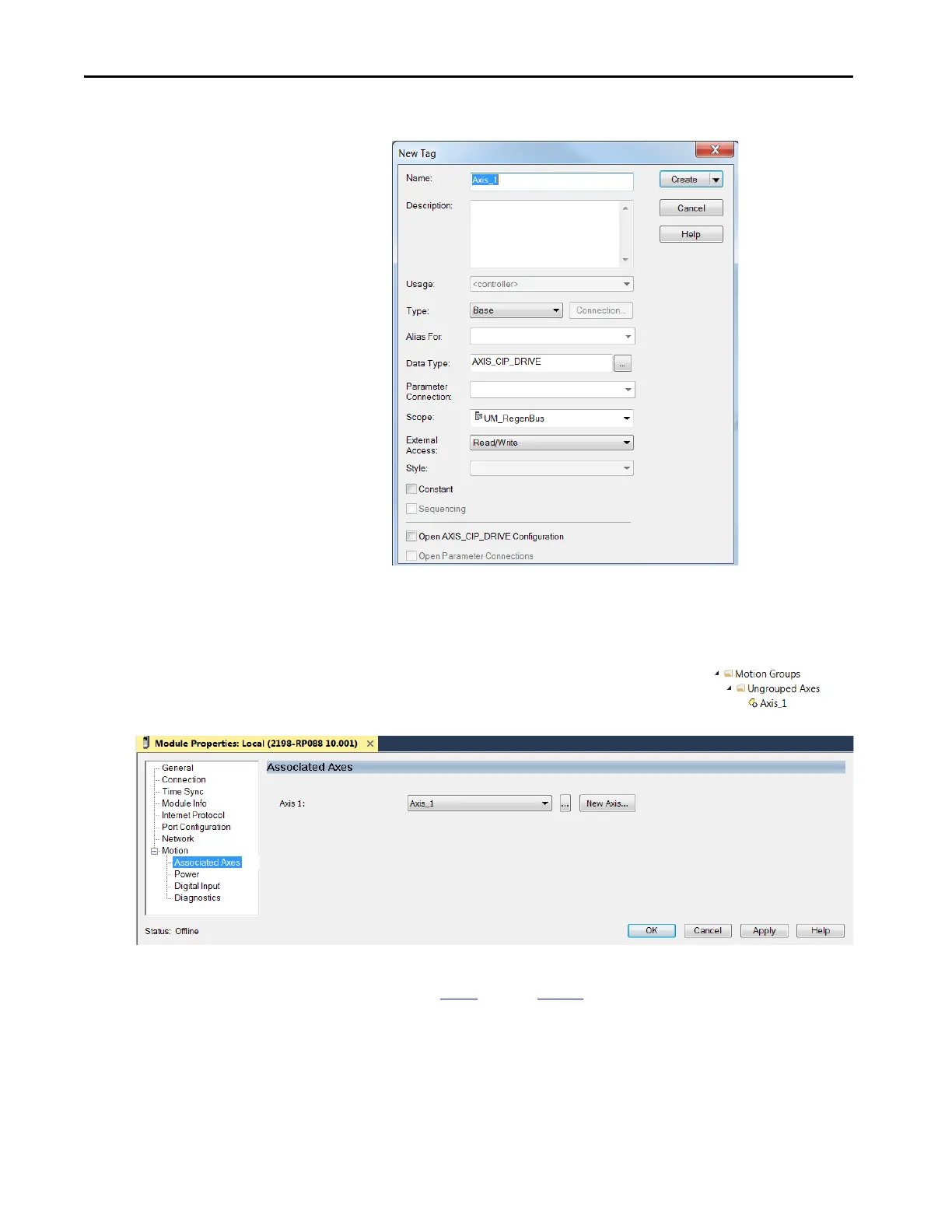

The New Tag dialog box appears.

15. Type the a xis Name.

AXIS_CIP_DRIVE is the default Data Type.

16. Click Create.

The axis (Axis_1 in this example) appears in the

Controller Organizer under Motion Groups>

Ungrouped Axes and is assigned as Axis 1.

17. Click Apply.

18. Repeat step 1

through step 17 if you have more than one 2198-RPxxx

regenerative bus supply.
