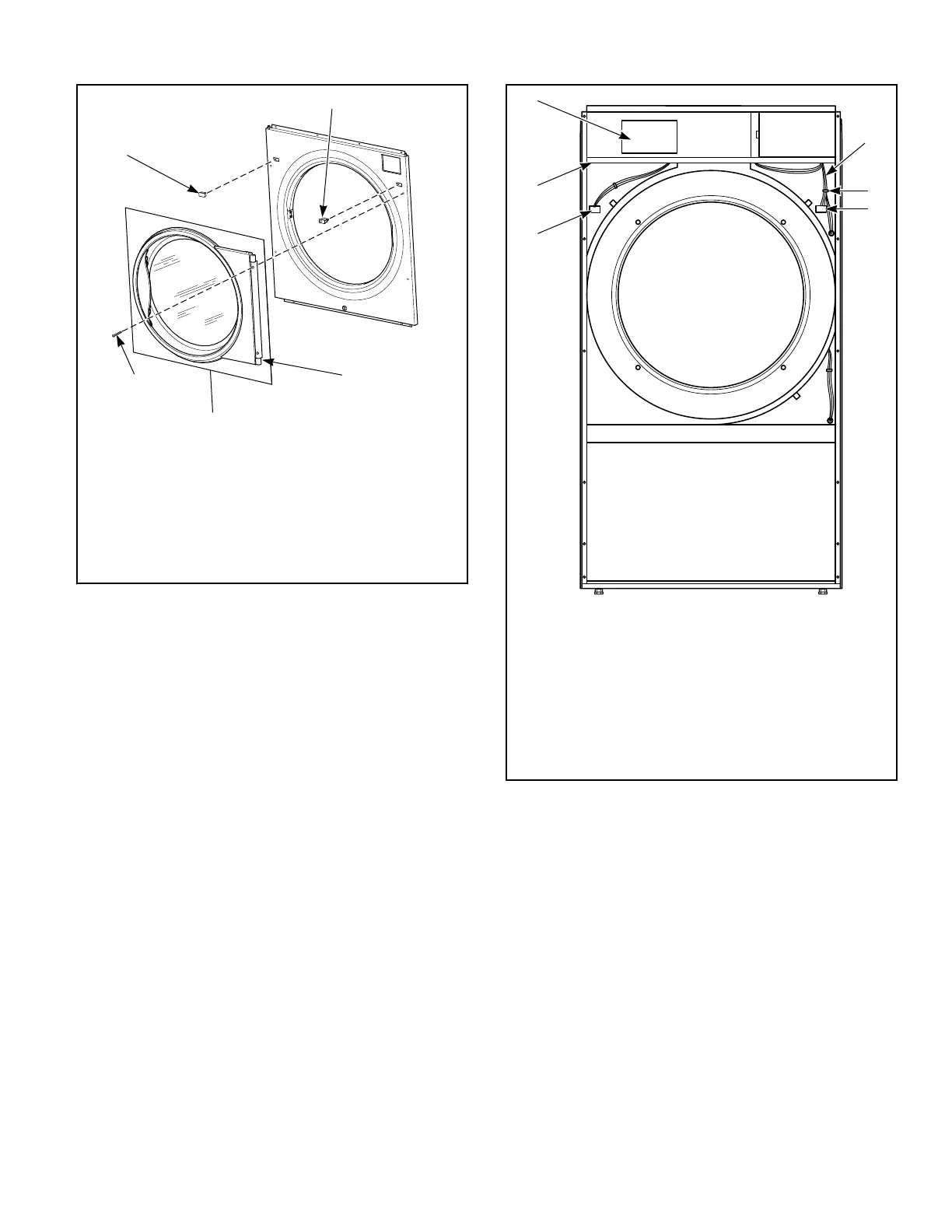

1. Plug
2. Switch
3. Door Hinge Lug
4. Door Assembly
5. Side Screw
Figure 9
7. Cut wire ties to remove door switch harness bundle. Be care-
ful not to damage harness wires. Refer to Figure 10 .
8. Reroute door switch harness up through the hole in the right
side of the top panel. Use the panel cutout opening to then put
harness down through the hole in the left side of the top panel
and into the upper left corner of the cylinder enclosure.
1. Beginning Location of Door Switch
2. Wire Ties
3. Original Switch Location
4. Original Plug Location
5. Top Panel
6. Panel Cutout
Figure 10
9. Place front panel on machine, loosely attach four bottom
screws. Connect door switch harness to switch in new loca-
tion. Install door assembly and four front panel side screws
loosely. Refer to Figure 11 .
10. Check lint panel fit, adjusting front panel up or down as re-
quired. Tighten four front panel side screws to maintain posi-
tion of front panel for proper lint panel clearance.
11. Remove lint panel. Fully tighten bottom screws on front pan-
el.
12. Reinstall top screws and guide lugs.
13. Adjust door catch if necessary to allow 8 – 15 pounds [35.6N
– 66.7N] pull at center of handle.
14. Reinstall control assembly using mounting screws.
15. Reinstall control panel and lint panel.
Installation
©
Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
37 Part No. 70686701ENR4
