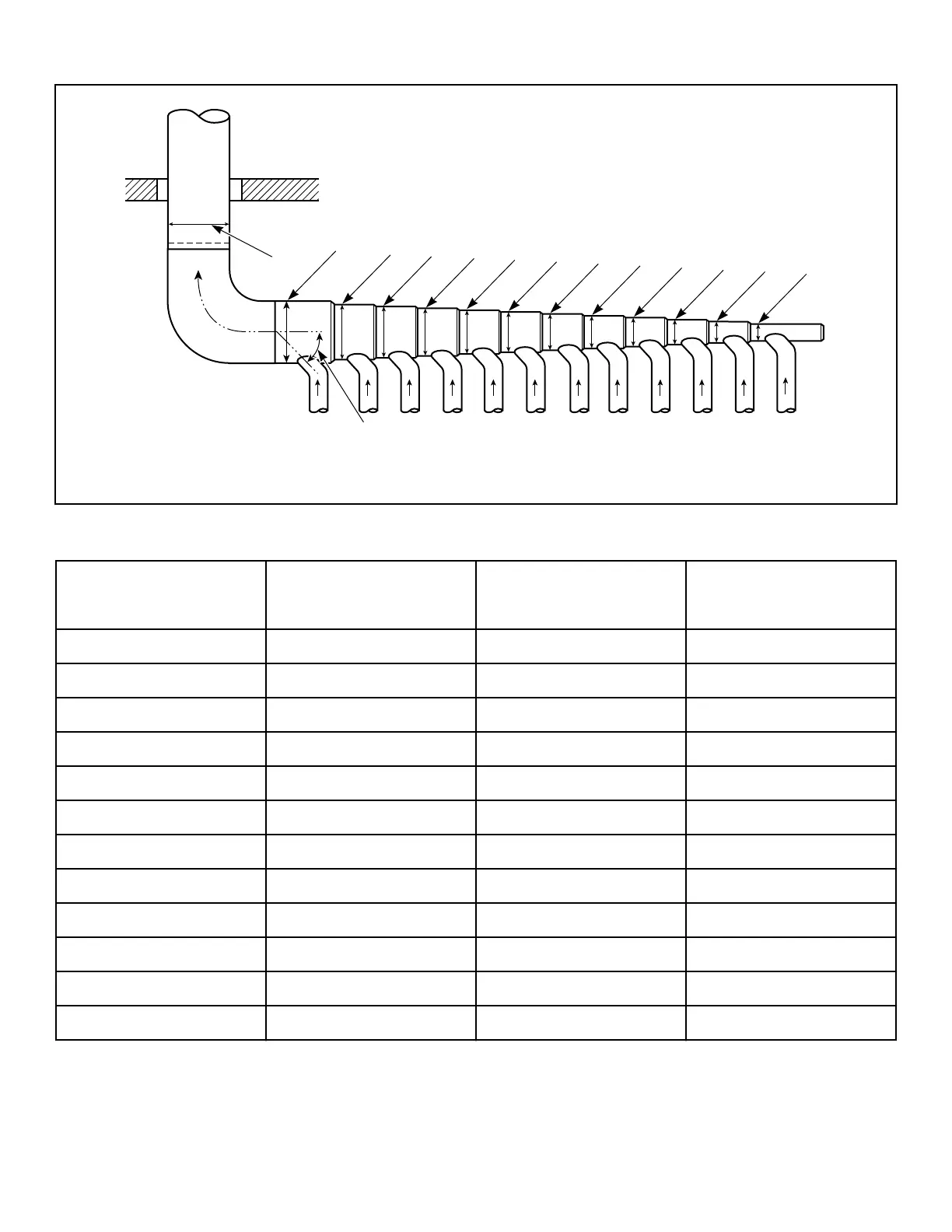

One Manifold Assembly
TMB2403N_SVG
L
K
J
I
H
G
F
E
D
C
B
A
1
2
1. Outlet duct diameter = largest duct diameter based on number of tumble dryers
2. 45° typical
Figure 15
Duct Station
Eco T30 and all 030
Series
035, 055 and Standard
T30 Series T45 Series
A 6 in. [152 mm] 8 in. [203 mm] 10 in. [254 mm]
B 10 in. [254 mm] 12 in. [305 mm] 15 in. [381 mm]
C 12 in. [305 mm] 15 in. [381 mm] 18 in. [457 mm]
D 14 in. [356 mm] 17 in. [432 mm] 21 in. [533 mm]
E 16 in. [406 mm] 19 in. [483 mm] 24 in. [610 mm]
F 18 in. [457 mm] 21 in. [533 mm] 26 in. [660 mm]
G 19 in. [483 mm] 23 in. [584 mm] 28 in. [711 mm]
H 20 in. [508 mm] 24 in. [610 mm] 30 in. [762 mm]
I 22 in. [559 mm] 26 in. [660 mm] 32 in. [813 mm]
J 23 in. [584 mm] 27 in. [686 mm] 33 in. [838 mm]
K 24 in. [610 mm] 28 in. [711 mm] 35 in. [889 mm]
L 25 in. [635 mm] 30 in. [762 mm] 36 in. [914 mm]
Table 13
Exhaust Requirements
©
Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
44 Part No. 70686701ENR4
