NOTE: Table 13 represents tumble dryers with the same
vent size. If multiple vent sizes are used, consult a lo-
cal HVAC specialist.
NOTE: Duct clean-out recommended every 6 feet [0.18
m] .
Two Manifold Assemblies
TMB2018N_SVG
1
2
L L
K K
J J
I
AA
I

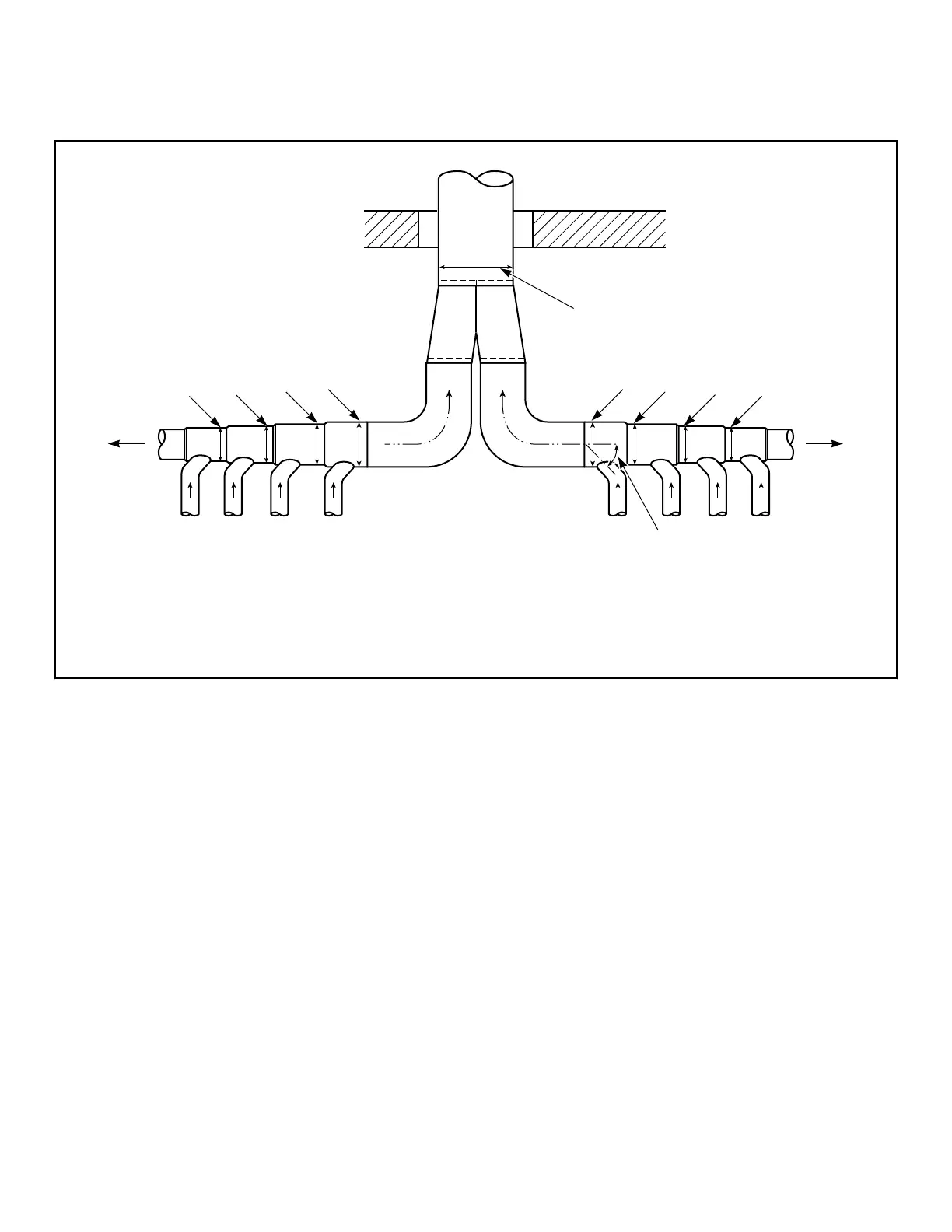

1. Outlet duct diameter = combined largest duct diameter of both sides
2. 45° typical
Figure 16
Refer to Table 13 for measurements for each manifold.
Exhaust Requirements
©
