1. Replace connector post trim piece with open trim.
2. Remove power pole cover.
3. Insert power pole shell into open trim piece.
4. Install J box to power pole shell.
5. Route power harness through corner connector, power pole, and out of J box.
6. Snap power pole cover into shell.
7. Connect wiring within the J box (by a licensed electrician).
8. Install J box cover.
9. Position ceiling tile trim plates above and below the drop-ceiling tiles and secure with screws and nuts, inserted
from below.

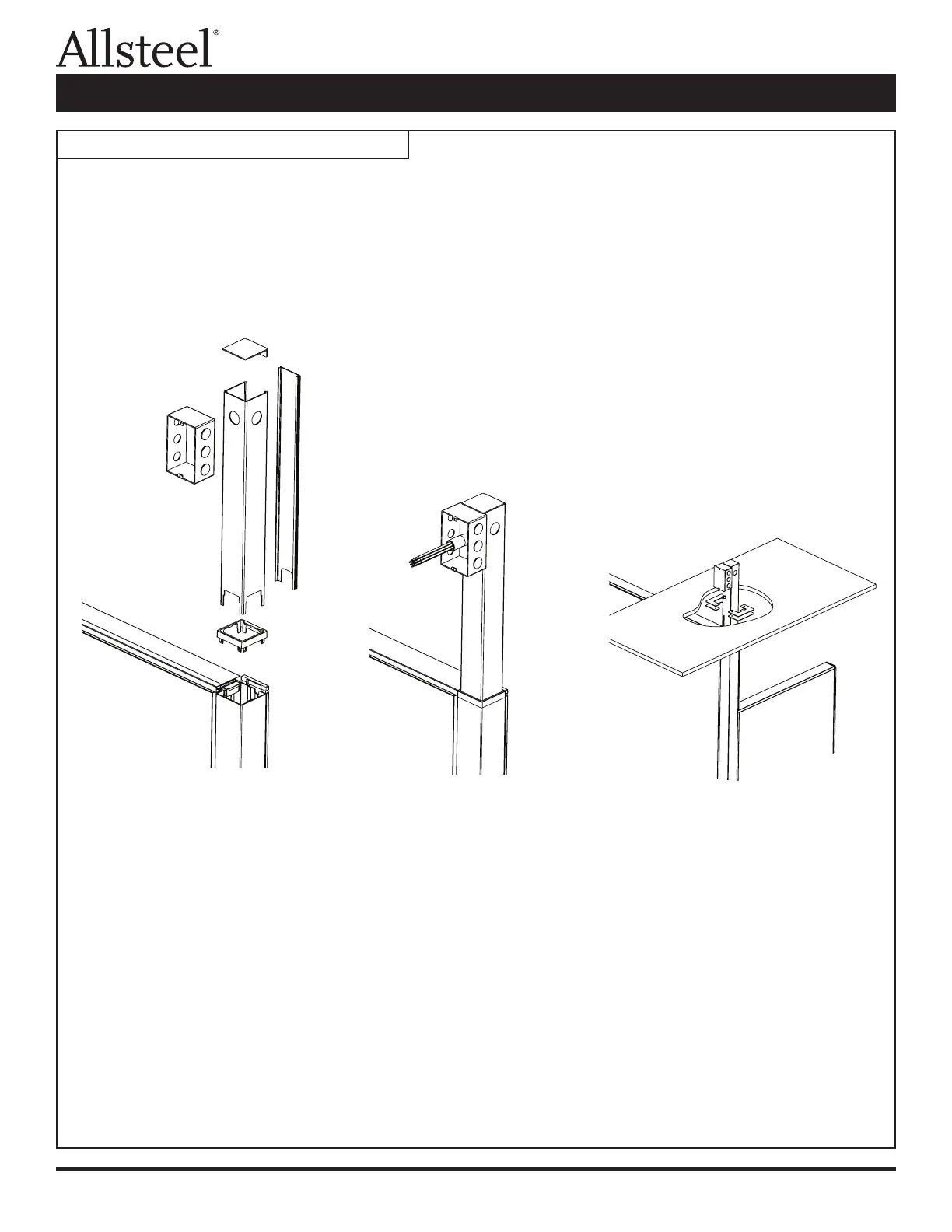

Illustration 1: Optimize Panel Power Pole
Warning
• Connection to the power source should be performed by a licensed electrician in compliance with all national and
local electric codes. Failure to observe this warning could result in a re.
