Terrace DNA Installation Packet
(optional accessory):

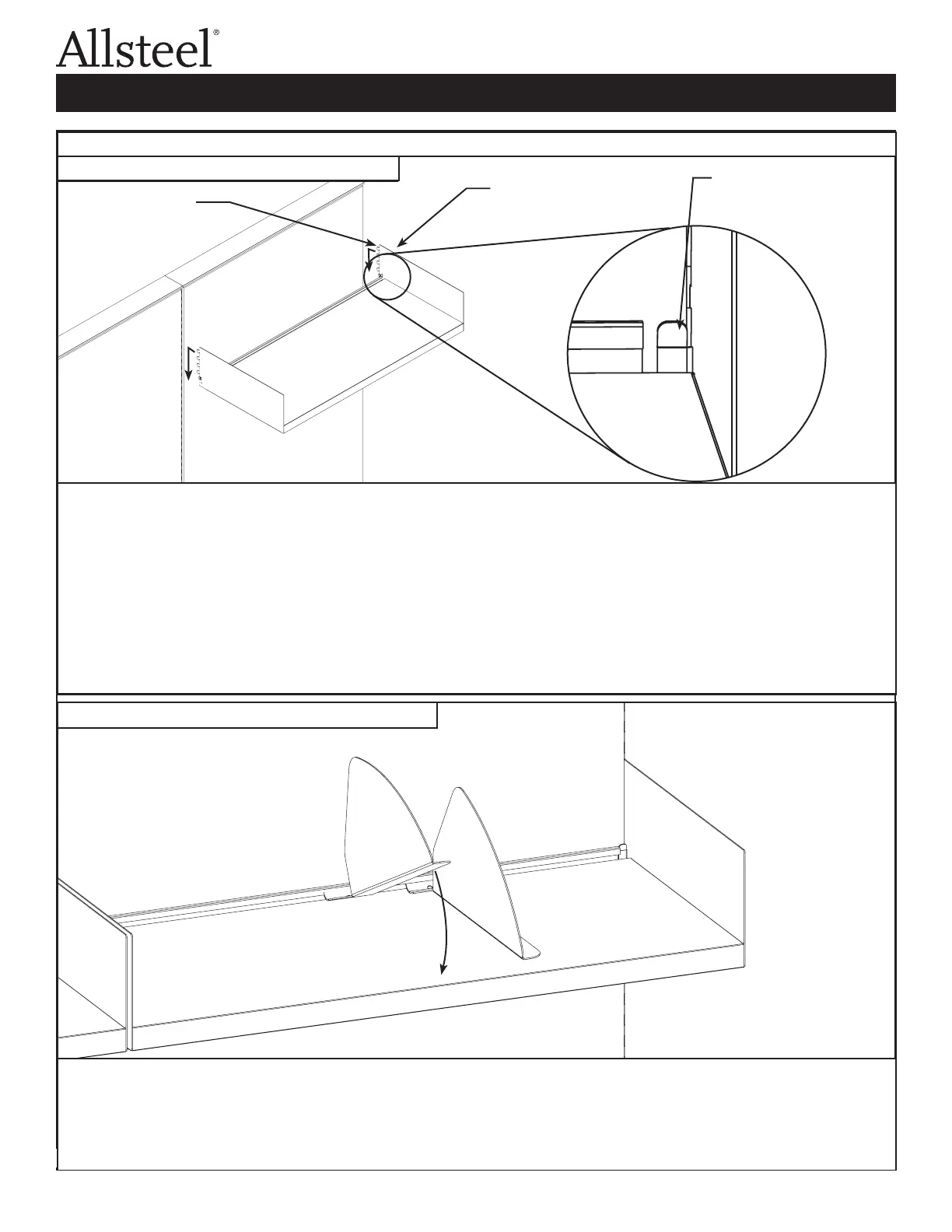

Position shelf divider at an angle, as shown, and insert flange underneath lip of storage shelf back stop.
Rotate shelf divider down into position.
Move shelf divider to the desired position by lifting up on front of divider (approx. 15°) and sliding divider from
side-to-side.
Attach overhead shelf unit to panel by inserting end panel hooks into panel slots.
Tap down on each end panel to fully seat hooks.
Pivot retaining clips toward panel to lock overhead shelf unit in place.
Pull retaining clips away from panel.
Carefully lift overhead shelf unit upward to unseat end panel hooks from panel slots.
Remove overhead shelf unit from panel.
End panel
hooks
Overhead
shelf unit
Retaining clip
(Underneath shelf)
