Allsteel Optimize - Sliding Door Installation; Hook Plate Installation; Hook Bracket Installation

343-3512A (03/13)
22 of 27
Optimize

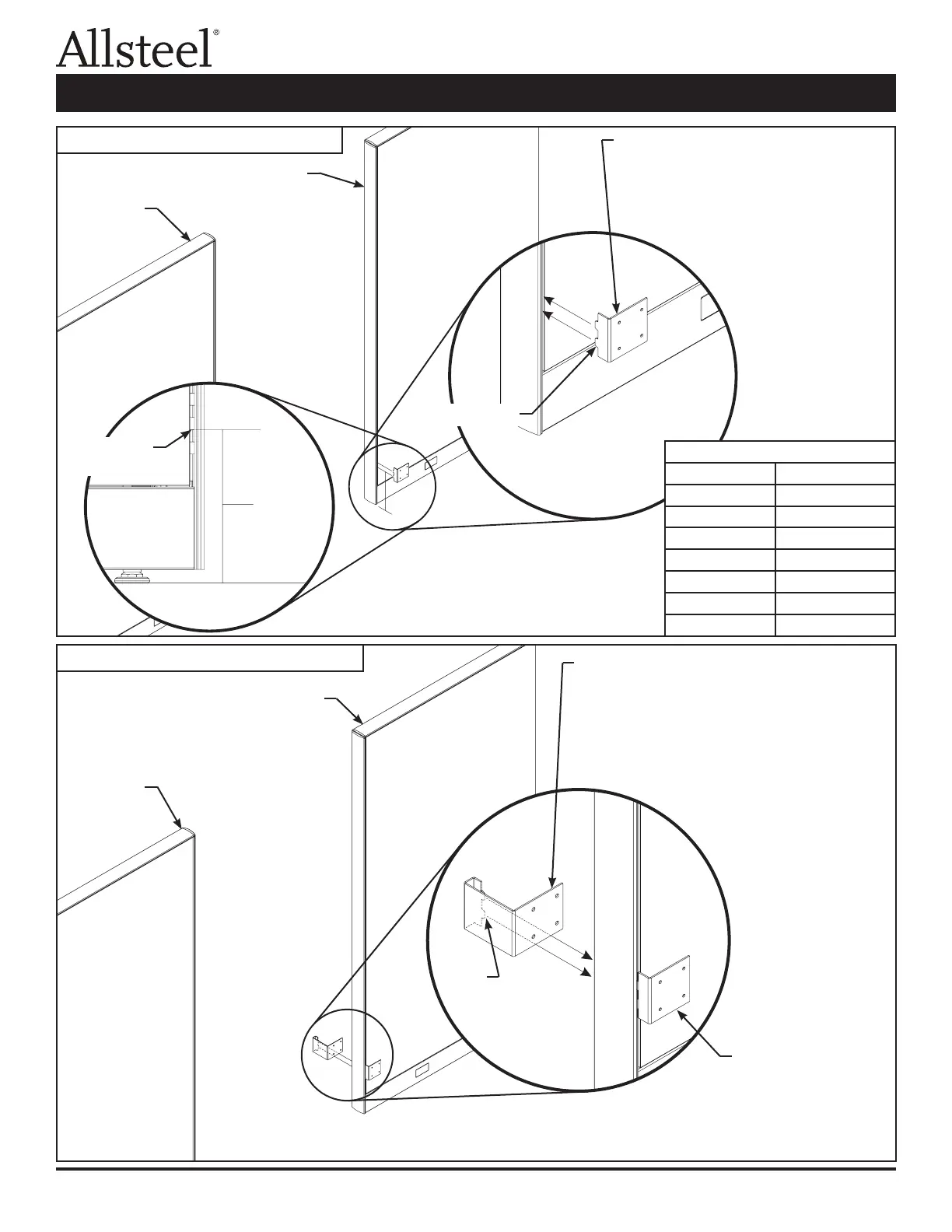

Illustration 1: Hook Plate Installation
Illustration 2: Hook Bracket Installation
36
"
panel run opening
36
"
panel run opening
Hook plate - at panel run opening,
measure up from floor and locate a
panel slot (bottom edge of slot)
between dimensions as defined in
Table 1. Insert bottom tab of hook
plate into panel slot.
Hook bracket - on opposite side of panel
frame and at same height as hook plate,
insert hook bracket tabs into panel slots
and wrap bracket around side of panel
frame. Position hook bracket over hook
plate and align holes in each bracket.
Bottom tab
Tab
Hook plate
X
Panel frame
Bottom of
panel slot
Panel frame
Panel frame
Panel frame
Important - installation of panels must be
completed before installing sliding door
.
Table 1
Panel System “X” Dimension
Concensys X = 7-
3
/
4
" to 8-
3
/
4
"
Terrace 3.4 X = 7-
1
/
8
" to 8-
1
/
8
"
Terrace 2.6 X = 7-
1
/
8
" to 8-
1
/
8
"
Stride X = 7-
3
/
4
" to 8-
3
/
4
"
Align X = 7-
3
/
4
" to 8-
3
/
4
"
Terrace DNA X = 7-
3
/
4
" to 8-
3
/
4
"
Optimize X = 7-
3
/
4
" to 8-
3
/
4
"
Sliding Door Installation
