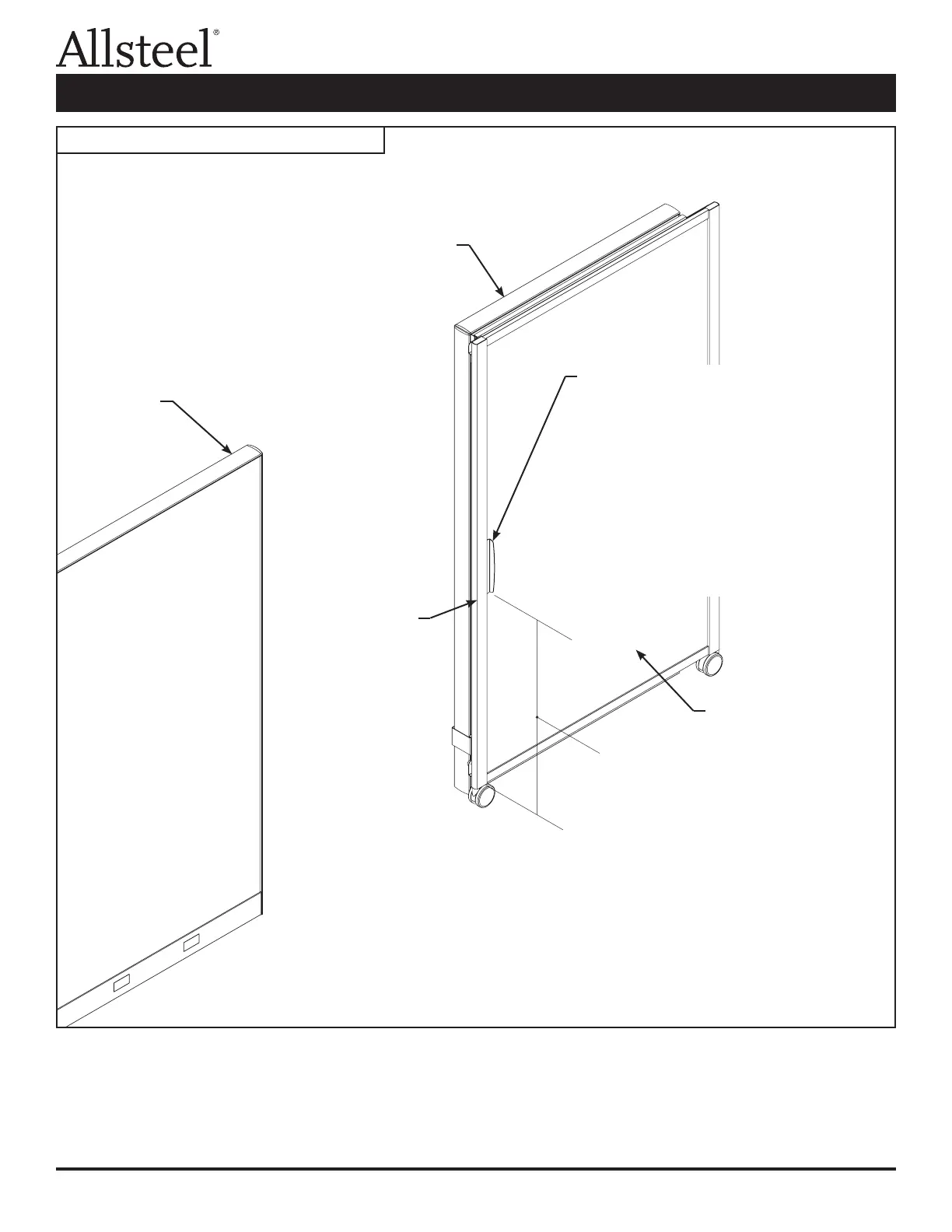

Illustration 10: Install Sliding Door Handle
Door handle - measure up from bottom of door
frame 31
" and use masking tape to mark
location on sliding door. Remove protective
backing from mounting tape on back of door
handle and carefully place handle above
marked location, flat against door frame and
door filler material
.
Repeat procedure to attach second door handle
onto interior side of sliding door (slide door
forward as needed). Ensure second door handle
is positioned directly behind first door handle
(any offset of door handles will show through
door filler material).
Panel frame
Sliding door
frame
Sliding door
filler material
Panel frame
31
"
~
36
"
panel run opening
Step 1 -
Clean the plastic surface with a cleaning solvent
(Glass Cleaner).
Step 2 -
Wipe surface dry.
Step 3 -
Remove tape backer and apply the handle to the
plastic insert surface.
Step 4 -
Apply pressure to the handle to insure proper
adhesion. Bond will be held better if the assembly
is left without use for 12 hours.
