Allsteel Optimize - Overhead Shelf Unit Ganging

343-3512A (03/13)
19 of 27
Optimize
Terrace DNA Installation Packet


(at seam of two inline overhead shelf units):
Installed
overhead
shelf unit
Screw
Overhead shelf
unit bottom flange
Ganging
bracket
Hook ganging bracket over bottom flange of each overhead shelf unit.
Install screw into ganging bracket hole.
Fully tighten screw.
Installed
overhead
shelf unit

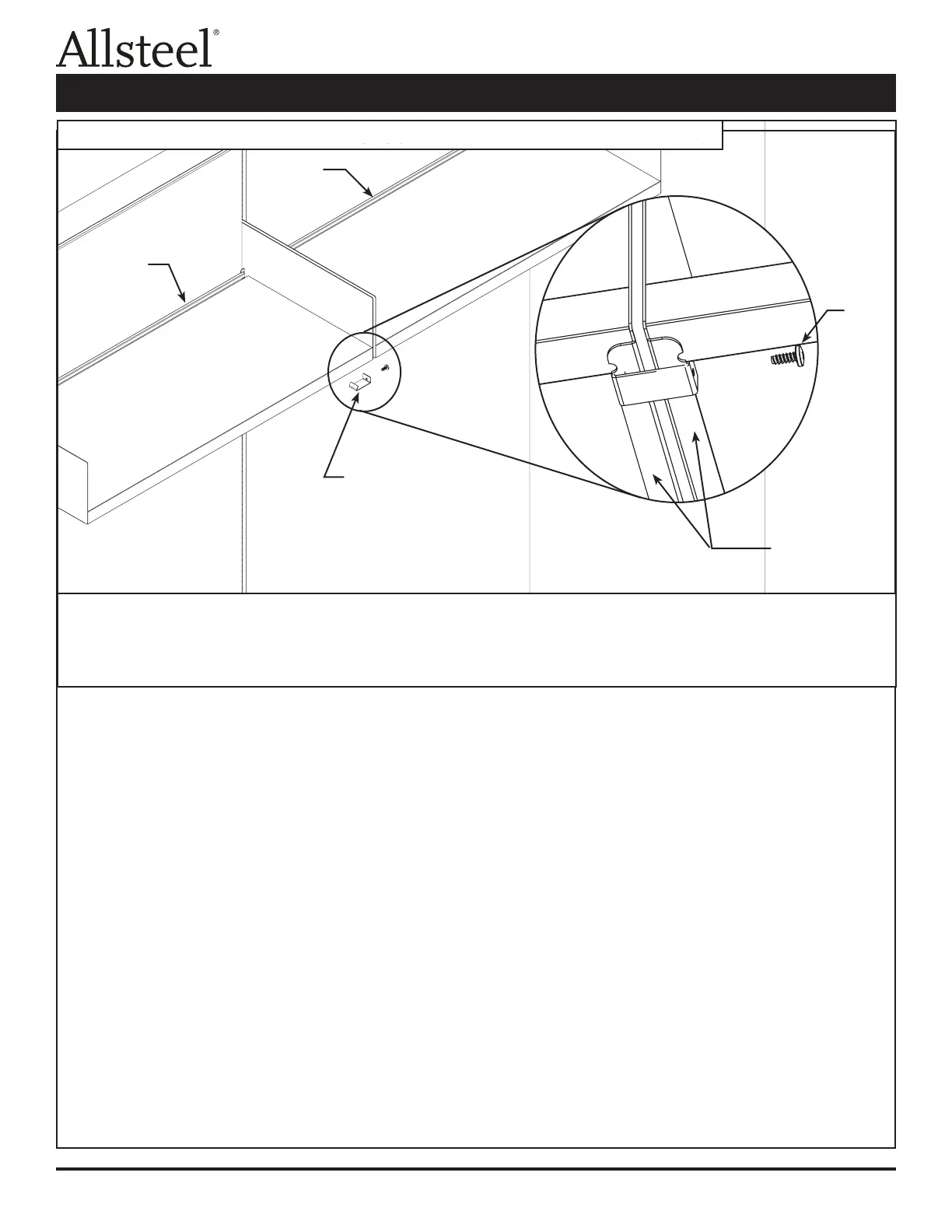

Illustration 3: Overhead Shelf Unit Ganging (at seam of two inline overhead shelf units)
Overhead Storage Installation
