Terrace DNA Installation Packet
15” H Overhead Mounting Brackets - attach
brackets to panel by inserting hooks into
panel slots and pressing down to fully seat
Ensure brackets are positioned evenly
across from each other
15” H Overhead Mounting Brackets
Retaining clip - pivot retaining clips, one
per bracket, towards panel to lock 15“ H
Overhead Mounting Brackets in place

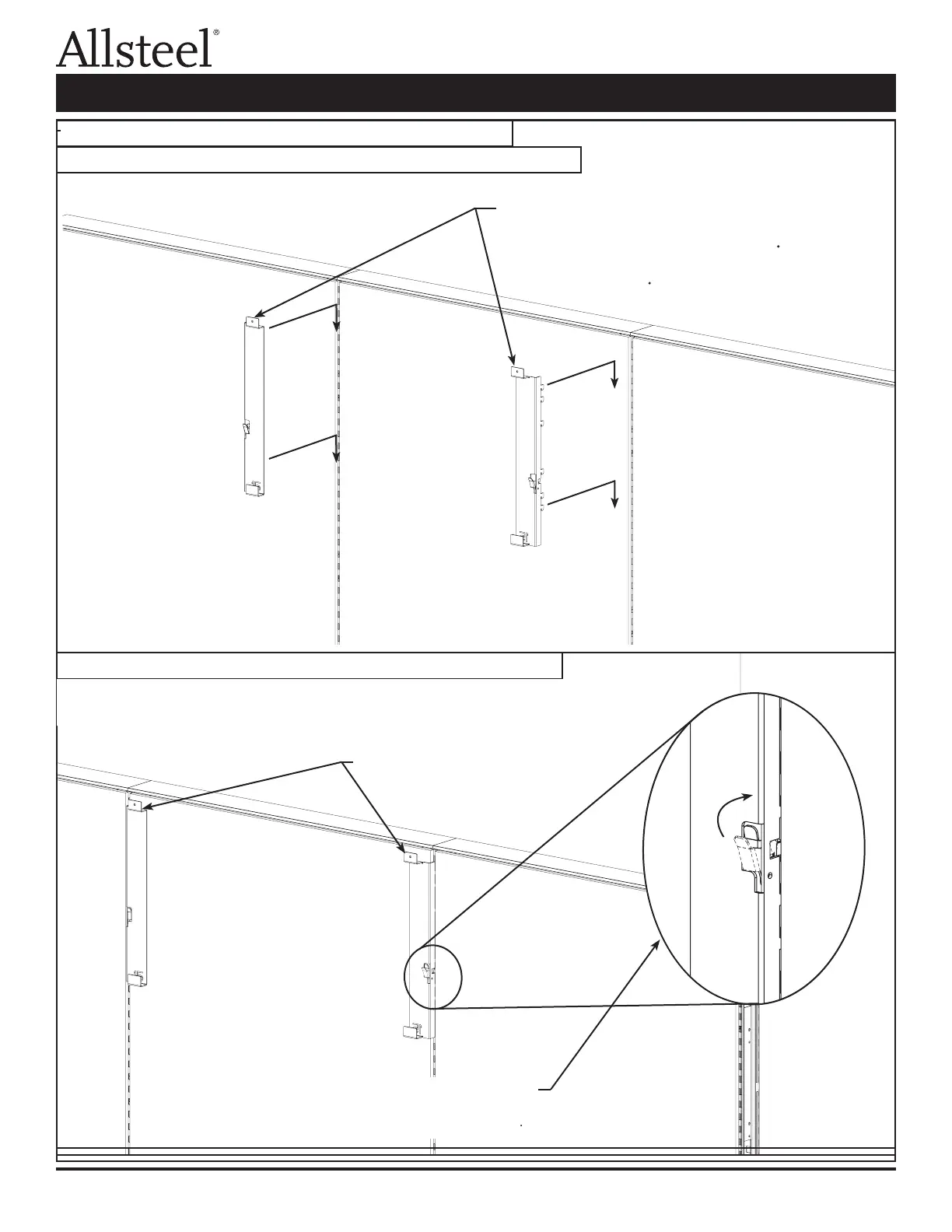

Illustration 4: 15" H Overhead Storage Cabinet Installation
Illustration 4a: Attach 15" H Overhead Mounting Brackets to Panel System
Illustration 4b: Lock 15" H Overhead Mounting Brackets to Panel System
Overhead Storage Installation
