Allsteel Optimize - System Guidelines; Optimize Panel Systems Panel Specifications; Overhead Storage Guidelines

Optimize
343-3512A (03/13)
1 of 27

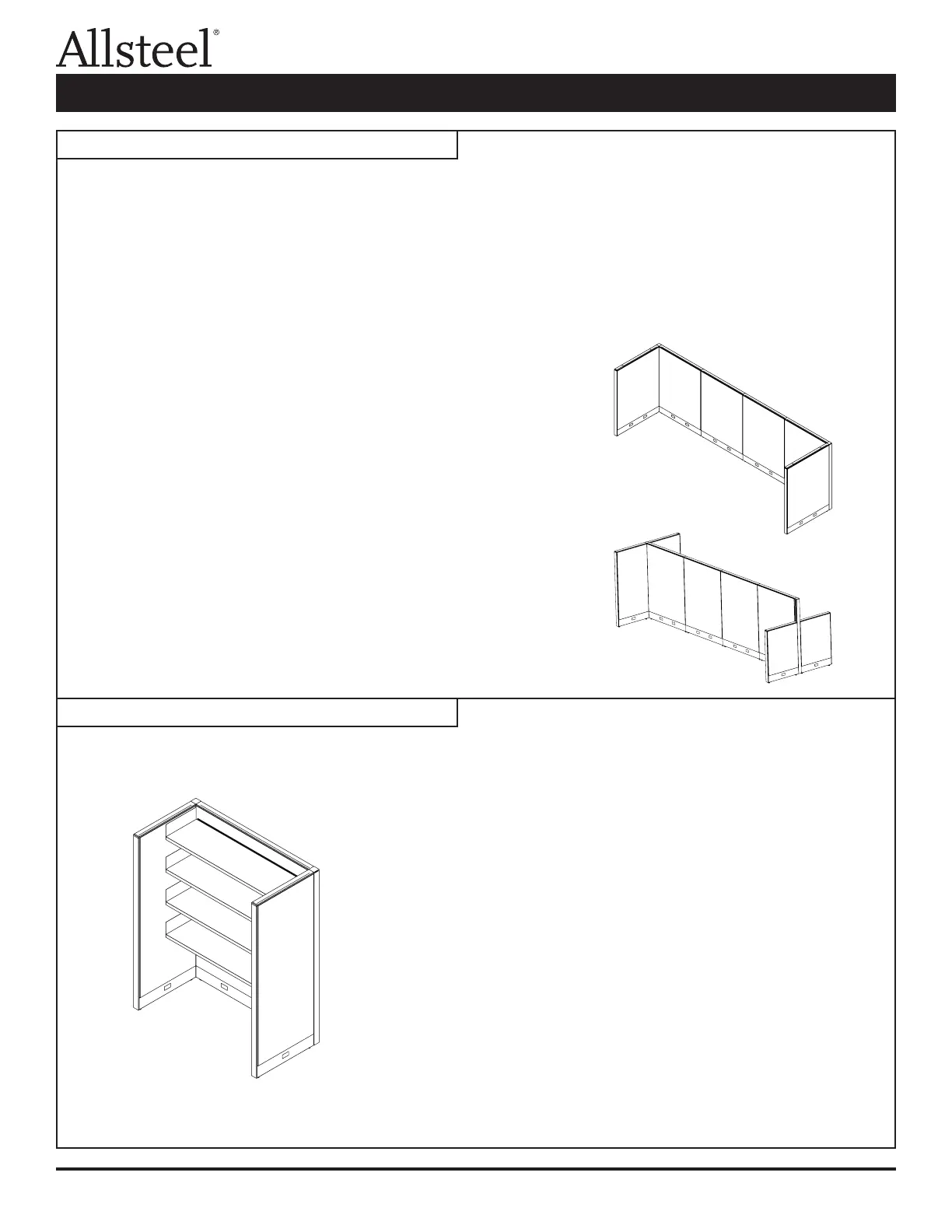

System Guidelines
Denitions:
PARENT PANEL RUN - Panels (or a single panel) congured in a straight line intended to divide space. It is
usually longer than the panels used to stabilize it.
RETURN PANELS - Panels attached to a parent run for the purpose of stabilizing it. Return panels may also
have the effect of dividing space.
NOTE: Return panels must be no more than 30" lower than the maximum height of the parent.
A parent panel run must be a minimum of 48" and a maximum
of 10 feet, and must have at least two return panels totaling
at least 70% of the length of the parent run extended in one
direction (one at the beginning and at the end of the parent run)
as dened below:
X plus Y must total the greater of:
(A) 60% of the parent run length or
(B) 84"
A parent panel run must be a minimum of 48" and a maximum
of 10 feet, and must have a minimum of two return panels
totaling 20% of the length of parent run extended in opposing
directions on each side of the parent run.
Units must be suspended on panels of a corresponding width,
or suspended across two panels with a combined width equal
to the storage unit width. More than two storage units can
be suspended from a single panel only if return panels are
positioned at each end of the storage units.
Optimize Panel Systems Panel Specications
Overhead Storage Guidelines
