Allsteel Optimize - Hang Cantilever Bracket onto Panels; Flat Bracket; Corner Support Bracket

343-3512A (03/13)
15 of 27
Optimize

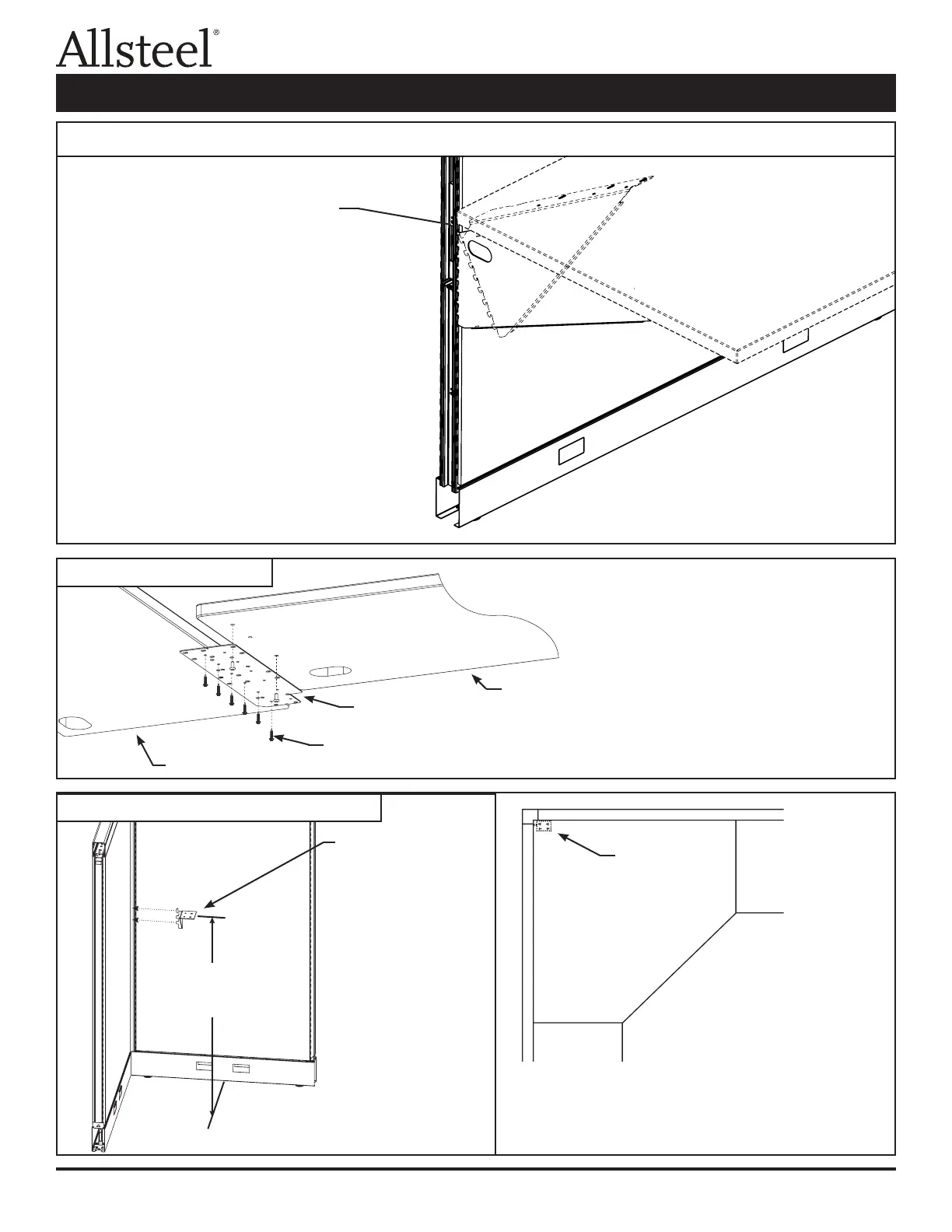

Illustration 6: Hang Cantilever Bracket onto Panels
Install at 27¾"
for a 29½" high
workspace
Step 1 - Tilt the front of the cantilever
bracket up and insert the top
hook into desired slot of panel
frame.
Step 2 - Rotate the cantilever bracket
down so the remaining hooks
engage the slots of the vertical.
Step 3 - Drive the cantilever bracket
down with a rubber mallet to
ensure bracket is rmly seated
in the panel slots.
Step 4 - Install wood screws through the
bracket and into worksurface.
Step 1 - Attach at bracket onto return
worksurface.
Step 2 - Position worksurface/bracket
assembly and secure to primary
worksurface with wood screws.
Corner support
bracket (insert
bracket tabs into
panel notches)
Corner support
bracket
Return/bridge worksurface
43-0176K
Illustration 9. Corner Support Bracket:
Note: To be used at rear of corner worksurfaces.
1. Install corner support bracket onto panel.
2. Position and attach worksurface with wood screws.
Corner support
bracket (insert
bracket tabs into
panel notches)
Corner
support
bracket
CONCENSYS
®
panels
Front of
CONCENSYS
corner worksurface
Install at
27
3
/4" for a
29
1
/2" high
worksurface
1. Attach flat bracket onto return worksurface.
2. Position worksurface/bracket assembly and
secure to primary worksurface
screws.
Illustration 7: Flat Bracket
Illustration 8: Corner Support Bracket
Install at 27¾"
for a 29½" high
worksurface
Primary worksurface (supported at each end)
Wood screws
Notch indicates rear of at bracket
Worksurface Supports Installation
Note: To be used at rear of corner worksurfaces.
Step 1 - Install corner support bracket onto panel.
Step 2 - Position and attach worksurface with wood
screws.
