Allsteel Optimize - Attach Sliding Door to Bottom Track Assembly; Install Front Door Stop

343-3512A (03/13)
26 of 27
Optimize

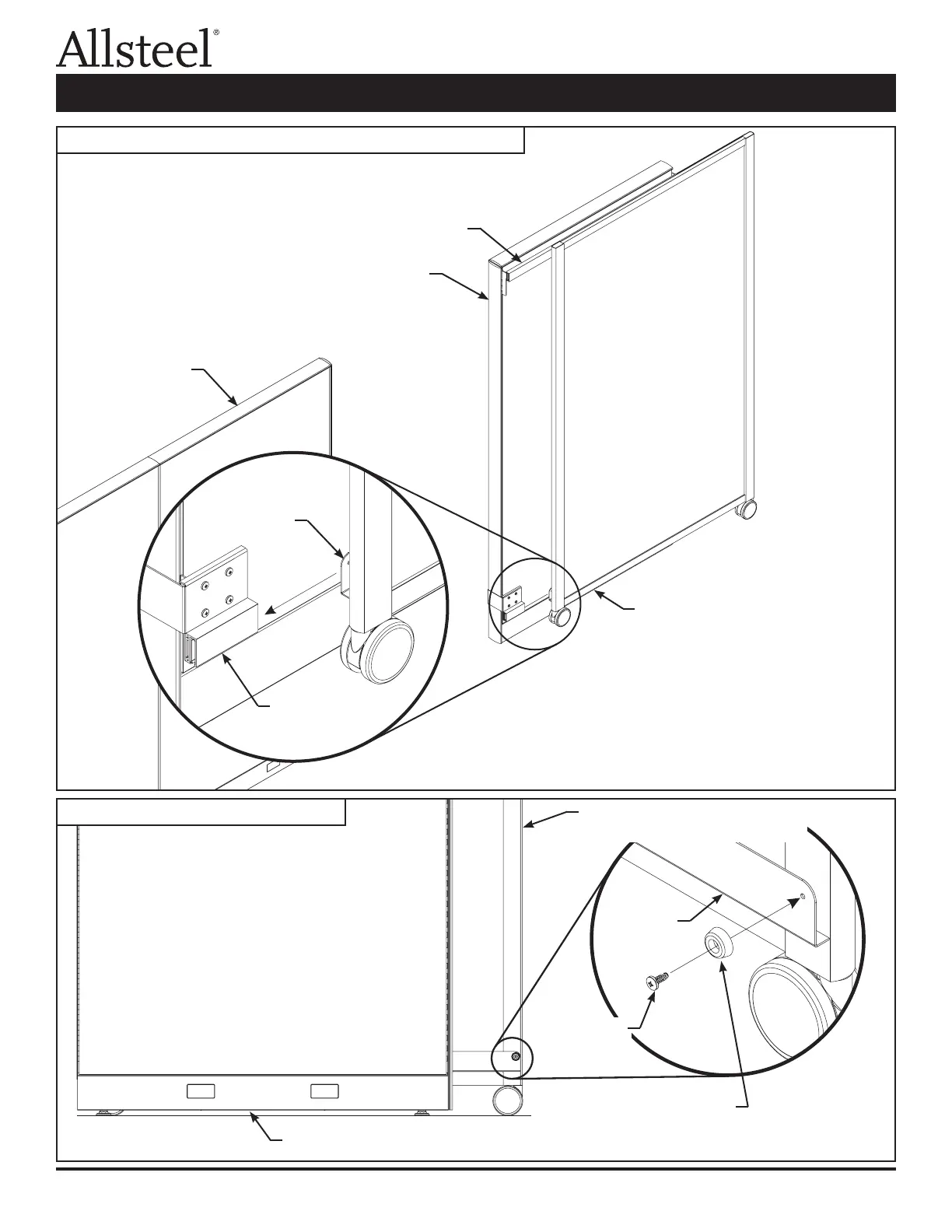

Illustration 8: Attach Sliding Door to Bottom Track Assembly
Illustration 9: Install Front Door Stop
Sliding door - slide door along upper
track assembly until door lower track
blade feeds into bottom track
assembly
.
Lower track
assembly
Upper track assembly
Lower track
blade
Panel frame
Panel frame
Panel frame
Rubber stop - attach rubber
stop to door lower track blade
with screw provided
.
Sliding door - slide door forward to
access front of lower track blade
.
#10 flat head
thread cutting
screw
Lower track
blade
36
"
panel run opening
Sliding Door Installation
