Allsteel Optimize - Attach Bottom Rail Assembly; Attach Anti-Dislodgement Bracket

343-3512A (03/13)
23 of 27
Optimize

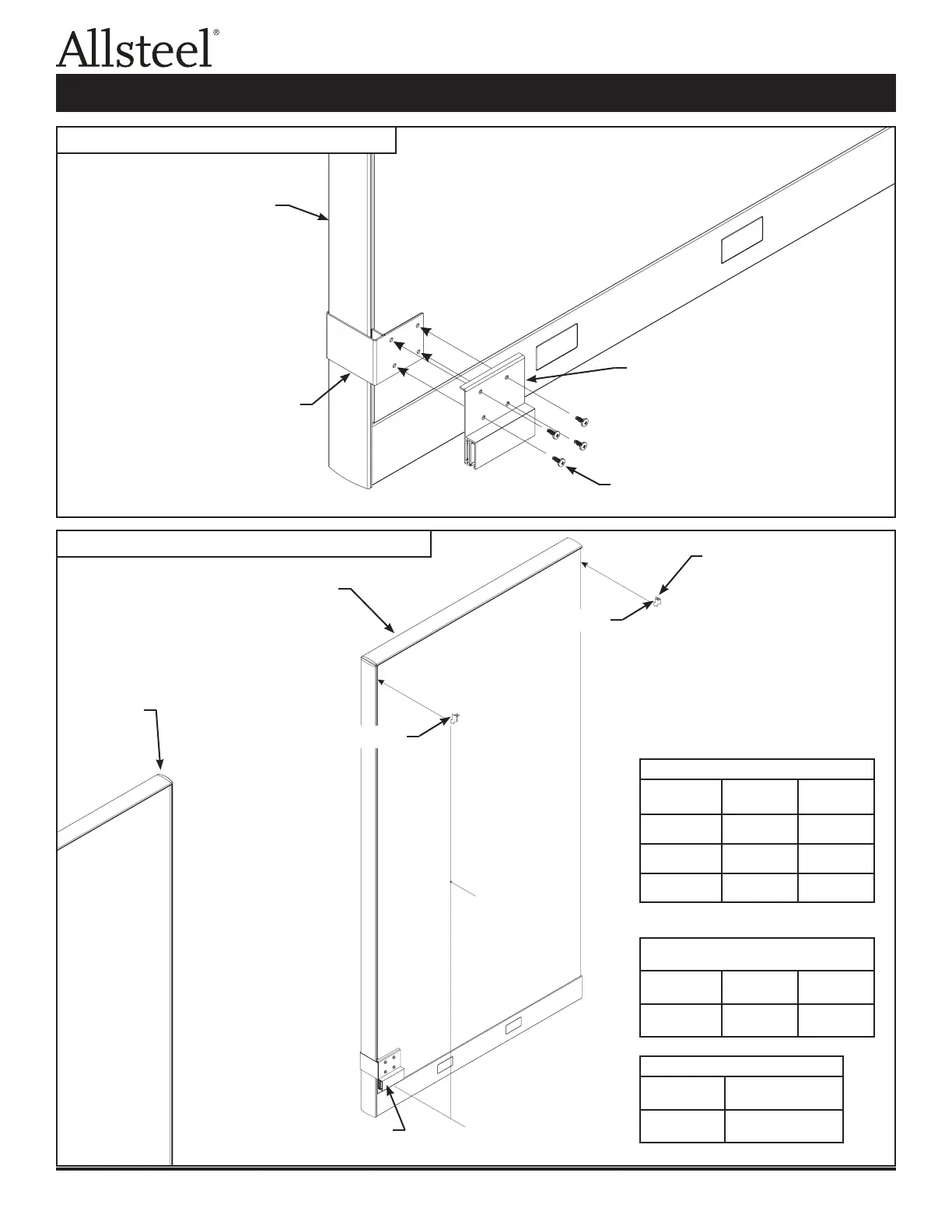

Illustration 3: Attach Bottom Rail Assembly
Illustration 4: Attach Anti-Dislodgement Bracket
Bottom rail assembly - position bottom
rail assembly onto hook bracket and
install four screws (provided) through
bottom rail assembly, hook bracket, and
into hook plate
.
Anti-dislodgement bracket -
measure up from bottom of
bottom rail assembly and
locate a panel slot, on each
end of panel, approximately
the dimension defined in
their appropriate Table listed
below
. Insert bottom tab of
each anti-dislodgement
bracket into panel slots and
pivot bracket toward panel.
Panel frame
Panel frame
Panel frame
Bottom rail
assembly
Hook bracket
#10 flat head thread cutting screw
X
Bottom tab
Bottom tab
36
"
panel run opening
Table 2
Panel
System
69" Tall
Panel
82" Tall
Panel
Concensys X=58-
5
/
8
" X=71-
5
/
8
"
Terrace 3.4 X=62" X=75"
Terrace 2.6 X=62" X=75"
Table 3 (Stride, Terrace, DNA
and Optimize)
50" Tall
Panel
65" Tall
Panel
80" Tall
Panel
X=41-
5
/
8
" X=56-
5
/
8
" X=71-
5
/
8
"
Table 4 (Align)
68" Tall
Panel
84"Tall
Panel
X=59-
5
/
8
" X=75-
5
/
8
"
Sliding Door Installation
