To facilitate ease of configuration of electrical components:
• At least one power harness should be used at a Tee connection, when all 3 panels are powered.
• At least two power harnesses should be used at a Cross connection, when all 4 panels are powered.
• A power harness should be used in a panel positioned at the end of a panel run (See Illustration 3).
• A power harness should be used in a panel, adjacent to a power pole location, into which a ceiling in-feed is to
be connected.
• Power harness should be used in panels adjacent to 20" wide panels.
• When multiple 20" wide panels are used at a Tee or Cross junction, an additional 18" wide pass-thru cable
is required.
Power harness
If panel at the end of a run is powered,
reverse orientation of harness in last panel.
End of panel run
To install receptacle,
place receptacle into
power block and slide
receptacle sideways
until receptacle snaps
into a locked position.
To remove receptacle,
depress locking tab and
slide receptacle sideways
to disengage, then pull
receptacle outward.
Insert a flat blade screwdriver
between locking tab and flange
of mounting bracket; rotate to
depress locking tab and slide
outward.

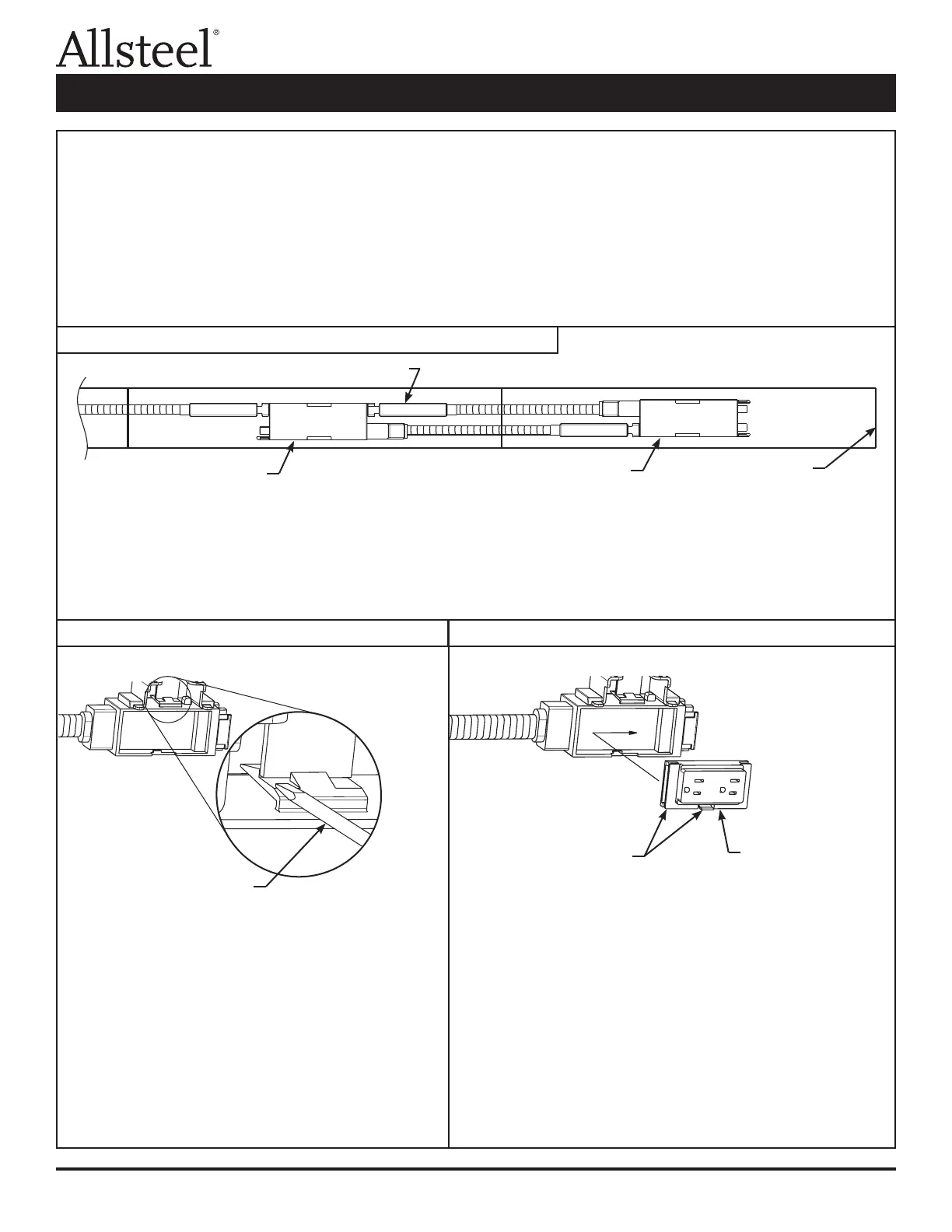

Illustration 3: Powering last panel, at end of panel run
Illustration 4: Power Block Removal Illustration 5: Receptacle Installation/Removal
Power or pass-thru harness
This terminal may be connected or not connected
8 Wire Electrical Installation
