Connections
Connecting to the output terminals
• Use the [MASTER] terminals for balanced output only. Connecting the terminals to
unbalanced inputs (RCA, etc.) with an XLR-RCA conversion cable (conversion adapter),
etc. results in unwanted noises and/or poor sound quality.
• Use the [REC OUT] terminals for unbalanced output (RCA, etc.).
• Use the [BOOTH] terminals for balanced output only. Connecting the terminals to
unbalanced inputs results in unwanted noises and/or poor sound quality.
• Do not connect a power cord from another product or a terminal that can supply phantom
power to the [MASTER] terminals.

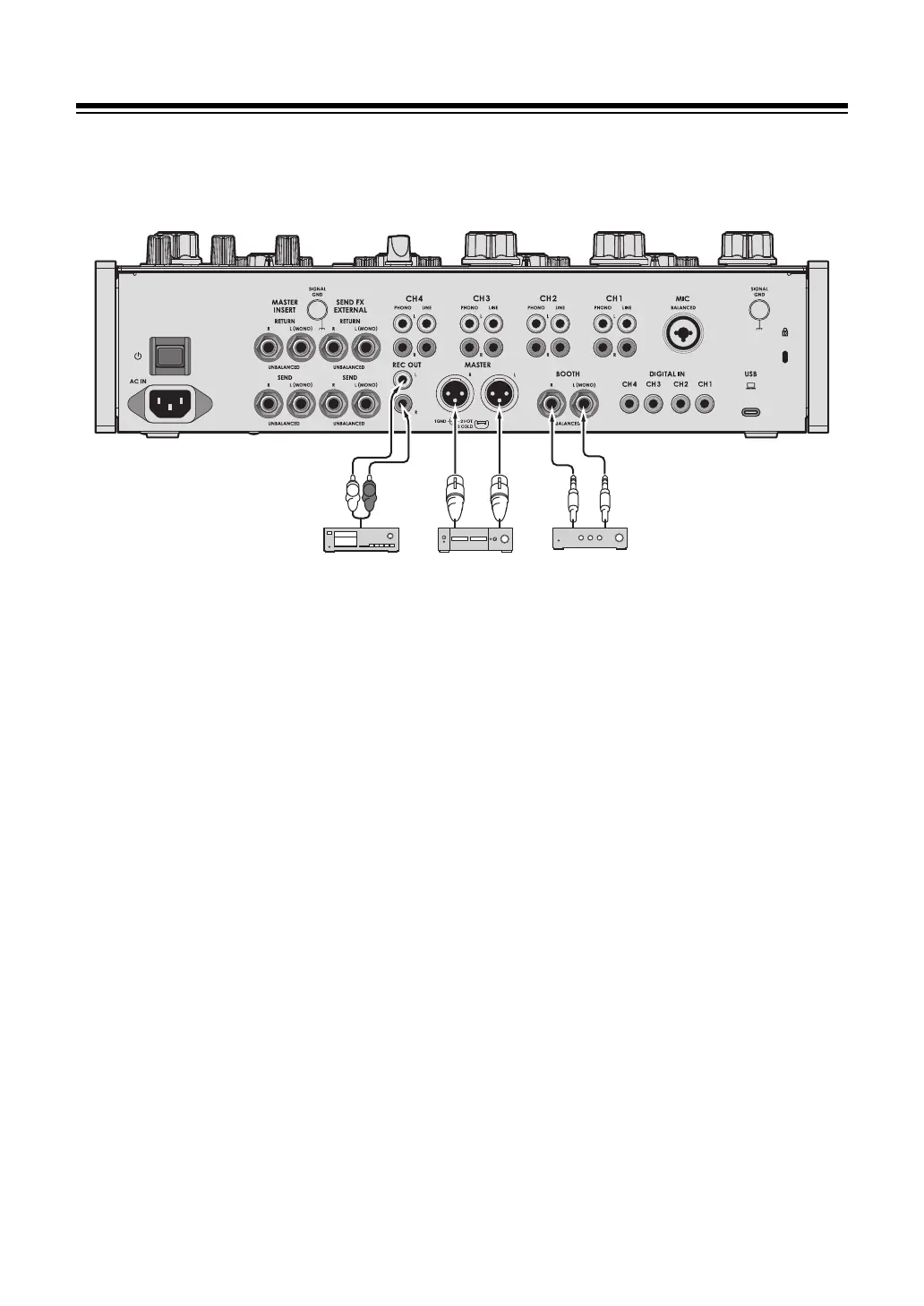

Power amplifier
Analog audio
input device
Power amplifier
(booth monitor)
Rear panel
To Next Page
