Part names

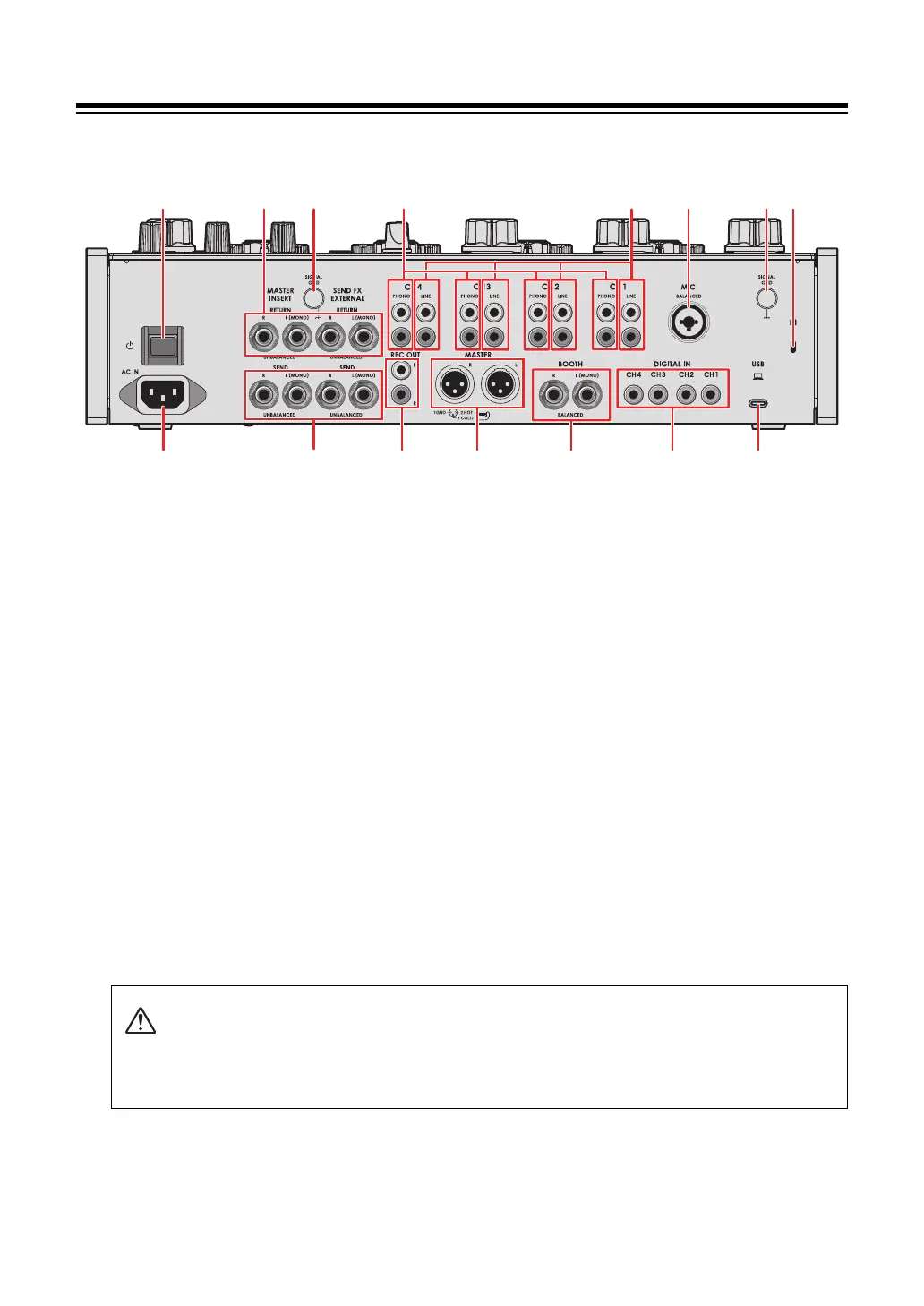

Rear panel
1. 1 button
Turns the unit on and off.
2.
MASTER INSERT/SEND FX EXTERNAL RETURN terminals (1/4”/6.35 mm, TS)
(page 24)
Connect to output terminals on external effects units.
• If you connect a device to the [L (MONO)] terminal only, the sound input to the [L
(MONO)] terminal is also input to the [R] channel.
3.
SIGNAL GND terminal (page 21)
Connect a turntable’s ground wire.
Reduces unwanted noises that occur when a turntable is connected to the unit.
4.
PHONO terminals (RCA) (page 21)
Connect phono-level (MM cartridge) output devices.
• Do not input line-level signals to the terminals.
• Remove the short-circuit pin plugs from the terminals when connecting devices.
When you aren’t using the terminals, attach the short-circuit pin plugs to cut out
external noises.
5.
LINE terminals (RCA) (page 21)
Connect multi players or line-level output devices.
WARNING
Keep the short-circuit pin plugs out of the reach of children and infants. If a part is
accidentally swallowed, contact a doctor immediately.
13 1411 12108 9
1 3 4536 72
