Combitherm® CT PROformance™ and CT Classic Series Installation Manual
#425 - 01/18 DUE TO ONGOING PRODUCT IMPROVEMENT, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. WWW.ALTO-SHAAM.COM
ELECTRICAL - CTP6-10E
(NO CORD, NO PLUG, DEDICATED CIRCUIT REQUIRED)
WITH COMBISMOKER
®
OPTION
ECO **PROpower™ ECO **PROpower™
VOLTAGE PH HZ AWG CONNECTION AMPS kW BREAKER AMPS kW BREAKER AMPS kW BREAKER AMPS kW BREAKER
208 – 240 1* 50/60 6 L1, L2/N, G 37.9 – 43.8 7.9 – 10.5 40 – 50 44.2 – 51.3 9.2 – 12.3 45 – 60 40.4 – 46.6 8.4 – 11.2 40 – 50 46.7 – 54.1 9.7 – 13 50 – 60
208 – 240 3 50/60 8 L1, L2, L3, G 21.9 – 25.3 7.9 – 10.5 25 – 30 28.4 – 32.6 9.2 – 12.3 30 – 35 24.4 – 28.1 8.4 – 11.2 25 – 30 30.9 – 35.5 9.8 – 13 35 – 40
380 – 415 3 50/60 8 L1, L2, L3, N, G 13.4 – 14.6 9 – 10.5 16 20.3 – 22.1 10.3 – 12.3 32 16.1 – 17.5 9.6 – 11.2 16 – 32 22.9 – 25 10.9 – 13 32
440 – 480 3* 50/60 10 – 8 L1, L2, L3, G 11.6 – 12.6 9.1 – 10.5 15 15 – 16.7 10.4 – 12.3 15 – 20 12.9 – 14.1 9.6 – 11.2 15 16.3 – 18.2 11 – 13 20
*ELECTRICAL SERVICE CHARGE APPLIES **NO-COST OPTION ON ELECTRIC MODELS
WEIGHT PAN CAPACITY STANDARD MODEL WITH COMBISMOKER
®
OPTION
NET
SHIP
524 lbs
lbs*
238 kg
276 kg*
FULL–SIZE: 20" x 12" x 2-1/2" Seven (7) Six (6)
GN 1/1: 530 x 325 x 65mm Seven (7) Six (6)
**
HALF–SIZE SHEET
:
18" x 13" x 1" Seven (7) Seven (7)
SHIP DIMENSIONS PRODUCT CAPACITY
(L x W x H) 58" x 45" x 51"*
PRODUCT MAXIMUM 72 lb (33 kg)
(1473mm x 1143mm x 1295mm)*
VOLUME MAXIMUM 45 quarts (57 liters)
* .
.
**ON WIRE SHELVES ONLY. ADDITIONAL WIRE SHELVES REQUIRED FOR MAXIMUM CAPACITY
WATER REQUIREMENTS WATER QUALITY STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY*
ONE (1) TREATED WATER INLET: 3/4" NPT connection. Line pressure 30 psi minimum dynamic and
90 psi maximum static (200 to 600 kPa) at a minimum flow rate of 0.26 gpm (1 L/min).
ONE (1) UNTREATED WATER INLET: 3/4" NPT connection. Line pressure 30 psi minimum dynamic and
90 psi maximum static (200 to 600 kPa) at a minimum flow rate of 2.64 gpm (10 L/min).
* Both inlets can be from same source. Divide using a manifold. Run one side through treatment device before running to oven.
Must meet line pressure and flow rate specifications for both inlets.
WATER DRAIN: 1-1/2" (40mm) connection with a vertical vent to extend above the exhaust vent.
materials must withstand temperatures up to 200°F (93°C).
It is the sole responsibility of the owner/operator/purchaser of this equipment
to verify that the incoming water supply is comprehensively tested and
if required, a means of “water treatment” provided that would meet
compliance requirements with the published water quality standards shown
below. Non-compliance with these minimum standards will potentially
damage this equipment and/or components and void the original equipment
manufacturer’s warranty. Alto-Shaam recommends using OptiPure
®
[www.
optipurewater.com] products to properly treat your water.
Contaminant
Free Chlorine
Hardness
Chloride
pH
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements
Less than 0.1 ppm (mg/L)
30-70 ppm
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 12 ppm (mg/L)
Treated line: 50-125 ppm
Untreated line: 50-360 ppm
CLEARANCE REQUIREMENTS
LEFT:
0" (0mm) 18" (457mm) recommended service access
RIGHT:
0" (0mm) Non-combustible surfaces 2" (51mm) door swing or combustible surfaces
TOP:
20" (508mm) for air movement
BOTTOM:
5-1/8” (130mm) for legs, air aintake
BACK:
4" (102mm) 4-5/16” (109mm) optional plumbing kit
INSTALLATION REQUIREMENTS
• Oven must be installed level. • Hood installation is required.
• Water supply shut-off valve and back-flow preventer when required by local code.

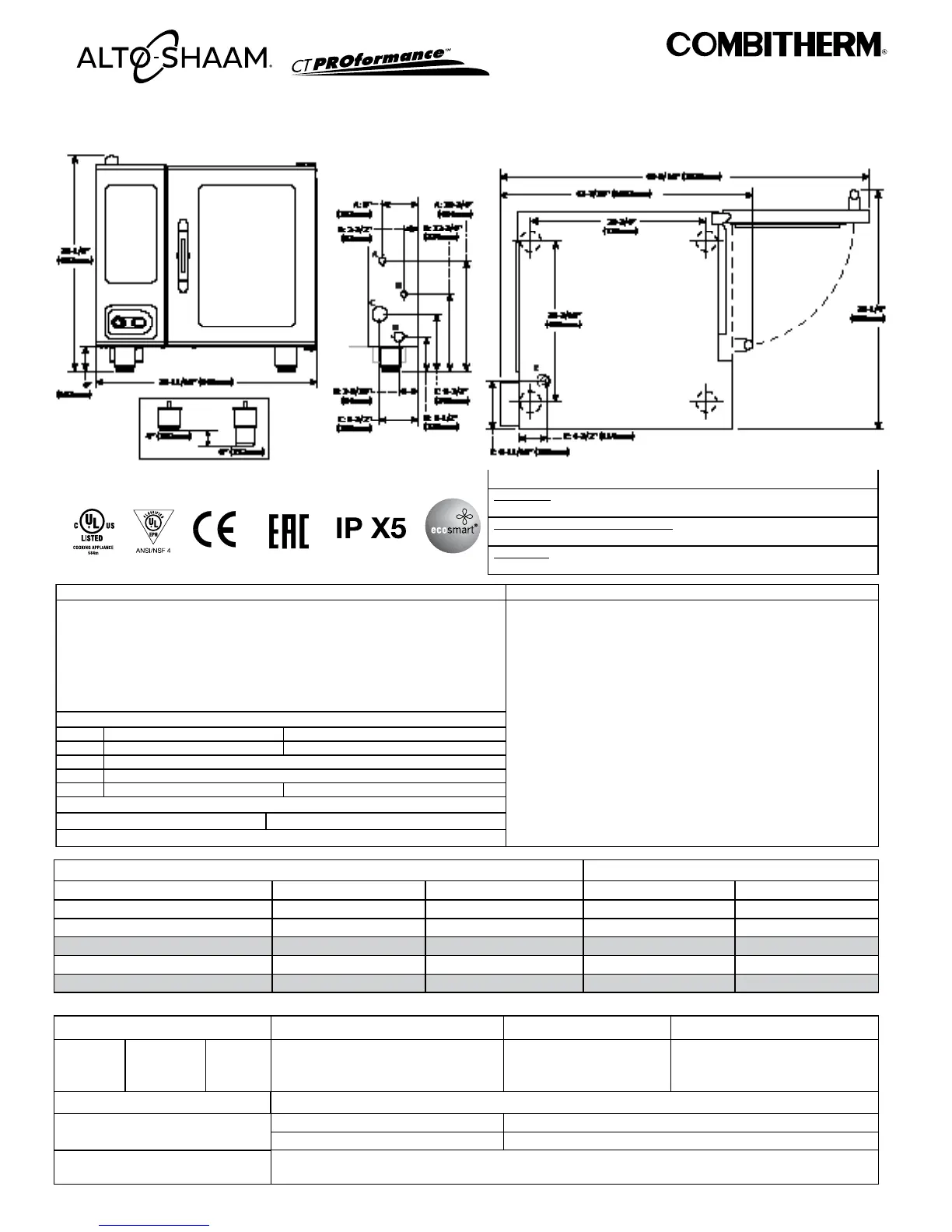

DIMENSIONS: H x W x D
EXTERIOR:
35-1/8" x 35-11/16" x 41-7/16" (892mm x 906mm x 1053mm)
EXTERIOR WITH RECESSED DOOR:
35-1/8" x 40-11/16" x 41-7/16" (892mm x 1033mm x 1053mm)
INTERIOR:
20-1/2" x 16-1/4" x 28-1/16" (520mm x 411mm x 712mm)
CTP6-10E
-
A = Untreated water
B = Treated water
C = Electrical (Back)
D = Water Drain
E = Electrical (Bottom)
Front
Back
Top/Bottom
