MN-35947
•
Rev 15
•
01/18
•

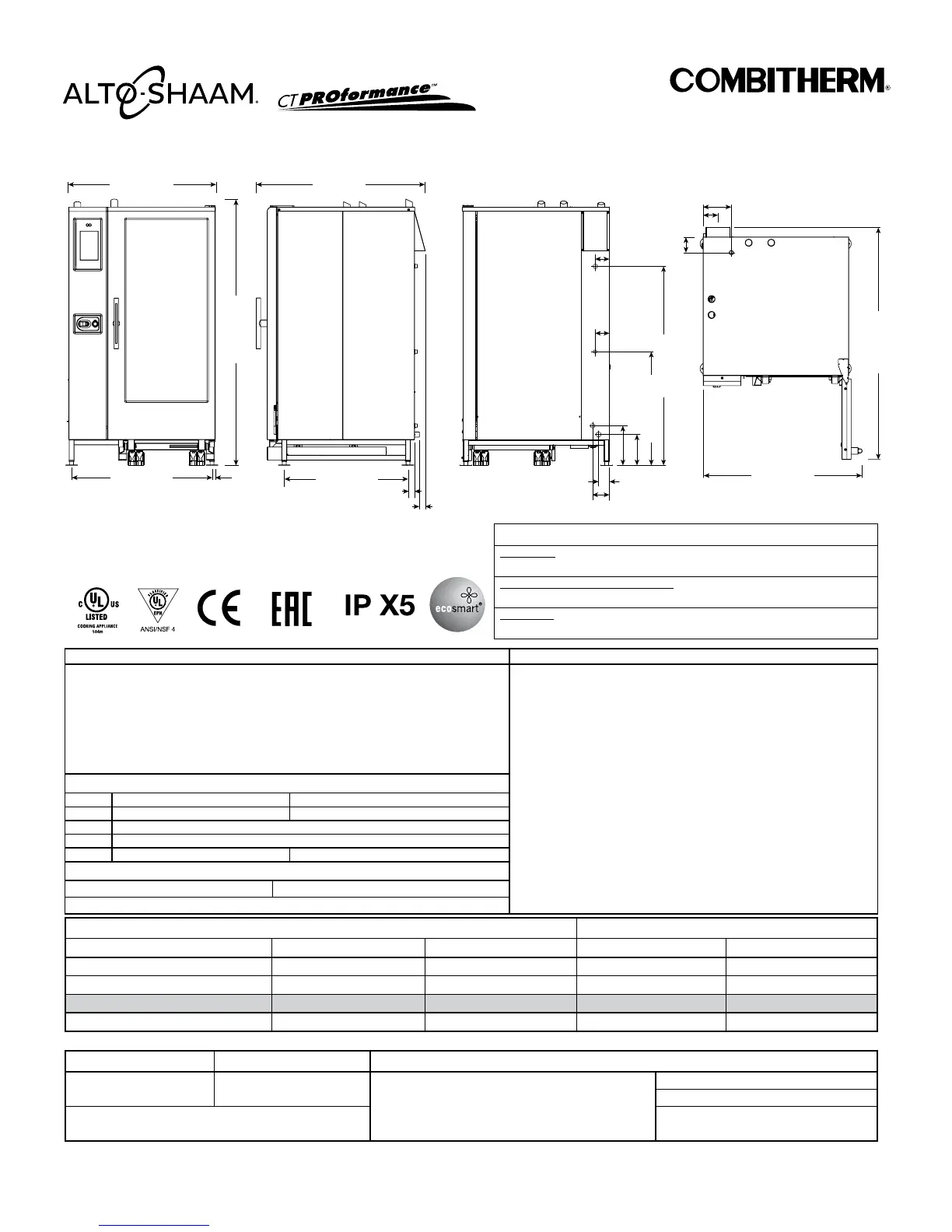

Combitherm® CT PROformance™ and CT Classic Series Installation Manual
#430 - 01/18 DUE TO ONGOING PRODUCT IMPROVEMENT, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. WWW.ALTO-SHAAM.COM
*ELECTRICAL SERVICE CHARGE APPLIES **NO-COST OPTION ON ELECTRIC MODELS
WEIGHT SHIP DIMENSIONS PAN CAPACITY
NET 1100 lbs est 499 kg (L x W x H) 53" x 53" x 87"* FULL–SIZE: 20" x 12" x 2-1/2" Forty (40) PRODUCT MAXIMUM: 480 lb (218 kg)
SHIP 1157 lbs* 525 kg* (1346 x 1346 x 2210mm)* GN 1/1: 530 x 325 x 65mm Forty (40) VOLUME MAXIMUM: 300 quarts (380 liters)
* .
.
GN 2/1: 650 x 530 x 65mm Twenty (20)
** .
**FULL–SIZE SHEET: 18" x 26" x 1" Twenty (20)
ELECTRICAL - CTP20-20E
(NO CORD, NO PLUG, DEDICATED CIRCUIT REQUIRED)
WITH COMBISMOKER
®
OPTION
ECO **PROpower™ ECO **PROpower™
VOLTAGE PH HZ AWG CONNECTION AMPS kW BREAKER AMPS kW BREAKER AMPS kW BREAKER AMPS kW BREAKER
208 – 240 3 50/60 4/0 L1, L2, L3, G 137.6 – 158.8 49.6 – 66 150 – 175 172 – 198.5 57.8 – 77 175 – 200 140.1 – 161.6 50.1 – 66.7 150 – 175 174.5 – 201.3 58.4 – 77.7 200 – 225
380 – 415 3 50/60 1 - 1/0 L1, L2, L3, N, G 84.2 – 91.7 56.4 – 66 100 105.3 – 114.6 64.7 – 77 125 86.9 – 94.5 56.9 – 66.7 100 107.9 – 117.5 65.3 – 77.7 150
440 – 480 3* 50/60 2 – 1 L1, L2, L3, G 72.7 – 79.4 56.5 – 66 80 90.9 – 99.2 64.8 – 77 100 74.1 – 80.8 57.1 – 66.7 80 – 90 92.3 – 100.7 65.4 – 77.7 100
WATER REQUIREMENTS WATER QUALITY STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY*
ONE (1) TREATED WATER INLET: 3/4" NPT connection. Line pressure 30 psi minimum dynamic and
90 psi maximum static (200 to 600 kPa) at a minimum flow rate of 0.80 gpm (3 L/min).
ONE (1) UNTREATED WATER INLET: 3/4" NPT connection. Line pressure 30 psi minimum dynamic and
90 psi maximum static (200 to 600 kPa) at a minimum flow rate of 2.64 gpm (10 L/min).
* Both inlets can be from same source. Divide using a manifold. Run one side through treatment device before running to oven.
Must meet line pressure and flow rate specifications for both inlets.
WATER DRAIN: 1-1/2" (40mm) connection with a vertical vent to extend above the exhaust vent.
materials must withstand temperatures up to 200°F (93°C).
It is the sole responsibility of the owner/operator/purchaser of this equipment
to verify that the incoming water supply is comprehensively tested and
if required, a means of “water treatment” provided that would meet
compliance requirements with the published water quality standards shown
below. Non-compliance with these minimum standards will potentially
damage this equipment and/or components and void the original equipment
manufacturer’s warranty. Alto-Shaam recommends using OptiPure
®
[www.
optipurewater.com] products to properly treat your water.
Contaminant
Free Chlorine
Hardness
Chloride
pH
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements
Less than 0.1 ppm (mg/L)
30-70 ppm
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 12 ppm (mg/L)
Treated line: 50-125 ppm
Untreated line: 50-360 ppm
CLEARANCE REQUIREMENTS
LEFT:
0" (0mm) 18" (457mm) recommended service access
RIGHT:
0" (0mm) Non-combustible surfaces 2" (51mm) door swing or combustible surfaces
TOP:
20" (508mm) for air movement
BOTTOM:
5-1/8” (130mm) for legs, air aintake
BACK:
4" (102mm) 4-5/16” (109mm) optional plumbing kit
INSTALLATION REQUIREMENTS
• Oven must be installed level. • Hood installation is required.
• Water supply shut-off valve and back-flow preventer when required by local code.
DIMENSIONS: H x W x D
EXTERIOR:
79-1/4" x 43-3/4" x 47" (2012mm x 1111mm x 1192mm)
EXTERIOR WITH RECESSED DOOR:
79-1/4" x 48-3/4" x 47" (2012mm x 1238mm x 1192mm)
INTERIOR:
60-7/16" x 24-1/4" x 32-3/4" (1535mm x 616mm x 832mm)
CTP20-20E
-
C (at bottom of oven)
47-7/8" (1215mm)
47" (1192mm)
43-3/4" (1111mm)
B
A
E
33-9/16" (852mm)
1-15/16" (49mm)
41-7/8" (1063mm)
1" (24mm)
79-1/4" (2012mm)
4-1/2" (114mm)
4-1/4" (108mm)
7-15/16" (202mm)
D
59-1/4" (1504mm)
33-13/16" (858mm)
11-13/16" (299mm)
9-3/16" (233mm)
B
D
A
E
3-1/4" (81mm)
4-3/16"
(106mm)
4-1/8" (105mm)
5" (126mm)
1-11/16" (42mm)
73-5/8" (1869mm)
A= UNTREATED WATER
B= TREATED WATER
C= ELECTRICAL
D= GAS
E= WATER DRAIN
