MN-35947
•
Rev 15
•
01/18
•
Combitherm® CT PROformance™ and CT Classic Series Installation Manual
•
35
#440 - 01/18 DUE TO ONGOING PRODUCT IMPROVEMENT, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. WWW.ALTO-SHAAM.COM
ELECTRICAL
(NO CORD, NO PLUG, DEDICATED CIRCUIT REQUIRED)
MODEL VOLTAGE PH HZ AMPS kW BREAKER AWG CONNECTION
CTC10-20E
208 – 240 3 50/60 68.8 – 79.4 24.8 – 33.0 70-80 2 – 1 L1, L2, L3, G
380 – 415 3 50/60 42.1 – 45.8 28.2 – 33.0 63 4 – 3 L1, L2, L3, N, G
440 – 480 3* 50/60 36.4 – 39.7 28.3 – 33.0 40 6 – 4 L1, L2, L3, G
*ELECTRICAL SERVICE CHARGE APPLIES
WEIGHT SHIP DIMENSIONS PAN CAPACITY
NET 760 lbs est 345 kg (L x W x H) 56" x 49" x 65"* FULL–SIZE: 20" x 12" x 2-1/2" Twenty-two (22)
PRODUCT MAXIMUM: 240 lb (109 kg)
SHIP 805 lbs* 365 kg* (1422 x 1245 x 1651mm)* GN 1/1: 530 x 325 x 65mm Twenty-two (22)
VOLUME MAXIMUM: 150 quarts (190 liters)
* .
.
GN 2/1: 650 x 530 x 65mm Eleven (11)
** .
**FULL–SIZE SHEET: 18" x 26" x 1" Eleven (11)
WATER REQUIREMENTS WATER QUALITY STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY*
ONE (1) TREATED WATER INLET: 3/4" NPT connection. Line pressure 30 psi minimum dynamic and
90 psi maximum static (200 to 600 kPa) at a minimum flow rate of 0.53 gpm (2 L/min).
ONE (1) UNTREATED WATER INLET: 3/4" NPT connection. Line pressure 30 psi minimum dynamic and
90 psi maximum static (200 to 600 kPa) at a minimum flow rate of 2.64 gpm (10 L/min).
* Both inlets can be from same source. Divide using a manifold. Run one side through treatment device before running to oven.
Must meet line pressure and flow rate specifications for both inlets.
WATER DRAIN: 1-1/2" (40mm) connection with a vertical vent to extend above the exhaust vent.
materials must withstand temperatures up to 200°F (93°C).
It is the sole responsibility of the owner/operator/purchaser of this equipment
to verify that the incoming water supply is comprehensively tested and
if required, a means of “water treatment” provided that would meet
compliance requirements with the published water quality standards shown
below. Non-compliance with these minimum standards will potentially
damage this equipment and/or components and void the original equipment
manufacturer’s warranty. Alto-Shaam recommends using OptiPure
®
[www.
optipurewater.com] products to properly treat your water.
Contaminant
Free Chlorine
Hardness
Chloride
pH
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements
Less than 0.1 ppm (mg/L)
30-70 ppm
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 12 ppm (mg/L)
Treated line: 50-125 ppm
Untreated line: 50-360 ppm
CLEARANCE REQUIREMENTS
LEFT:
0" (0mm) 18" (457mm) recommended service access
RIGHT:
0" (0mm) Non-combustible surfaces 2" (51mm) door swing or combustible surfaces
TOP:
20" (508mm) for air movement
BOTTOM:
5-1/8” (130mm) for legs, air aintake
BACK:
4" (102mm) 4-5/16” (109mm) optional plumbing kit
INSTALLATION REQUIREMENTS
• Oven must be installed level. • Hood installation is required.
• Water supply shut-off valve and back-flow preventer when required by local code.

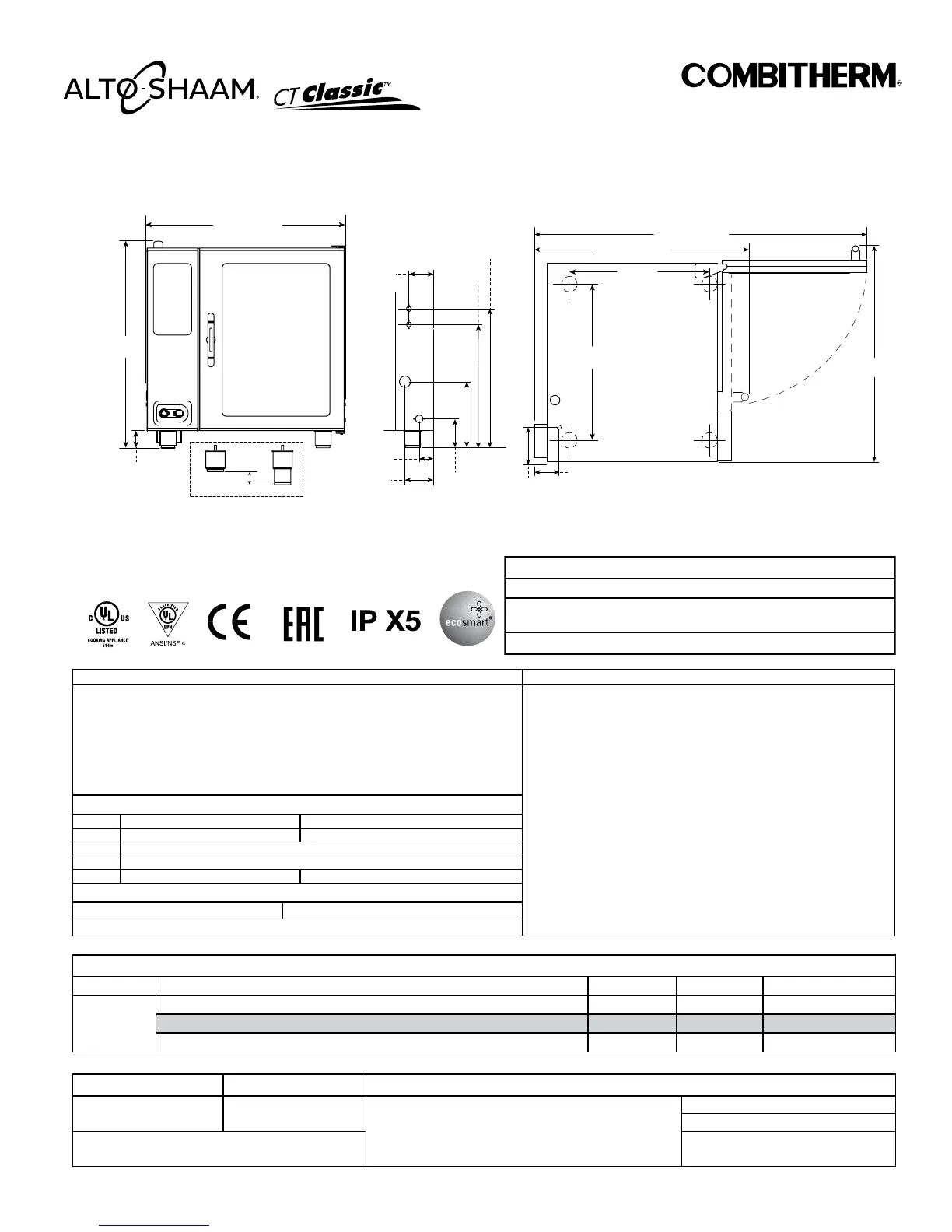

DIMENSIONS: H x W x D
EXTERIOR: 45-11/16" x 43-3/4" x 46-3/16" (1160mm x 1111mm x 1173mm)
EXTERIOR WITH RECESSED DOOR:
45-11/16" x 48-3/4" x 46-3/16" (1160mm x 1238mm x 1173mm)
INTERIOR:
31-1/2" x 24-1/4" x 32-3/4" (800mm x 616mm x 832mm)
CTC10-20E
-
B
E
C
D
A
6" (152mm)
4" (102mm)
C: 6-1/2"
(165mm)
D: 3-5/16"
(84mm)
D: 5-5/8"
(143mm)
B: 26-3/4"
(679mm)
C: 13-15/16"
(354mm)
C: 21-1/4"
(539mm)
A: 30-3/16"
(766mm)
A,B: 5-5/8"
(143mm)
43-3/4" (1111mm)
4"
(102mm)
45-11/16"
(1160mm)
E: 6-11/16" (168mm)
E: 5-3/8" (136mm)
73 5/16" (1863mm)
46-3/16" (1173mm)
30-13/16"
(783mm)
34-1/4"
(870mm)
47-7/16"
(1205mm)
A = Treated water
B = Untreated water
C = Electrical (Back)
D = Water Drain
E = Electrical (Bottom)
Front
Back
Top/Bottom
