Combitherm® CT PROformance™ and CT Classic Series Installation Manual
#429 - 01/18 DUE TO ONGOING PRODUCT IMPROVEMENT, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. WWW.ALTO-SHAAM.COM
ELECTRICAL - CTP20-10E (NO CORD, NO PLUG, DEDICATED CIRCUIT REQUIRED) WITH COMBISMOKER
®
OPTION
ECO **PROpower™ ECO **PROpower™
VOLTAGE PH HZ AWG CONNECTION AMPS kW BREAKER AMPS kW BREAKER AMPS kW BREAKER AMPS kW BREAKER
208 – 240 3 50/60 1 – 1/0 L1, L2, L3, G 78.8 – 90.9 28.4 – 37.8 80 – 90 98.8 – 114 33.2 – 44.2 100 – 125 81.3 – 93.8 28.9 – 38.5 90 – 100 101.3 – 116.9 33.7 – 44.9 110 – 125
380 – 415 3 50/60 4 – 3 L1, L2, L3, N, G 48.2 – 52.5 32.3 – 37.8 63 60.5 – 65.8 37.1 – 44.2 63 – 80 50.9 – 55.4 32.8 – 38.5 63 63.1 – 68.7 37.7 – 44.9 100
440 – 480 3* 50/60 6 – 4 L1, L2, L3, G 41.7 – 45.5 32.4 – 37.8 50 52.2 – 57 37.2 – 44.2 60 43 – 46.9 32.9 – 38.5 50 53.6 – 58.5 37.8 – 44.9 60
*ELECTRICAL SERVICE CHARGE APPLIES **NO-COST OPTION ON ELECTRIC MODELS
WEIGHT SHIP DIMENSIONS PAN CAPACITY
NET 905 lbs est 411 kg
(L x W x H) 56" x 45" x 87"*
FULL–SIZE: 20" x 12" x 2-1/2" Twenty (20)
PRODUCT MAXIMUM: 240 lb (109 kg)
SHIP 1052 lbs* 477 kg* (1422 x 1143 x 2210mm)*
GN 1/1: 530 x 325 x 65mm Twenty (20)
VOLUME MAXIMUM: 150 quarts (190 liters)
* .
.
**HALF-SIZE SHEET: 18" x 13" x 1" Twenty (20)
** .
WATER REQUIREMENTS WATER QUALITY STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY*
ONE (1) TREATED WATER INLET: 3/4" NPT connection. Line pressure 30 psi minimum dynamic and
90 psi maximum static (200 to 600 kPa) at a minimum flow rate of 0.80 gpm (3 L/min).
ONE (1) UNTREATED WATER INLET: 3/4" NPT connection. Line pressure 30 psi minimum dynamic and
90 psi maximum static (200 to 600 kPa) at a minimum flow rate of 2.64 gpm (10 L/min).
* Both inlets can be from same source. Divide using a manifold. Run one side through treatment device before running to oven.
Must meet line pressure and flow rate specifications for both inlets.
WATER DRAIN: 1-1/2" (40mm) connection with a vertical vent to extend above the exhaust vent.
materials must withstand temperatures up to 200°F (93°C).
It is the sole responsibility of the owner/operator/purchaser of this equipment
to verify that the incoming water supply is comprehensively tested and
if required, a means of “water treatment” provided that would meet
compliance requirements with the published water quality standards shown
below. Non-compliance with these minimum standards will potentially
damage this equipment and/or components and void the original equipment
manufacturer’s warranty. Alto-Shaam recommends using OptiPure
®
[www.
optipurewater.com] products to properly treat your water.
Contaminant
Free Chlorine
Hardness
Chloride
pH
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements
Less than 0.1 ppm (mg/L)
30-70 ppm
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 12 ppm (mg/L)
Treated line: 50-125 ppm
Untreated line: 50-360 ppm
CLEARANCE REQUIREMENTS
LEFT:
0" (0mm) 18" (457mm) recommended service access
RIGHT:
0" (0mm) Non-combustible surfaces 2" (51mm) door swing or combustible surfaces
TOP:
20" (508mm) for air movement
BOTTOM:
5-1/8” (130mm) for legs, air aintake
BACK:
4" (102mm) 4-5/16” (109mm) optional plumbing kit
INSTALLATION REQUIREMENTS
• Oven must be installed level. • Hood installation is required.
• Water supply shut-off valve and back-flow preventer when required by local code.

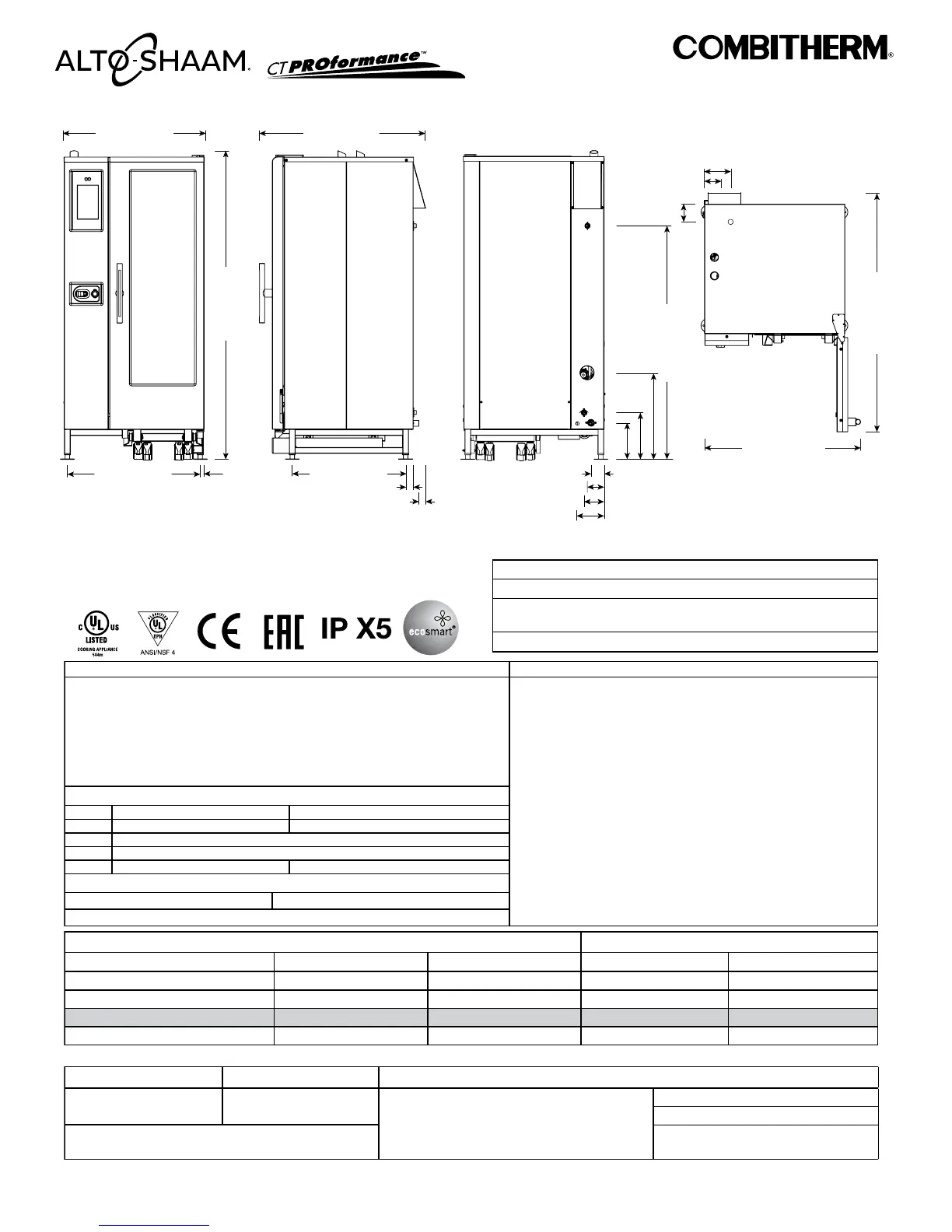

DIMENSIONS: H x W x D
EXTERIOR: 79-1/4" x 35-11/16" x 42-1/4" (2012mm x 906mm x 1072mm)
EXTERIOR WITH RECESSED DOOR:
79-1/4" x 40-11/16" x 42-1/4" (2012mm x 1033mm x 1072mm)
INTERIOR: 60-7/16" x 16-1/4" x 28-1/16" (1535mm x 411mm x 712mm)
A= UNTREATED WATER
B= TREATED WATER
C= ELECTRICAL
D= WATER DRAIN
4-1/2" (114mm)
4-1/4" (108mm)
6-11/16" (168mm)
C - at bottom
of oven
A, B, D
39-11/16" (1008mm)
42-1/4" (1072mm)
35-11/16" (906mm)
B
A
D
28-13/16" (732mm)
1-15/16" (49mm)
33-13/16" (858mm)
1" (24mm)
79-1/4" (2012mm)
60-13/16" (1545mm)
59-1/4" (1504mm)
11-13/16" (299mm)
22-3/16" (563mm)
9-3/16" (233mm)
(C) 7" (178mm)
(A) 5" (126mm)
(B, E) 4-3/16" (106mm)
(D) 3-1/4" (81mm)
C
A
E
D
B
1-11/16" (42mm)
E= OPTIONAL ELECTRICAL
CTP20-10E
-
