Combitherm® CT PROformance™ and CT Classic Series Installation Manual
•
39
Installation
SITE INSTALLATION

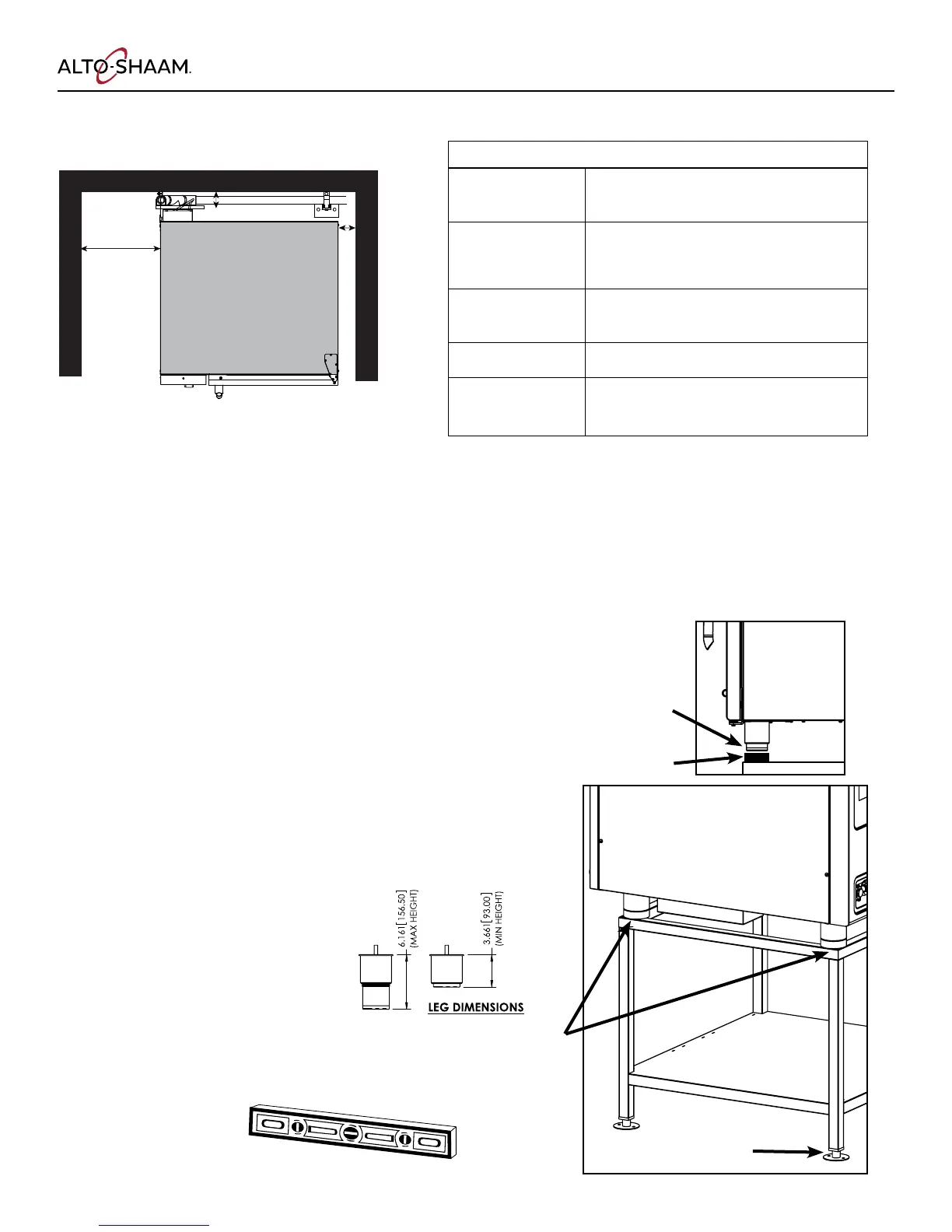

MINIMUM CLEARANCE REQUIREMENTS
  0" (0mm) 
18" (457mm)   
  0" (0mm) from non-combustible surfaces
2" (51mm
) from combustible surfaces
2" (51mm
) for door swing
 4" (102mm)  
4-5/16" (109mm)    
 20" (508mm)   
 5-1/8" (457mm)
     
NOTICE: • A minimum distance of 18" (457mm) is strongly recommended for service access. If adequate service
clearance is not provided, it will be necessary to disconnect the gas, water, and drain to move the oven
with a fork li for service access. Service charges in connection with inadequate service access is not
covered under warranty.
• Do not install a stacked combination directly over a drain. Steam rising up out of the drain will
adversely affect operation, hamper cooling air circulation, and may damage electrical and electronic
components. Failure to do so will void the warranty. A single oven installed on a stand with solid
surface bottom shelf can be positioned over a drain since the solid surface will block the rising steam.
4" (102mm) for plumbing
4-5/16" (109mm) with optional plumbing kit
18" (457mm) for service access
0" (0mm) from non-combustible surfaces
2" (51mm) from combustible surfaces
2" (51mm) for door swing
POSITIONING ON SITE – COUNTERTOP
Place the oven on a stable, non-combustible level horizontal
surface. Use the adjustable feet to overcome an uneven oor and
ensure that the unit is level.
It is strongly recommended that table top models be mounted on a
factory supplied stand or a stand that is stable, open, and level. The
adjustable oven legs should be extended beyond the depth of the
positioning ring to allow for leveling aer the oven has been placed
on thestand.
Each of the legs on the stand and the
oven can be adjusted
2" (51mm) up or down.
Level the oven from front-to-back and
side-to-side by means of the adjustable
legs. Components within the oven
condenser tank are sensitive to pitch
and can be can can be damaged. The tolerance to level
is+/-.125". If this tolerance range is not achievable, the
oor must be repaired to
obtain level.
Adjustable
Leg
Adjustable
Leg
Positioning
Ring
Positioning
Rings
