Combitherm® CT PROformance™ and CT Classic Series Installation Manual
Installation
WARNING
To prevent SERIOUS INJURY or DEATH from re
or explosion:
Only connect the type of gas indicated on the
identication nameplate. Your gas Combitherm® is
equipped to operate using only the fuel type specied
on the identication name plate. Should conversion
from natural gas to propane or from propane to natural
gas be desired, conversion parts must be ordered from
Alto-Shaam. Conversions must be peformed by an
Alto‑Shaam authorized service provider only.
Always ensure the oven’s nameplate reects the
intended fuel type for your oven.
Residential gas connections and hard-piped gas
connections DO NOT meet NSF certications and should
NEVER be used with your Combitherm oven.
Please refer to model specications for rated thermal
loads and connected pressure requirements.
Natural Cat Gas Type
GR II
2H3B/P
2H-G20-20mbar
CY II
2H3B/P
2H-G20-20mbar
ES/FR/GB/IE/CH II
2H3P
2H-G20-20mbar
AT II
2H3B/P
2H-G20-20mbar
BE II
2E(S)3B/P
2H-G20-20mbar
DE II
2ELL3B/P
2E-G20/G25-20mbar
NL II
2L3B/P
2L-G25-25mbar
Butane/Propane Mixture Cat Gas Type
GR II
2H3B/P
3B/P-G30/G31-30mbar
CY II
2H3B/P
3B/P-G30/G31-30mbar
ES/FR/GB/IE/CH II
2H3P
3P-G31-30mbar
AT II
2H3B/P
3B/P-G30/G31-50mbar
BE II
2E(S)3P
3P-G31-30mbar
DE II
2ELL3B/P
3B/P-G30/G31-50mbar
NL II
2L3B/P
3B/P-G30/G31-30mbar
AUS/NZ — NGN 1.13 kPa
AUS/NZ — LPG-X Propane 2.75 kPa
Japan — Natural Gas 13A 1.96 kPa
Japan LPG - Propane 2.8 kPa
NOTICE: Connection components not supplied by
Alto-Shaam must comply with the regulations in
force of the country of use.

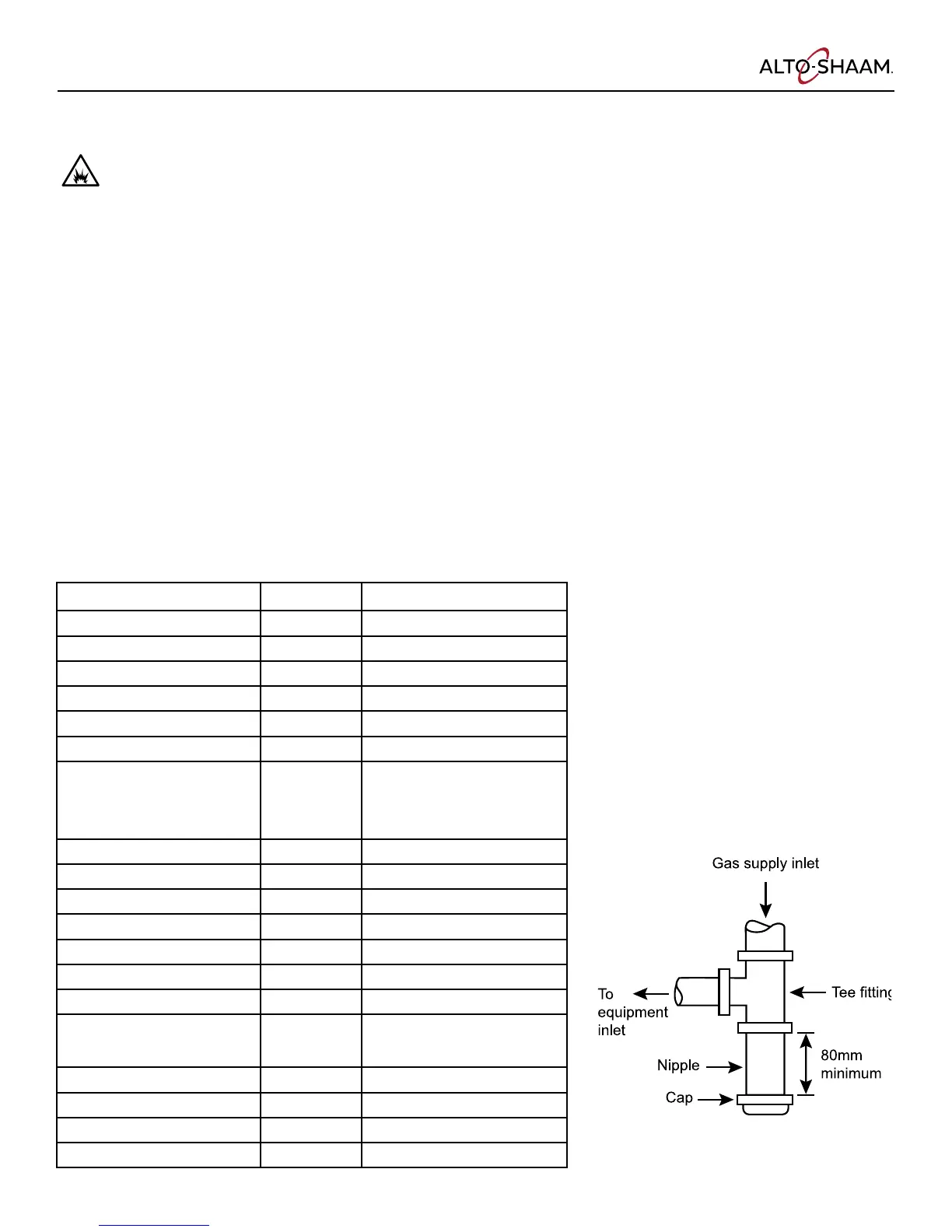

SEDIMENT TRAP REQUIRED:
A sediment trap shall be installed
downstream of the appliance shutoff
valve as close to the inlet of the appliance
as practical at the time of appliance
installation. The sediment trap shall be
either a tee tting with a capped nipple in
the bottom outlet, as illustrated below or
another device recognized as an effective
sediment trap.
Installation shall comply with local codes required for
gas appliances. In the absence of local codes, installation
shall comply with the latest edition of:
• USA: National Fuel Gas Code, ANSI Z223.1 (NFPA 54).
And OSHA Regulations
• Canada: Natural Gas and Propane Installation Code,
CAN/CSA-B149.1-15
• EU: European Standard EN203
• Australia/New Zealand: AS 5601
GAS SUPPLY AND INSTALLATION
