Combitherm® CT PROformance™ and CT Classic Series Installation Manual
•
47
Installation
Item Part Description Qty.
1 1012504 PLATE, RESTRICTOR COMBI, 20mm, 10-20 G30, 20-20 G30 1
2 1012817 PLATE, RESTRICTOR COMBI, 25mm, 7-20 G25 1
3 1013843 PLATE, RESTRICTOR COMBI, 14mm, 6-10 1
4 1013844 PLATE, RESTRICTOR COMBI, 21mm, 10-20 G25, 20-20 G25 1
5 1013845 PLATE, RESTRICTOR COMBI, 22mm, 10-20 G20, 10-20 G31, 20-20 G20, 20-20 G31 1
6 1014619 PLATE, RESTRICTOR COMBI, 17mm, 10-10 G31, 10-10 G30, 20-10 G31, 20-10 G30 1
7 1015074 PLATE, RESTRICTOR COMBI, 18mm, 10-10 G20, 10-10 G25, 20-10 G20, 20-10 G25 1
8 1015075 PLATE, RESTRICTOR COMBI, 23mm, 7-20 G31 1
9 1015076 PLATE, RESTRICTOR COMBI, 24mm, 7-20 G20, 7-20 G30 1
Item Part Description Qty.
1 OR-35874 ORIFICE, GAS VALVE DISC 4.60mm, 6-10 G25, 10-20 G31, 20-20 G31 1
2 OR-35876 ORIFICE, GAS VALVE DISC 2.60mm, 6-10 G30 1
3 OR-35877 ORIFICE, GAS VALVE DISC 4.00mm, 10-10 G30, 20-10 G30, 7-20 G30 1
4 OR-35878 ORIFICE, GAS VALVE DISC 4.10mm, 10-10 G31, 20-10 G31, 10-20 G30, 20-20 G30 1
5 OR-35943 ORIFICE, GAS VALVE DISC 5.70mm, 10-10 G20, 20-10 G20, 10-20 G20, 20-20 G20 1
6 OR-36006 ORIFICE, GAS VALVE DISC 6.30mm, 7-20 G25 1
7 OR-36007 ORIFICE, GAS VALVE DISC 6.00mm, 10-10 G25, 20-10 G25 1
8 OR-36207 ORIFICE, GAS VALVE DISC 6.40mm, 10-20 G25, 20-20 G25 1
9 OR-36625 ORIFICE, GAS VALVE DISC 3.75mm, 6-10 G20 1
10 OR-36626 ORIFICE, GAS VALVE DISC 2.75mm, 6-10 G31 1
11 OR-36627 ORIFICE, GAS VALVE DISC 5.55mm, 7-20 G20 1
12 OR-36628 ORIFICE, GAS VALVE DISC 4.20mm, 7-20 G31 1
NOTE: Natural Gas = G20
Propane = G31
Butane = G30
Low Calorifi c Natural Gas = G25
WARNING
Electric shock hazard.
Perform lockout/tagout procedures before
cleaning or servicing this appliance.
INSTALLATION REQUIREMENTS
GAS CONNECTION: 3/4" NPT
For Europe, gas connection thread fittings should conform to
EN ISO 228-1, or ISO 7-1, or shall have a compression fitting.
If the appliance has casters, a restraint system must be
installed. See section Mobile Equipment Restraint , page 53.
NOTE:
If a flexible gas line is used, it must be AGA
approved, commercial type and at least 3/4" I.D. or
comply to European Standard EN203.
HOOD INSTALLATION IS REQUIRED
After installation, burner and gas valve should be checked and
adjusted by a qualified and trained Alto-Shaam technician for
proper operation and validate CO2 levels. GAS VALVE MAY
REQUIRE FIELD ADJUSTMENT ABOVE 2,000' (610m) AND IS
NOT ADJUSTED AT THE FACTORY.
GAS SUPPLY AND INSTALLATION
WARNING
Improper installation, adjustment of burner
pressures, alteration, service, maintenance,
or use can cause carbon monoxide
poisoning, explosion, fire, electrical shock,
or other conditions which may cause
SERIOUS INJURY, DEATH or PROPERTY
DAMAGE. Consult a qualified and trained
installer, service agency, local gas supplier,
or your distributor for information or
assistance. The qualifiedand trained
installer or agencymust use only factory-
authorized and listed kits or accessories
when modifying thisappliance.

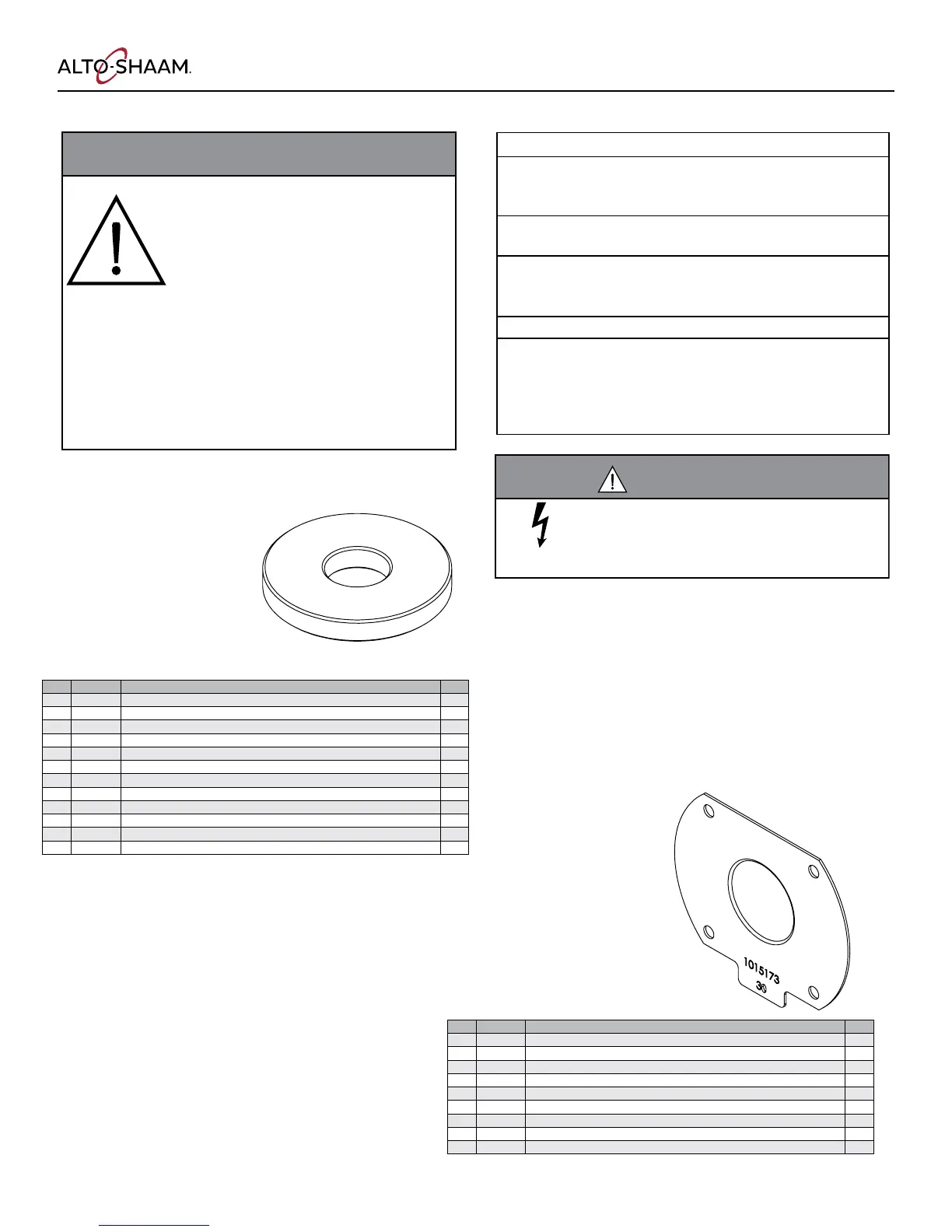

GAS TRAIN -
RESTRICTOR PLATE
GAS TRAIN - ORIFICE
When converting gas units to either propane
or natural gas you will need to provide the
corresponding orice and restrictor plate,
and new serial data tags, part numbers:
LA-26348 and LA-26349
