MN-35947
•
Rev 15
•
01/18
•
Combitherm® CT PROformance™ and CT Classic Series Installation Manual
•
29
#438 - 01/18 DUE TO ONGOING PRODUCT IMPROVEMENT, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. WWW.ALTO-SHAAM.COM
ELECTRICAL
(NO CORD, NO PLUG, DEDICATED CIRCUIT REQUIRED)
MODEL VOLTAGE PH HZ AMPS kW BREAKER AWG CONNECTION
CTC10-10E 208 – 240 3 50/60 39.4 – 45.5 14.2 – 18.9 40-50 4 L1, L2, L3, G
380 – 415 3 50/60 24.1 – 26.2 16.2 – 18.9 32 6 L1, L2, L3, N, G
440 – 480 3* 50/60 20.8 – 22.7 16.2 – 18.9 25 8 L1, L2, L3, G
*ELECTRICAL SERVICE CHARGE APPLIES
WEIGHT SHIP DIMENSIONS PAN CAPACITY
NET 625 lbs est 283 kg (L x W x H) 45" x 45" x 65"* FULL–SIZE: 20" x 12" x 2-1/2" Eleven (11) PRODUCT MAXIMUM: 120 lb (54 kg)
SHIP 650 lbs* 295 kg* (1143 x 1143 x 1651mm)* GN 1/1: 530 x 325 x 65mm Eleven (11) VOLUME MAXIMUM: 75 quarts (95 liters)
* .
.
**HALF–SIZE SHEET: 18" x 13" x 1" Eleven (11)
** .

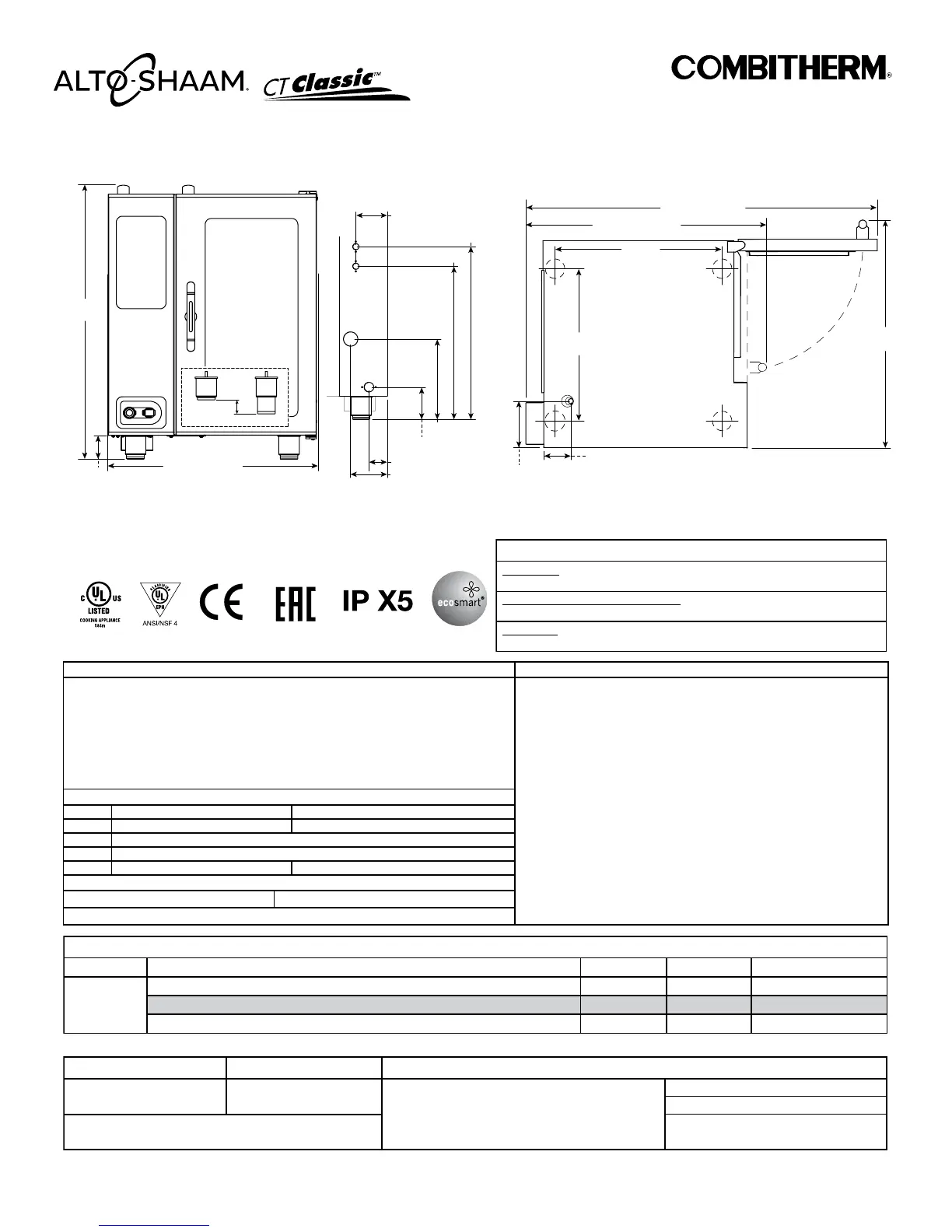

DIMENSIONS: H x W x D
EXTERIOR:
45-11/16" x 35-11/16" x 41-7/16" (1160mm x 906mm x 1053mm)
EXTERIOR WITH RECESSED DOOR:
45-11/16" x 40-11/16" x 41-7/16" (1160mm x 1033mm x 1053mm)
INTERIOR:
31-1/2" x 16-1/4" x 28-1/16" (800mm x 411mm x 712mm)
CTC10-10E
-
WATER REQUIREMENTS WATER QUALITY STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY*
ONE (1) TREATED WATER INLET: 3/4" NPT connection. Line pressure 30 psi minimum dynamic and
90 psi maximum static (200 to 600 kPa) at a minimum flow rate of 0.26 gpm (1 L/min).
ONE (1) UNTREATED WATER INLET: 3/4" NPT connection. Line pressure 30 psi minimum dynamic and
90 psi maximum static (200 to 600 kPa) at a minimum flow rate of 2.64 gpm (10 L/min).
* Both inlets can be from same source. Divide using a manifold. Run one side through treatment device before running to oven.
Must meet line pressure and flow rate specifications for both inlets.
WATER DRAIN: 1-1/2" (40mm) connection with a vertical vent to extend above the exhaust vent.
materials must withstand temperatures up to 200°F (93°C).
It is the sole responsibility of the owner/operator/purchaser of this equipment
to verify that the incoming water supply is comprehensively tested and
if required, a means of “water treatment” provided that would meet
compliance requirements with the published water quality standards shown
below. Non-compliance with these minimum standards will potentially
damage this equipment and/or components and void the original equipment
manufacturer’s warranty. Alto-Shaam recommends using OptiPure
®
[www.
optipurewater.com] products to properly treat your water.
Contaminant
Free Chlorine
Hardness
Chloride
pH
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements
Less than 0.1 ppm (mg/L)
30-70 ppm
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 12 ppm (mg/L)
Treated line: 50-125 ppm
Untreated line: 50-360 ppm
CLEARANCE REQUIREMENTS
LEFT:
0" (0mm) 18" (457mm) recommended service access
RIGHT:
0" (0mm) Non-combustible surfaces 2" (51mm) door swing or combustible surfaces
TOP:
20" (508mm) for air movement
BOTTOM:
5-1/8” (130mm) for legs, air aintake
BACK:
4" (102mm) 4-5/16” (109mm) optional plumbing kit
INSTALLATION REQUIREMENTS
• Oven must be installed level. • Hood installation is required.
• Water supply shut-off valve and back-flow preventer when required by local code.
E
C
D
A
B
60-9/16" (1538mm)
41-7/16" (1053mm)
39-1/4"
(996mm)
E: 6-11/16" (168mm)
E: 4-1/2" (114mm)
28-3/4"
(730mm)
26-3/16"
(665mm)
C: 6-1/2" (165mm)
D: 3-5/16" (84mm)
A,B: 5-5/8" (143mm)
D: 5-5/8"(143mm)
C: 13-15/16"(354mm)
B: 26-3/4"(679mm)
A: 30-3/16"(766mm)
35-11/16" (906mm)
4"
(102mm)
45-11/16"
(1160mm)
6" (152mm)
4" (102mm)
A = Treated water B = Untreated water C = Electrical (Back)
D = Water Drain E = Electrical (Bottom)
Front
Back
Top/Bottom
