To control electric metering drives, a speed signal is
required. A speed signal from the tractor can be used
for this.

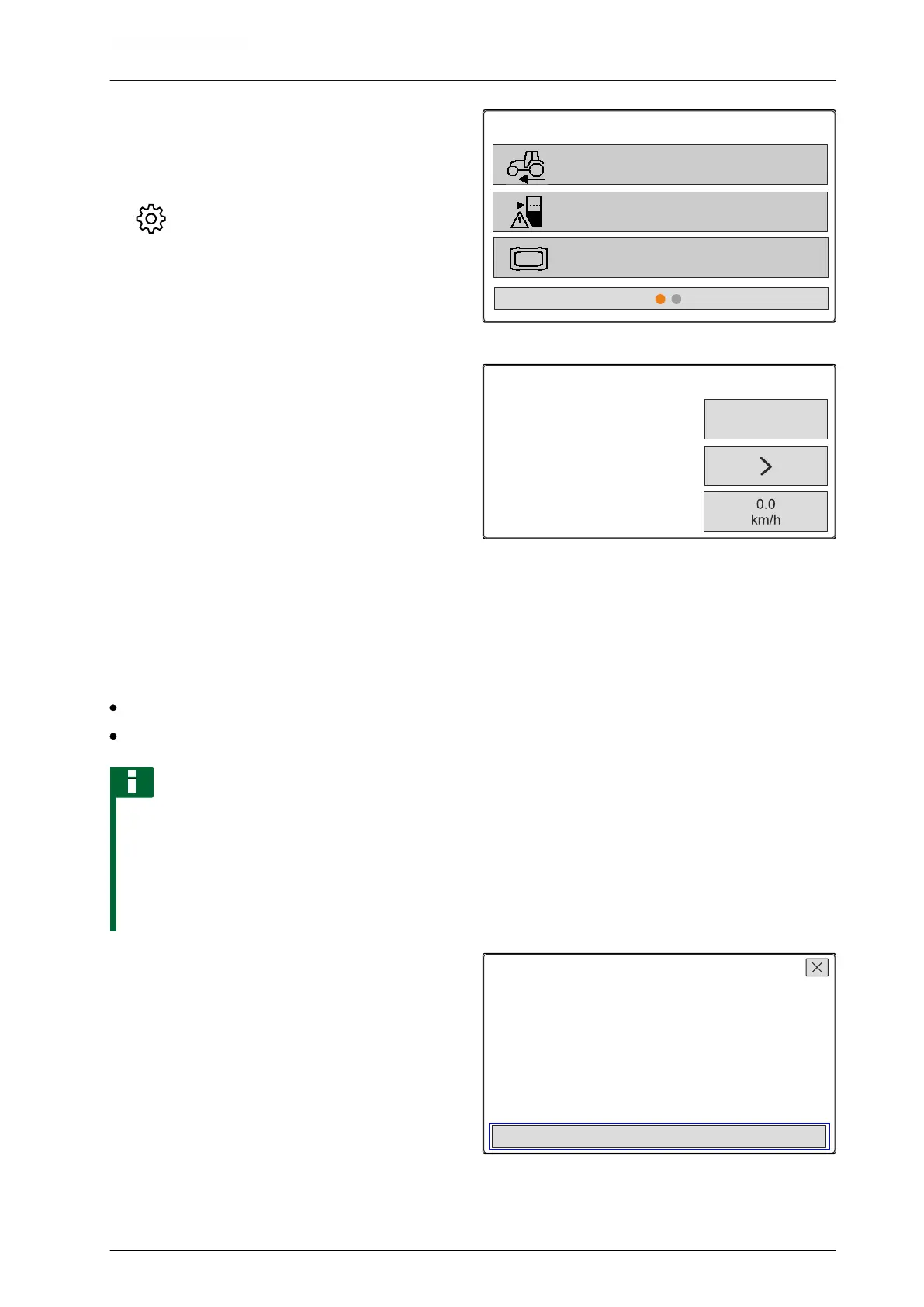

5. To configure the "Speed signal",
Call up "Implement" menu.
6. Select "Speed".
IMPLEMENT
Speed
Low level and rate control
Terminal
CMS-I-00006087
7. Select "Signal socket" under "Source".
Speed
Source
Sensor configuration
Simulated speed
CMS-I-00006086
7.1.2 Determining the pulses per 100 m
To determine the following values, the control
computer needs the pulses per 100 m:
Actual forward speed
Calculation of the speed-dependant metering.
NOTE
The "Pulses per 100 m" calibration factor must be
determined under operating conditions.
If 4-wheel drive is being used while seeding,
the 4-wheel drive must be switched on when
determining the pulses per 100 m.
1. Measure a distance of 100 m.
2. Mark the start point and end point.
3. Drive up to the start point.
4. Select "Continue".
TEACH-IN PULSES
Driven pulses
Continue
Saved pulses
0
9700
Measure a distance of 100 m, drive tractor to start
position and move implement to working position!
CMS-I-00005018
