Amazone AmaSpread 2 - Repairing the Implement; Calibrating the Shutters

Repairing the implement
15
15.1 Calibrating the shutters

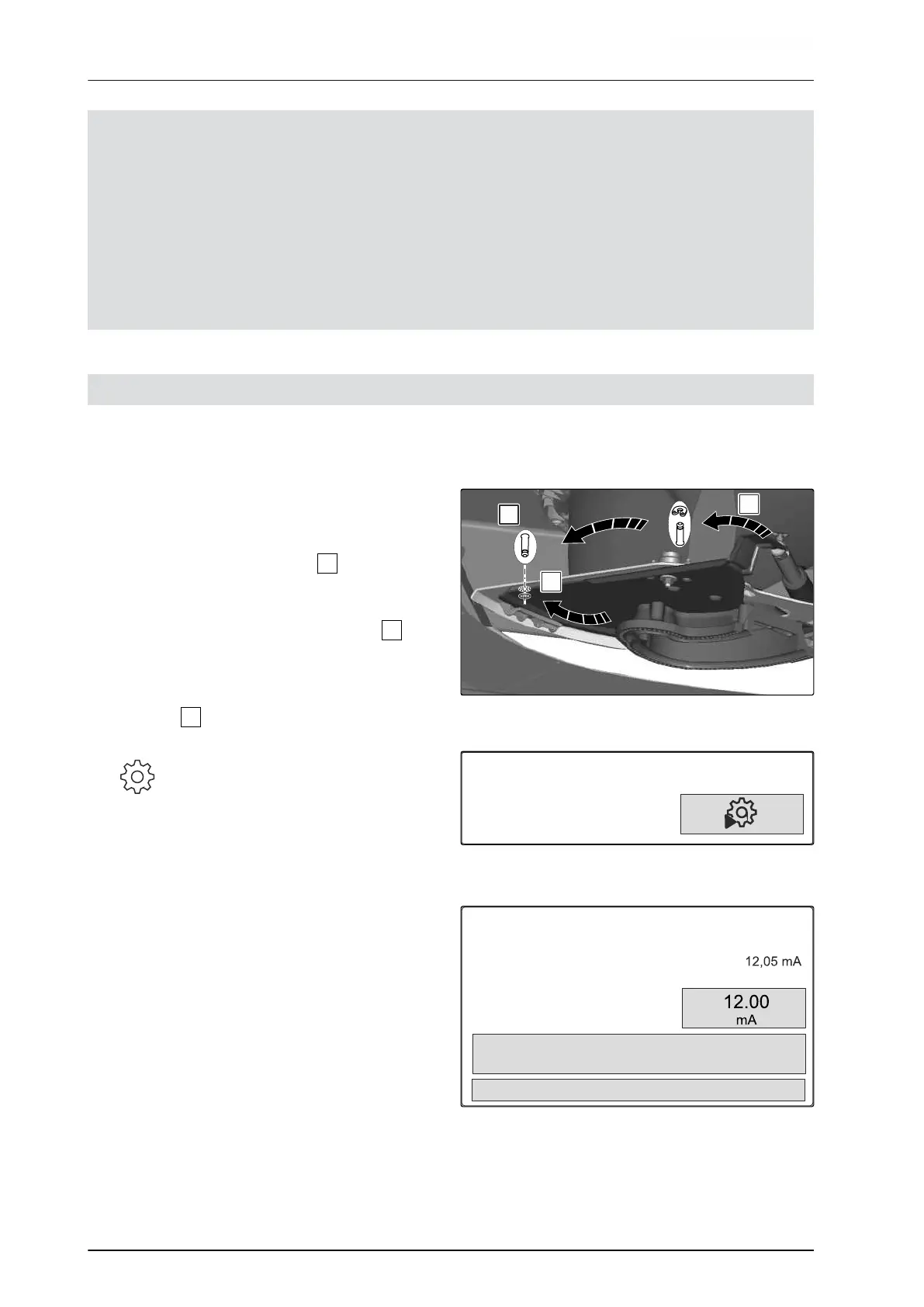

After a software update, the calibration position on the
left and right can be entered.
1. Write down the values before performing the
update.
2. Unhook the pin from the motor
1
on the left and
right shutter.
3. Move the shutter into calibration position
2
, so
that the holes are aligned.
4. Secure the calibration position with the pin from
the motor
3
.
1
2
3
CMS-I-00006201
5. Call up "Implement" menu.
6. Select "Setup".
7. Select "Calibrate shutters".
SETUP
Calibrate shutters
CMS-I-00006197
8. Select "Accept left value".
9. Select "Continue".
10. Select "Accept right value".
11. Select "Continue".
LEFT SHUTTER
Current value, left
Calibration position left
Accept left value
Continue
CMS-I-00006198
