Coupling and uncoupling the implement

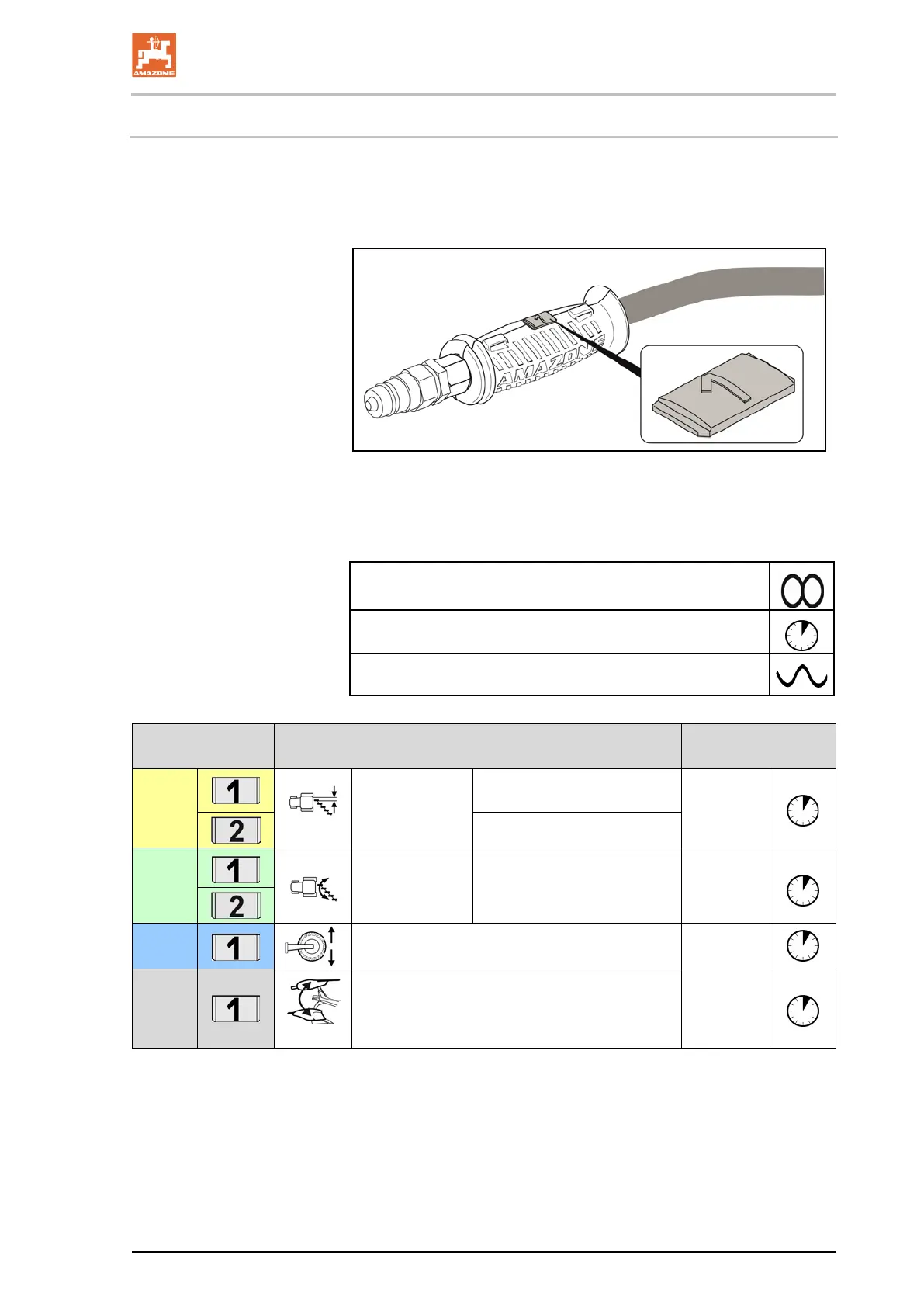

5.3 Hydraulic connections
• All hydraulic hose lines are equipped with grips.
Coloured markings with a code number or code letter have been
applied to the gripping sections in order to assign the respective
hydraulic function to the pressure line of a tractor control unit!
Films are stuck on the implement for the markings that illustrate
the respective hydraulic function.
• The tractor control unit must be used in different types of
activation, depending on the hydraulic function.
Latched, for a permanent oil circulation
Tentative, activate until the action is executed
Float position, free oil flow in the control unit
Labelling Function Tractor control unit
Yellow
(optional)
Front furrow
width
bigger
Double
acting
smaller
Green
Working
direction
Right and left
Double
acting
Blue
Running gear
Single-
acting
Beige
(Option)
Pre-tensioning of the stone release
Single-
acting
Hektor BAG0186.1 07.19
33
