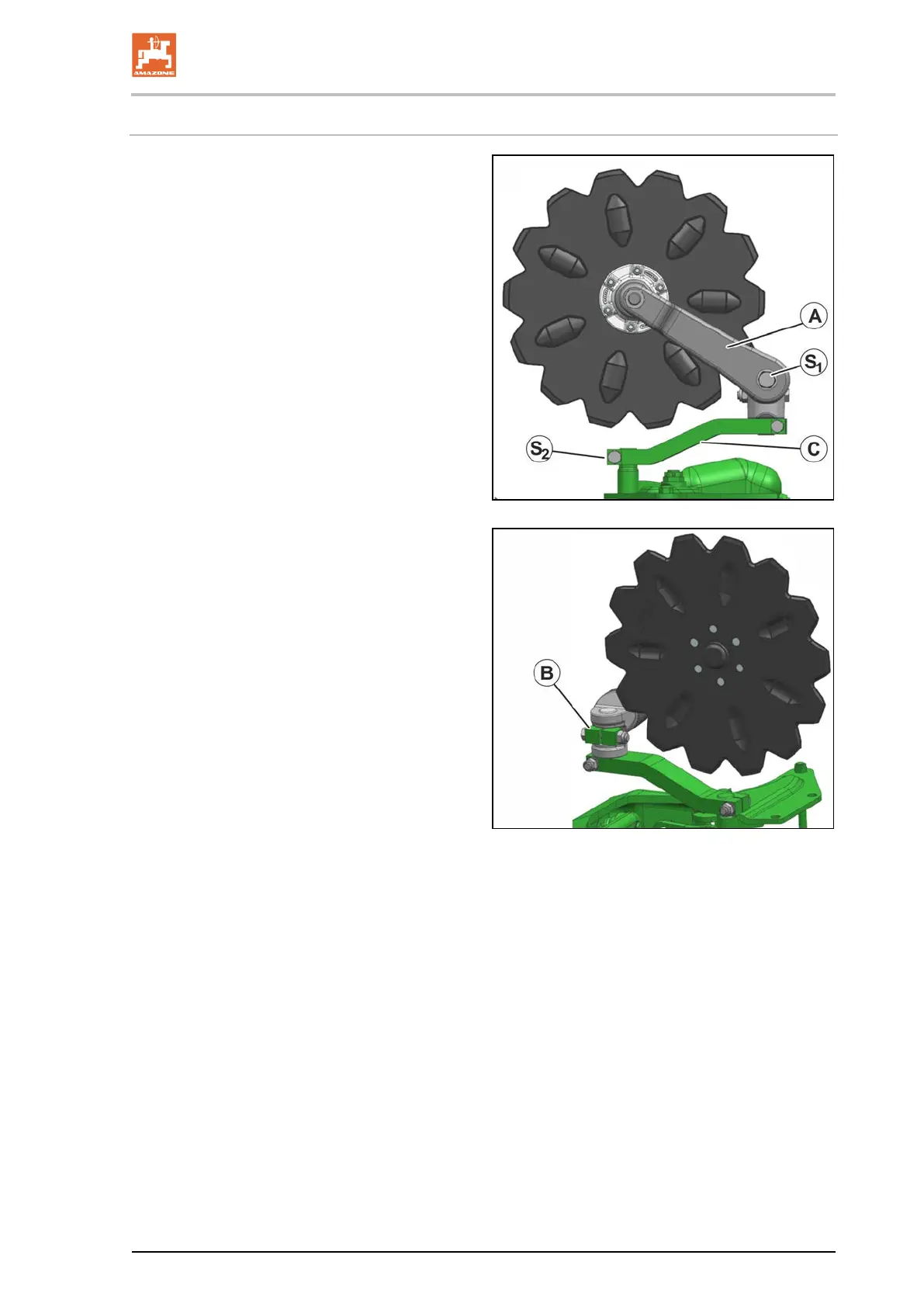

7.6.1 Disc coulter adjustment for automatic stone release
After loosening bolt S1 and adjusting the rocker
bar A, the depth of the disc coulter can be
adjusted for the desired work depth so that the
hub does not touch the ground. When adjusting
rocker bar A, make sure that the cogs engage
smoothly and that bolt S1 is securely tightened.
The distance between the side of the disc and
the ploughing tackle should be between 1 and 4
cm, and at least protrude over fertiliser skimmer
coulter. This distance is achieved by rotating the
coulter shaft C. Rotation is enabled by loosening
the bolt S2.
Lateral swing of coulter is to be set using stop
(B).
Hektor BAG0186.1 07.19
