Amazone Hektor - Hydraulic Stone Release Settings

Overload safety
Pressure on the hydraulic accumulator:
The gas pressure side may only be set by the
dealer and must be checked once annually!
Pre
-tensioning
pre
ssure
(nitrogen)
90 bar
Min. working
pre
ssure
(hydr. oil)
90 bar
The maximum pressure set must
not exceed 140 bar, otherwise
co
mponent parts on the plough will
be subject to overload and damage.
Max. working
p
ressure
(hydr. oil)
140 bar

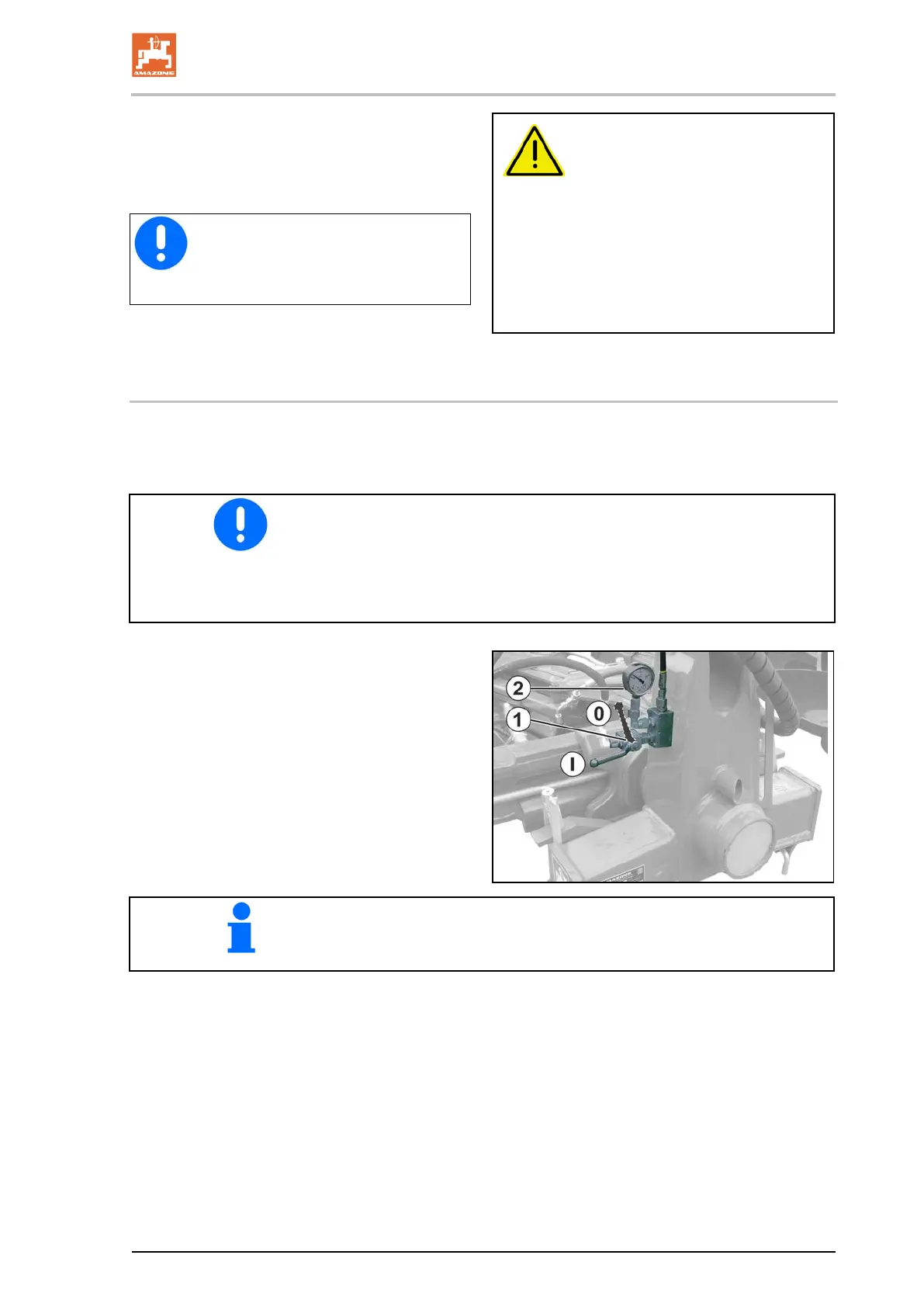

8.2.1 Hydraulic stone release with central pressure setting
The tripping pressure can be adjusted for all shares together while
driving, via the grey tractor control unit.
Before coupling and uncoupling the hydraulic hose, close the stop
tap.
To set the tripping pressure while driving, the stop tap must be
opened.
The pressure gauge shows the tripping pressure for all shares.
(1) Stop tap
(2) Pressure gauge
Using the stop tap on the hydraulic cylinder, different tripping
pressures can be applied to the shares also with central pressure
setting.
