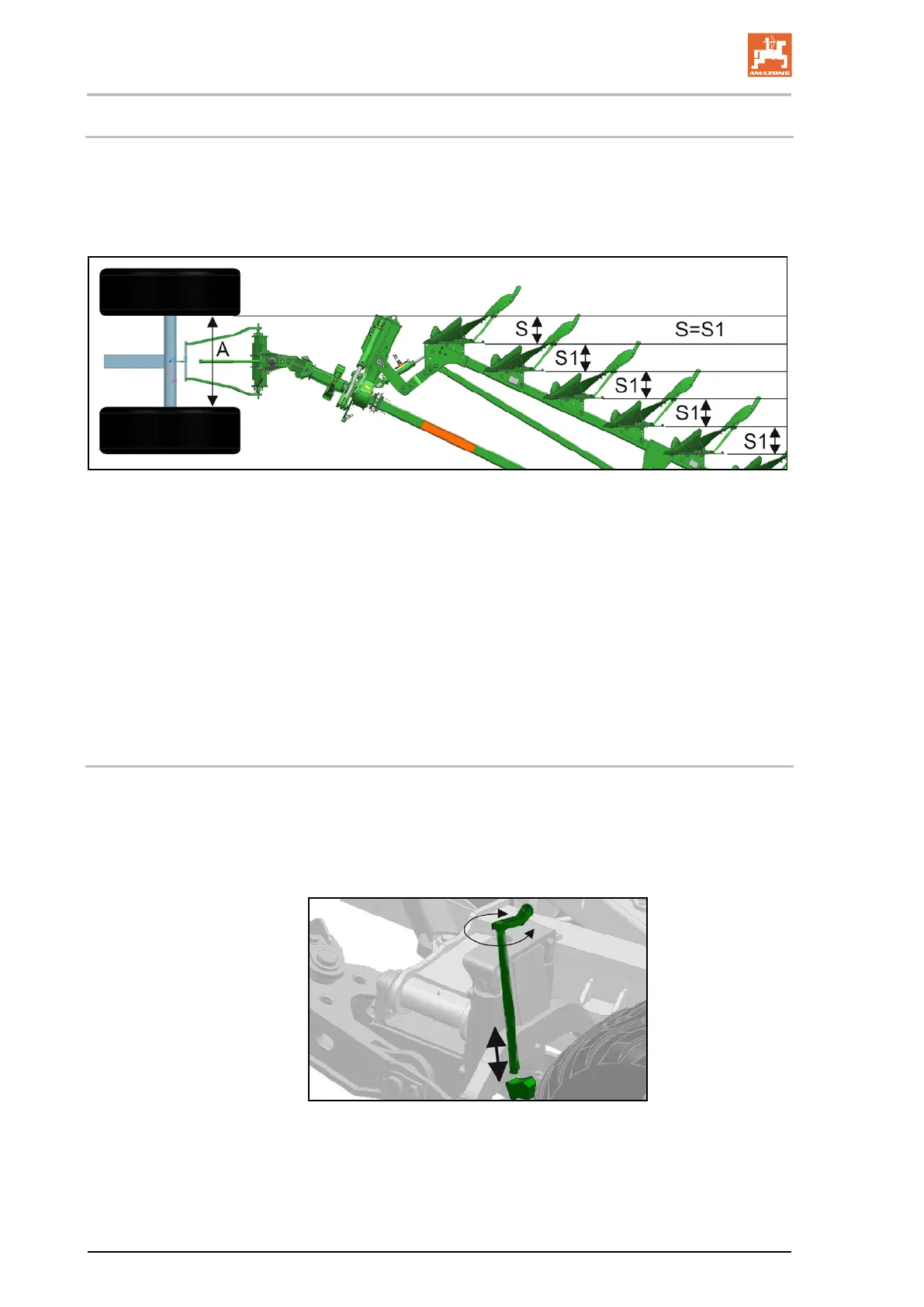

7.2 Front furrow width - rough adjustment to the tractor track width
Depending on the different clear spans of the tractor wheels A and
the set cutting width S, the plough is first roughly adjusted using the
rocker arm guide.
1. Lower the plough so that it is standing straight.
2. Adjust the front furrow width hydraulically according to the
cutting width.
3. Plough the first furrow.
4. Turn at the end of the field and rotate the plough.
5. Drive with the tractor wheels in the furrow. The tractor is now
standing on a slant and you must check the working depth and
the pitch.
6. If the adjustments are correct, adjust the front furrow width if
necessary.
7.3 Adjusting the working depth
Adjust the working depth using
• the tractor's lower link hydraulic system
• the stop spindle on the running gear
Secure the position of the stop spindle using a spring cotter pin.
Adjust the depth so that the plough is horizontal during operation.
38
Hektor BAG0186.1 07.19
