Setting up

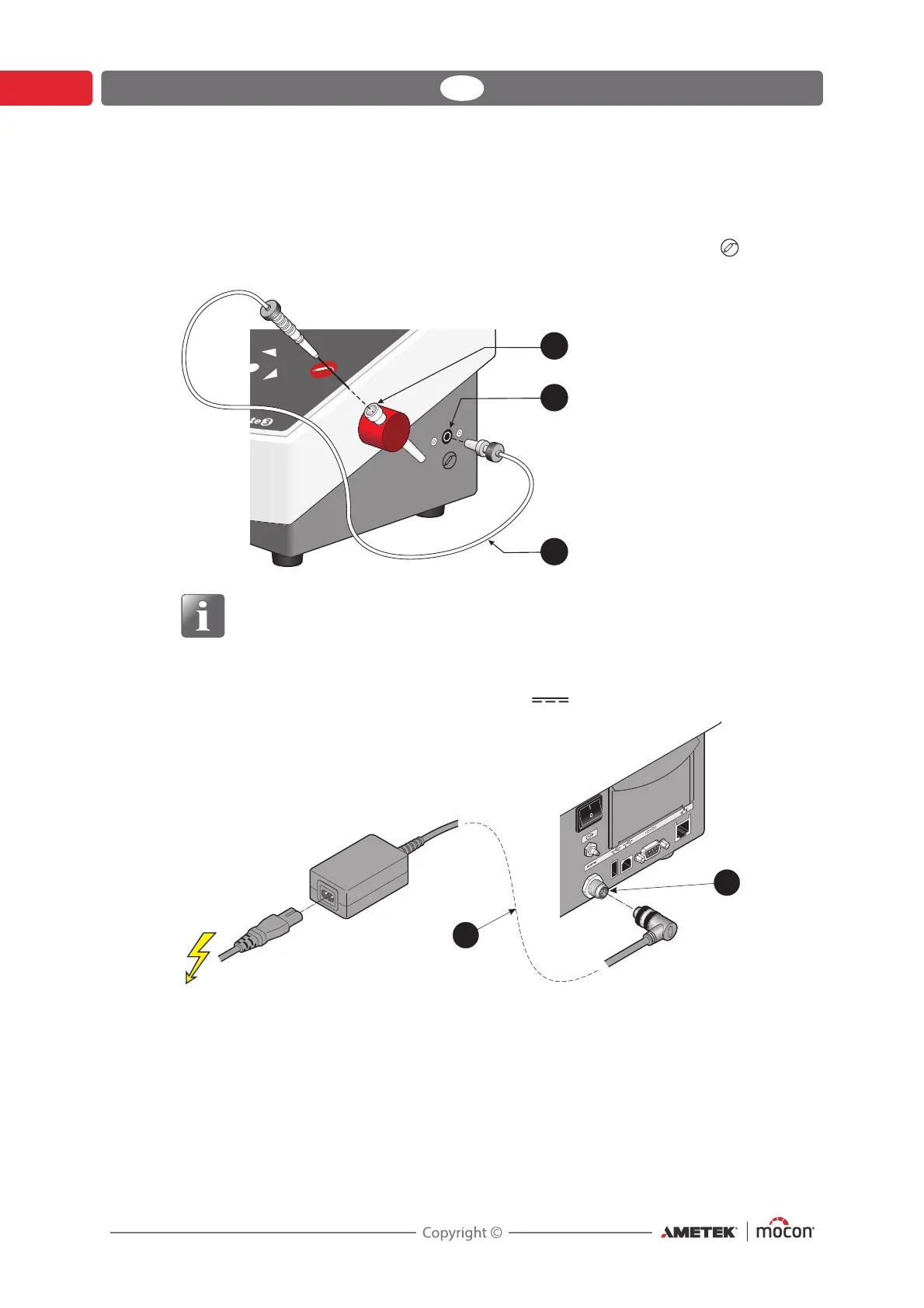

1. Place the device on a level and stable surface.
2. Connect the supplied needle set
to the measuring gas inlet (labelled ) on the
right side of the device as shown below, then place the needle in the holder
.
NOTE! It is not possible to fit the needle set without a filter on the measuring gas
inlet. Make sure that all connections are pressed firmly and carefully together,
as leaks will compromise the measurement results.
3. Connect the power supply
between the main power supply outlet and the 24 VDC
connection
at the back of the device (labelled ).
4. Starting up and use of the device is described in "Operation and Maintenance" on page 15.
