PARSTAT MC Hardware Manual
PARSTAT MC Hardware Manual 27

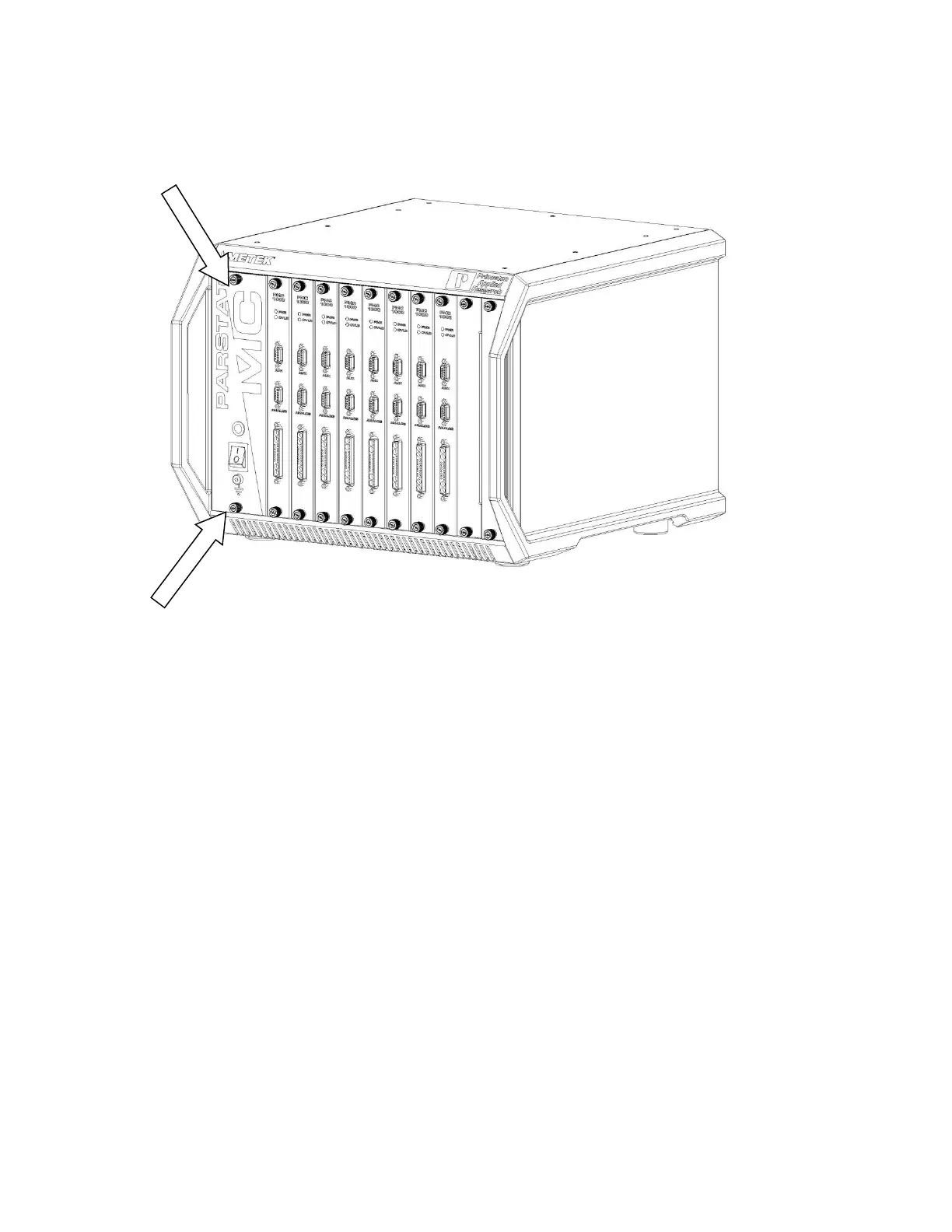

Figure 18. Front View of the PARSTAT MC.
Turn the top and bottom thumbscrews on the front of the power supply module anti-clockwise (toward the
left) until the thumbscrews are disconnected from the chassis. Then pull firmly on the thumbscrews until
the power supply module slides out of the chassis.
