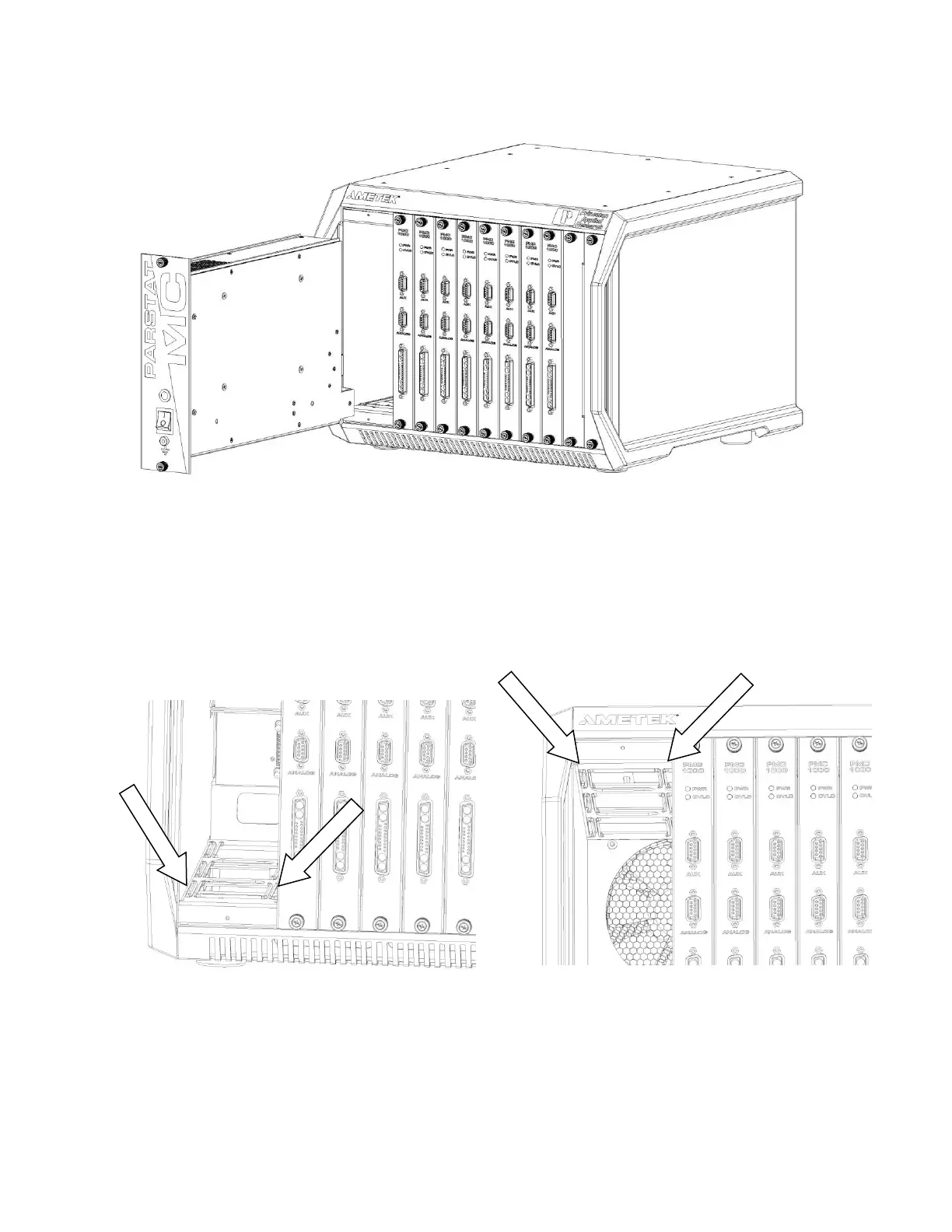

Figure 19. PARSTAT MC Chassis with PMC PWR01 being removed.
When the power supply module is removed from the chassis it may be packaged for shipment.
To install a new power supply module into the chassis, first locate the card guides for the power supply
module in the chassis.
Figure 20. Dual View of card guides for PMC PWR01 replacement.
Align the top and bottom rails on the power supply module with the top and bottom card guides in the
chassis.
