PARSTAT MC Hardware Manual
PARSTAT MC Hardware Manual 32

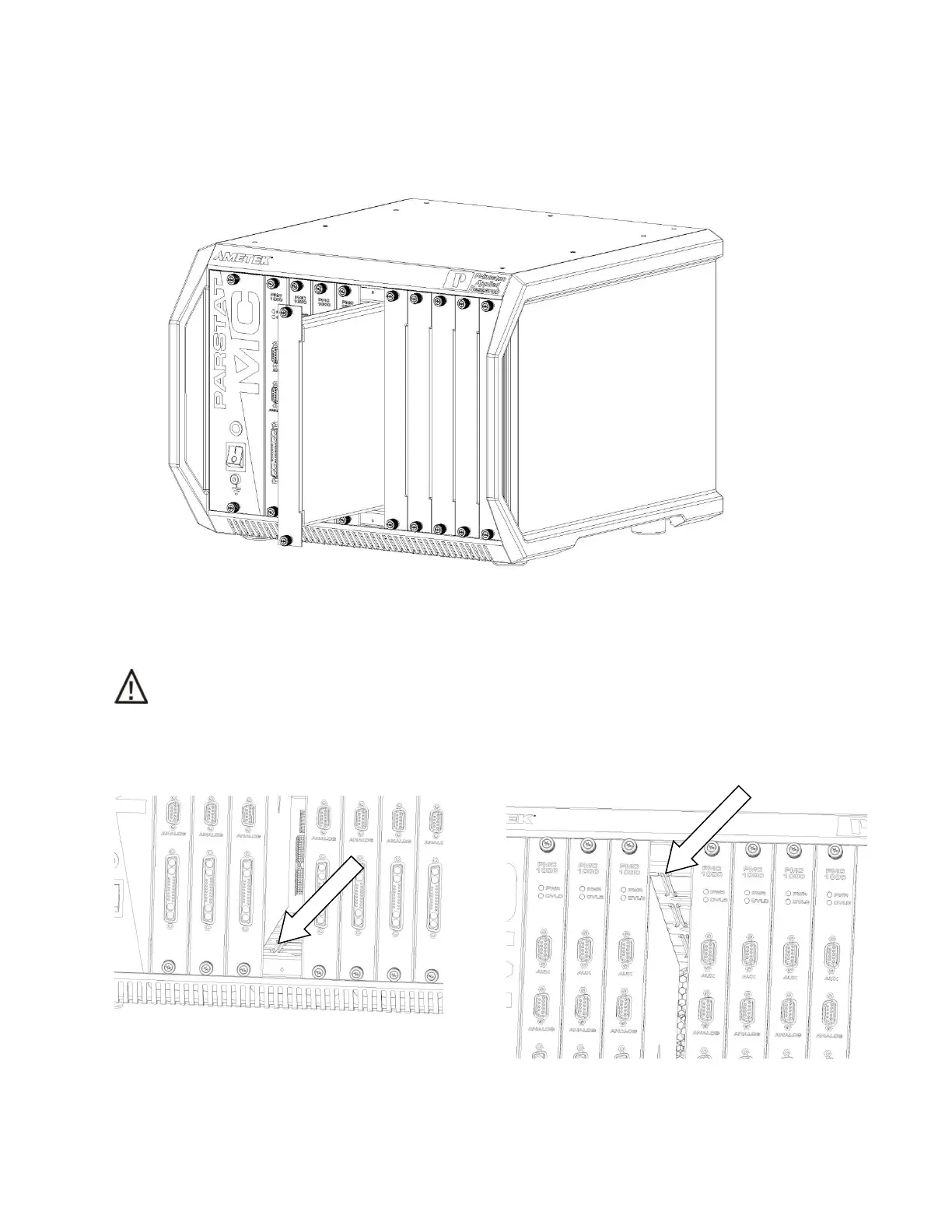

Figure 24. PARSTAT MC with a Blank Module being removed.
Set the blank module aside and unpackage the new potentiostat module.
CAUTION Do NOT operate the PMC with an empty slot any longer than necessary to insert another
module into that slot.
Find the card guides for the potentiostat in the chassis.
Figure 25. Card guides of PMC CHS08A identified for PMC-1000 installation
