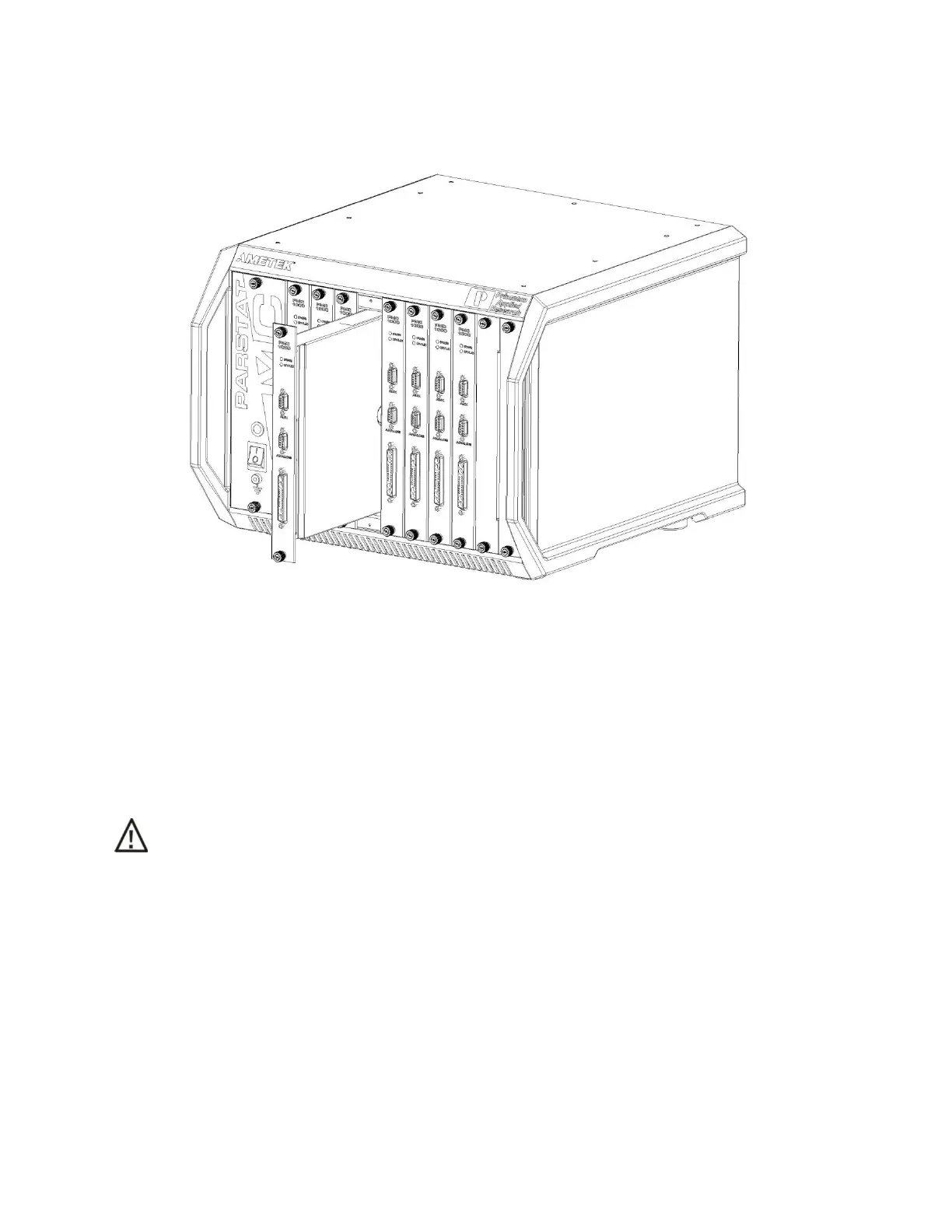

Figure 27. PARSTAT MC with PMC-1000 being removed.
Remove the potentiostat module by turning the top and bottom thumbscrews anti-clockwise (toward the
left) until the thumbscrews are disconnected from the chassis. Then pull firmly on the thumbscrews until
the module slides out of the chassis.
Once the original potentiostat module is removed from the chassis it may be packaged for shipment to the
factory.
CAUTION Do NOT operate the PMC with an empty slot any longer than necessary to insert another
module into that slot.
Insert the new blank module into the now empty slot by locating the card guides for this slot.
