PARSTAT MC Hardware Manual
PARSTAT MC Hardware Manual 46

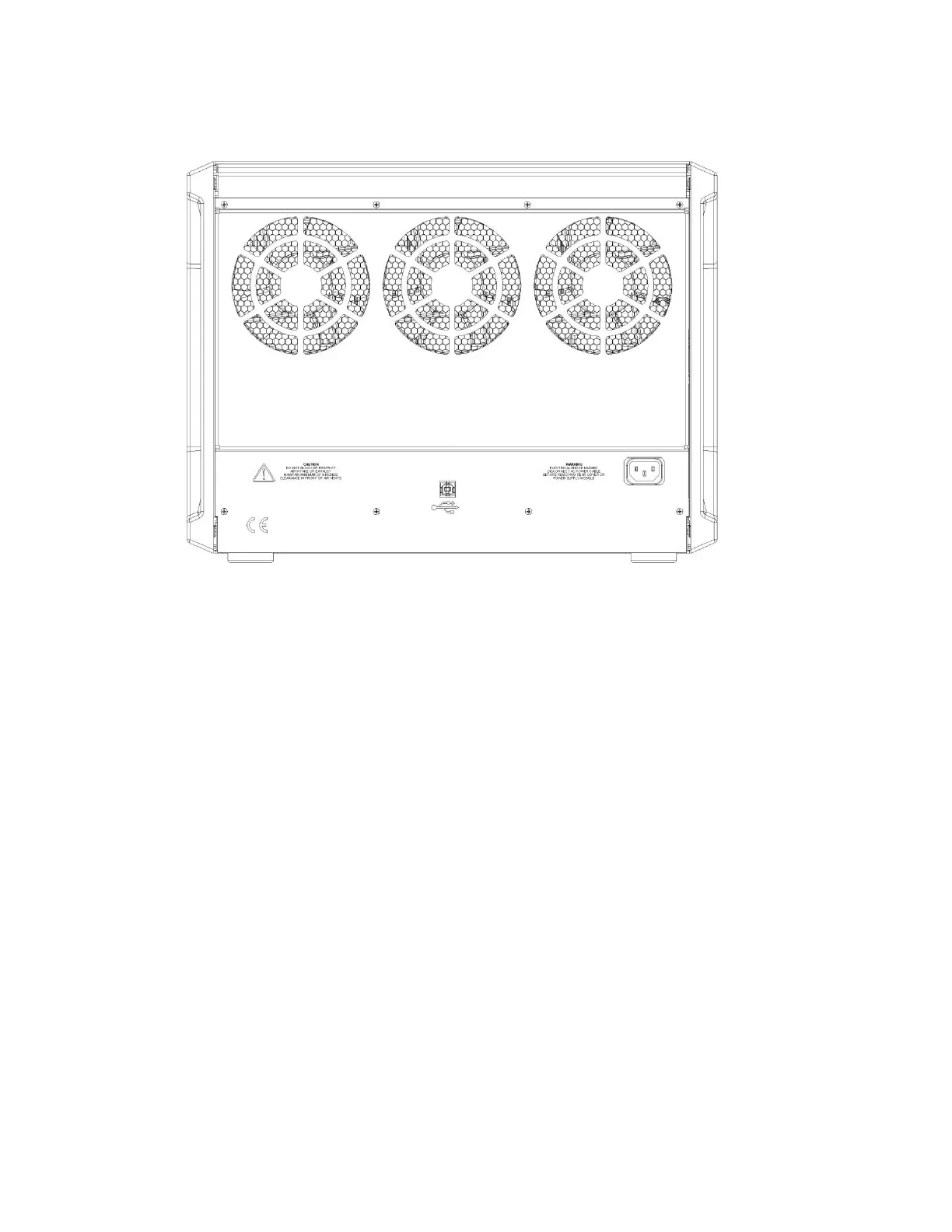

Figure 40. PMC CHS 08A identifying USB and AC cables disconnected.
Disconnect the three wire harnesses that connect the fans to the fan control board, and remove the eight
screws that hold the fan control card to the backplane.
