PARSTAT MC Hardware Manual
PARSTAT MC Hardware Manual 47

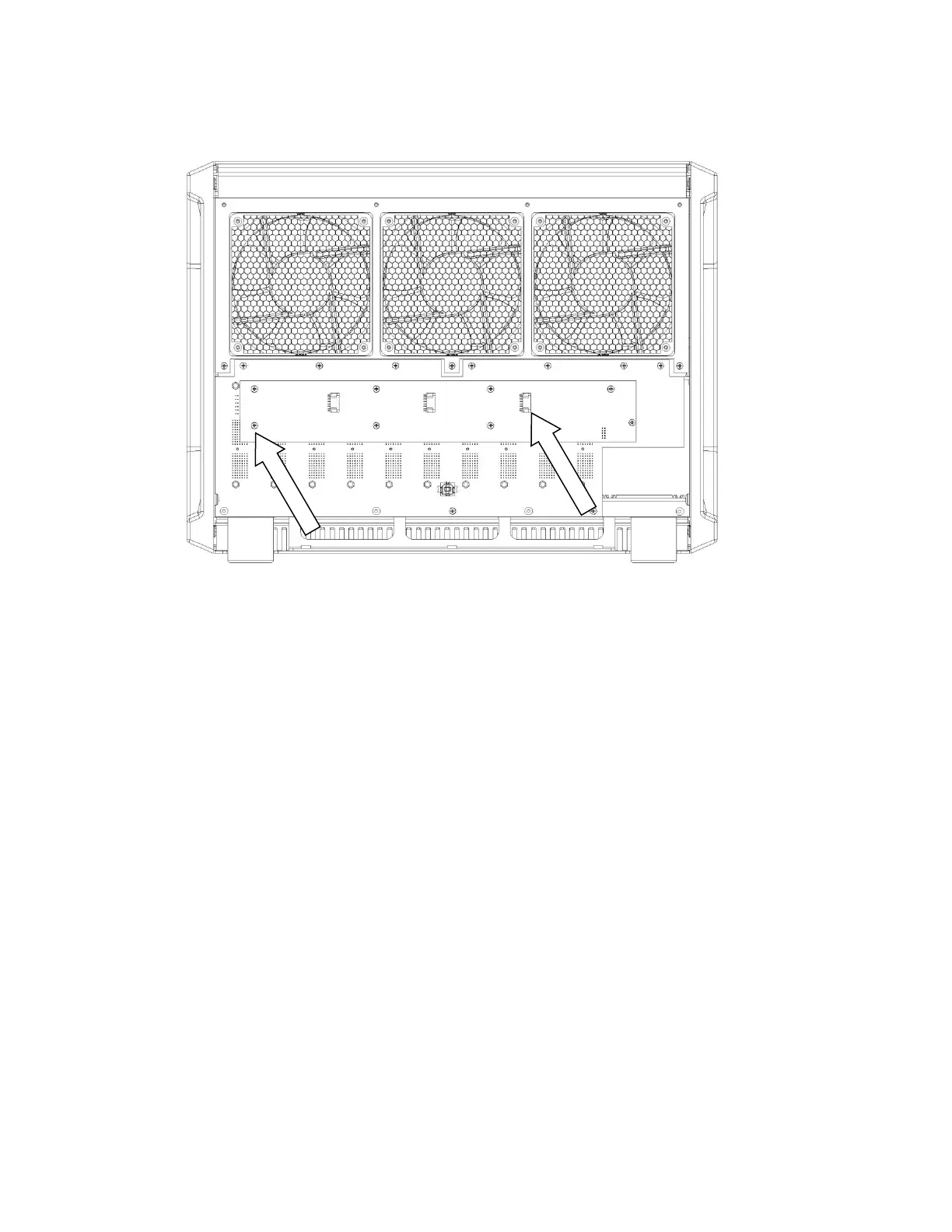

Figure 41. PMC CHS08A showing wire harness (x3) and screws (x8) for removal.
Pull the fan control card straight back from the backplane. Once the fan card is disconnected from the
backplane, set it aside.
