PARSTAT MC Hardware Manual
PARSTAT MC Hardware Manual 48

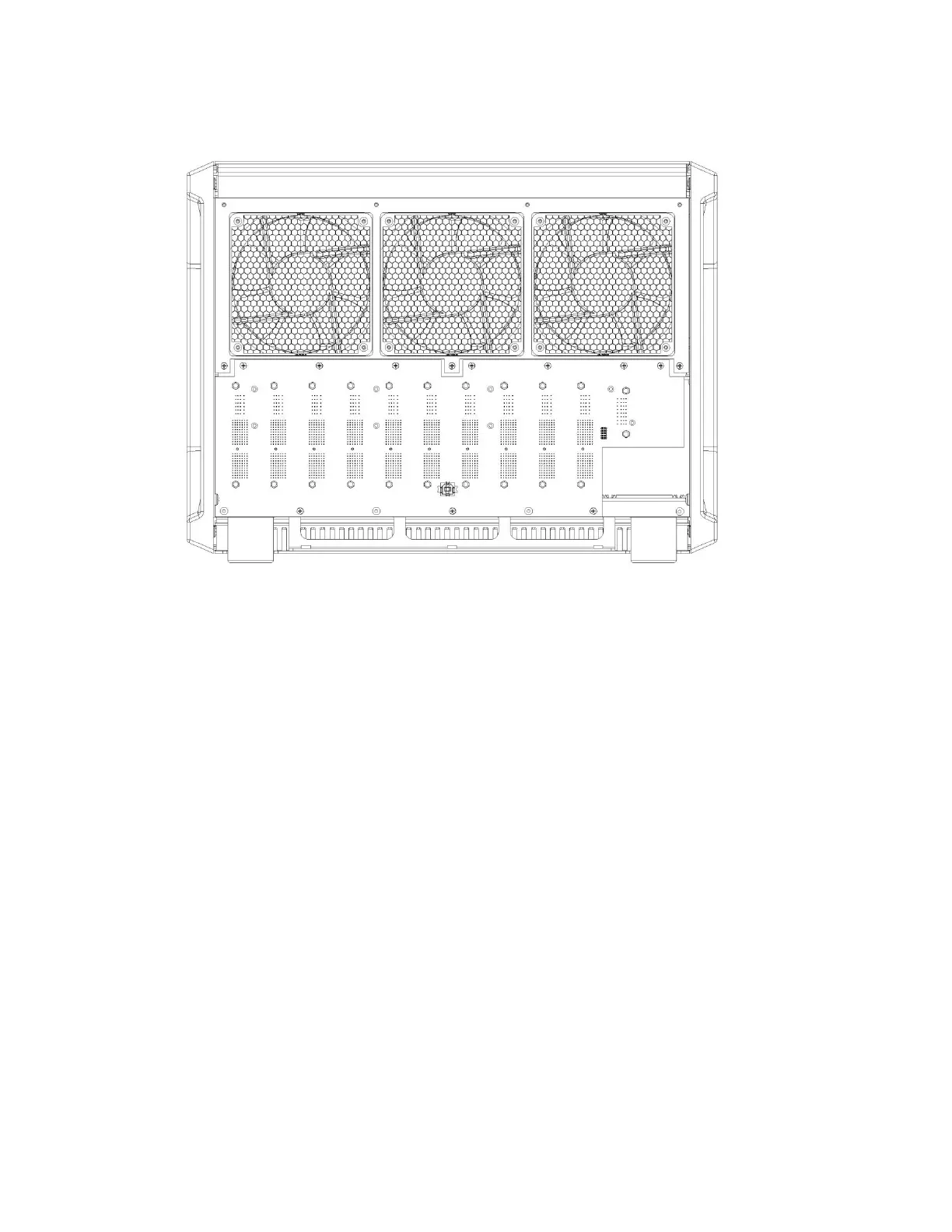

Figure 42. PMC CHS08A with screws and standoffs for PMC BPLN removal
Remove the ten screws holding the backplane to the chassis. Using a ¼” nut driver, remove the three
standoffs holding the backplane to the chassis and pull the backplane out.
