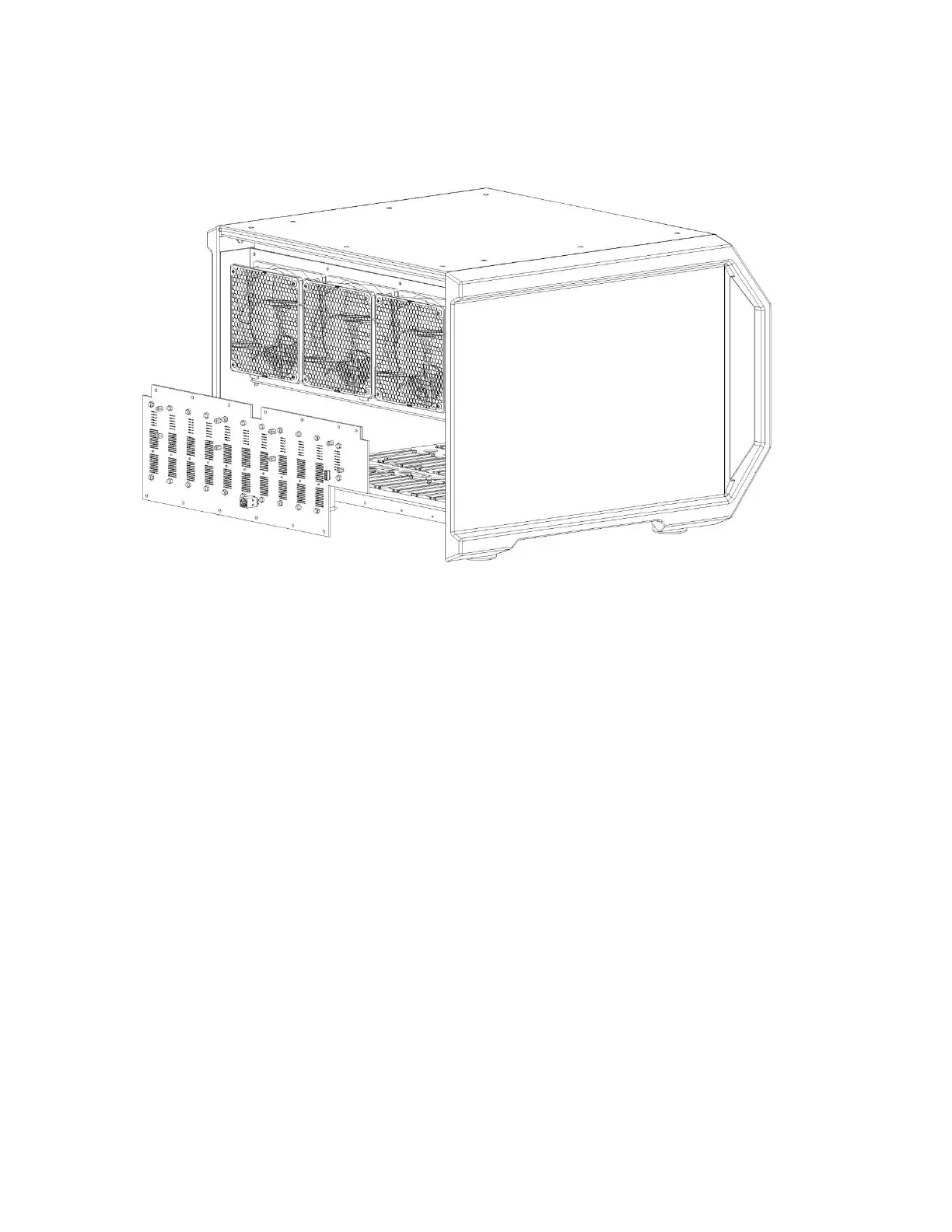

Figure 43. The PMC CHS08A with the BackPlane (PMC BPLN) being removed.
The backplane module may now be packaged for shipment to the factory. Be sure to keep the fan control
card for use with the new backplane.
When the new backplane module arrives, install the backplane by inserting ten screws provided in the
locations indicated.
