7-4 | Thermox
TM2000 Oxygen
Analyzer

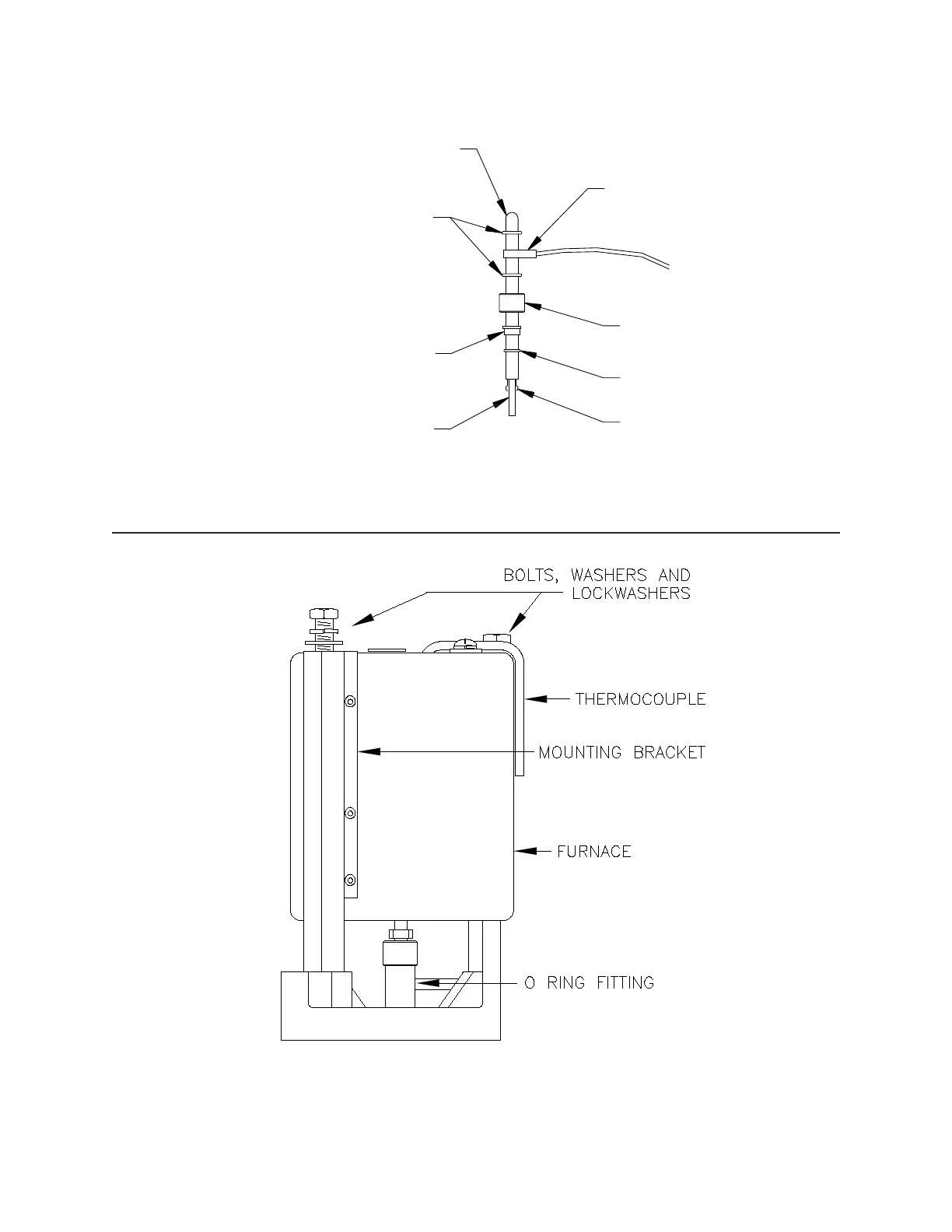

Figure 7-1.
Cell replacement.
Figure 7-2.
Furnace replacement.
Ceramic W
ashers
Ferrule
O-Ring Fitting
Cell Fingers
Cell O-Ring
Cell Clip
Cell
Inlet T
ube
139
141
