3-14 | Thermox TM 2000 Oxygen Analyzer
Control Unit Mounting
The Series 2000 Control Unit comes with various mounting options.
• Theweatherproofenclosurecanbemountedtoeitherapanel,awall,
or to a pole.
• Thegeneralpurposeenclosurecanbemountedasapanel,arack,ora
wall mount.
Find the section that corresponds to the type of control unit mounting
configuration you ordered, then mount as shown in that section.

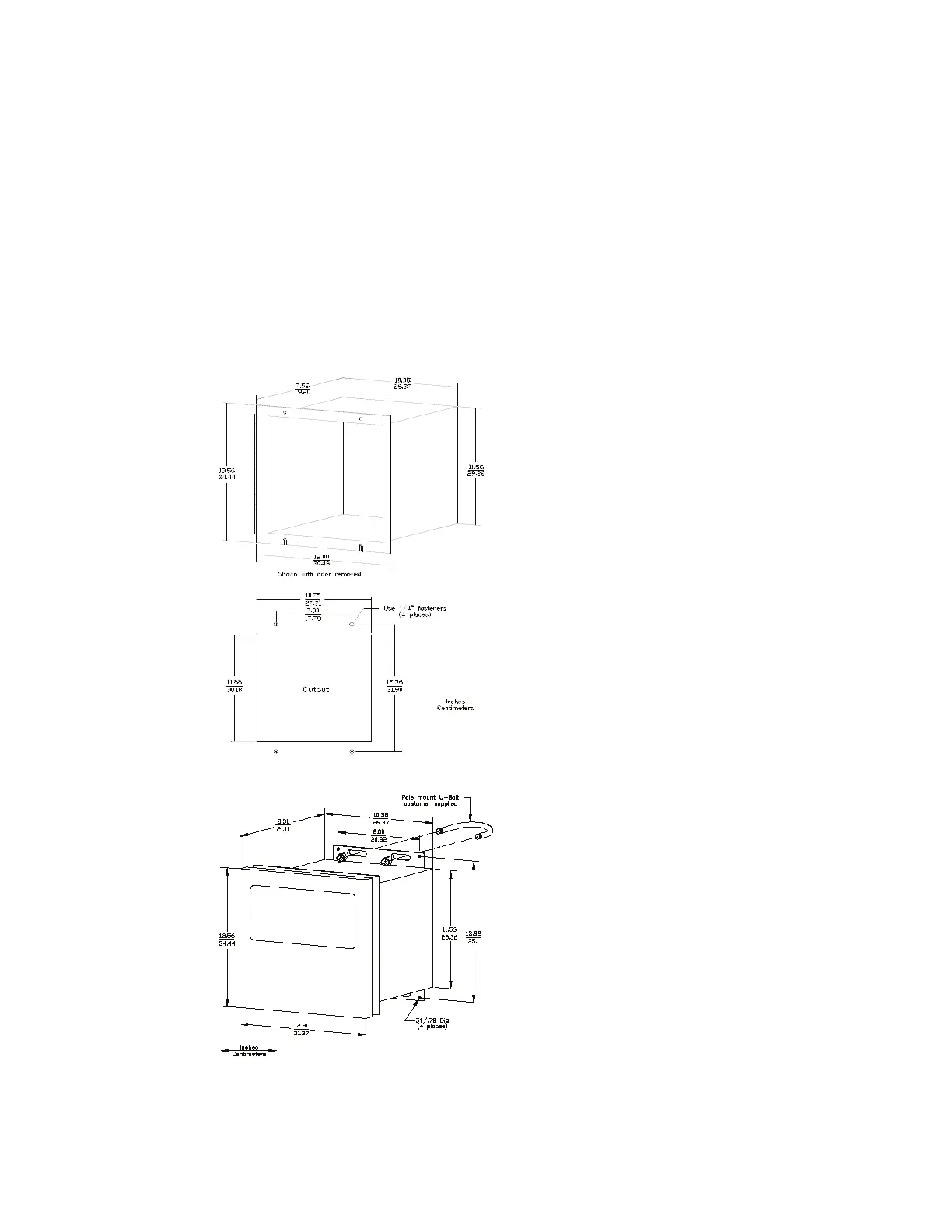

Figure 3-10.
Series 2000, weatherproof panel mount.
Weatherproof - panel
Figure 3-10 shows the panel mounting
dimensions for the Series 2000 weather-
proof enclosure. Use ¼”-diameter fas-
teners to mount the control unit to the
panel.
Weatherproof - wall/pole
Figure 3-11 shows the wall- and pole-
mounting dimensions for the Series 2000
weatherproof enclosure. For wall-mount
installations, use ¼”-diameter fasteners
to mount the control unit to a wall. For
pole-mount installations, the two slots
on the backplate of the enclosure can be
used to accommodate a customer-sup-
plied U-bolt of 3/8”- or ½”-diameter for a
2 ½” to 4 ½” pole diameter.
Figure 3-11.
Series 2000, weatherproof wall/pole mount.
