3-22 | Thermox TM 2000 Oxygen Analyzer
Sensor Connections
Follow all general grounding and shielding requirements as described
in the “General Wiring Requirements” section at the beginning of
this Wiring section. Also make sure that AC mains power has been
removed from the control unit and sensor before making sensor con-
nections.
This section describes required wiring connections between the control
unit and the sensor. Follow the connection instructions for the applicable
options for your analyzer. All sensor connections require that you access
the sensor board (see Figure 3-19)
Sensor cabling must be twisted pairs in rigid metal conduit or in an
overall braided shield. Follow wiring guidelines as specified in Figure
3-17 in the front of this wiring section.

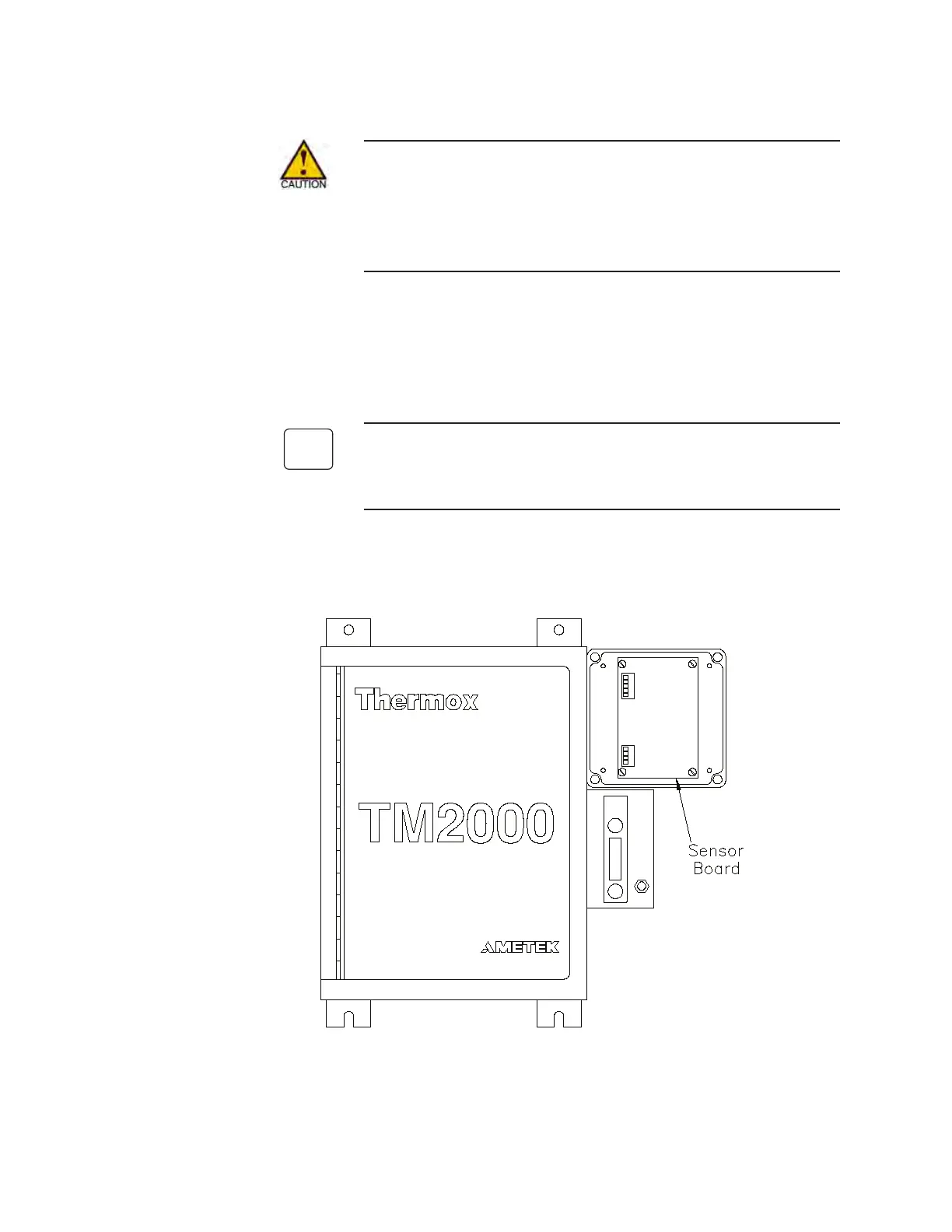

Figure 3-19.
Sensor board location
on sensor.
