Installation and Start-Up | 3-35
Adding an Option Card
1. Open the access door below the display module (hinges down).
2. Pull on the handle of the power supply/keypad module and remove
this module from the control unit (it slides out).
3. Insert the option card into any of the three available slots underneath
the display module. Make sure the card is properly seated by pressing
on both sides firmly. If the card is not properly seated, the access door
may not close.
4. Reinstall the power supply/keypad module.
Removing an Option Card
1. Remove the power supply/keypad module.
2. Pull with your left hand on the left of the option card while pulling on
the ejector lever on the right of the option card with your right hand
to remove the option card. The ejector will help apply extra force to
make is easier to release the card.

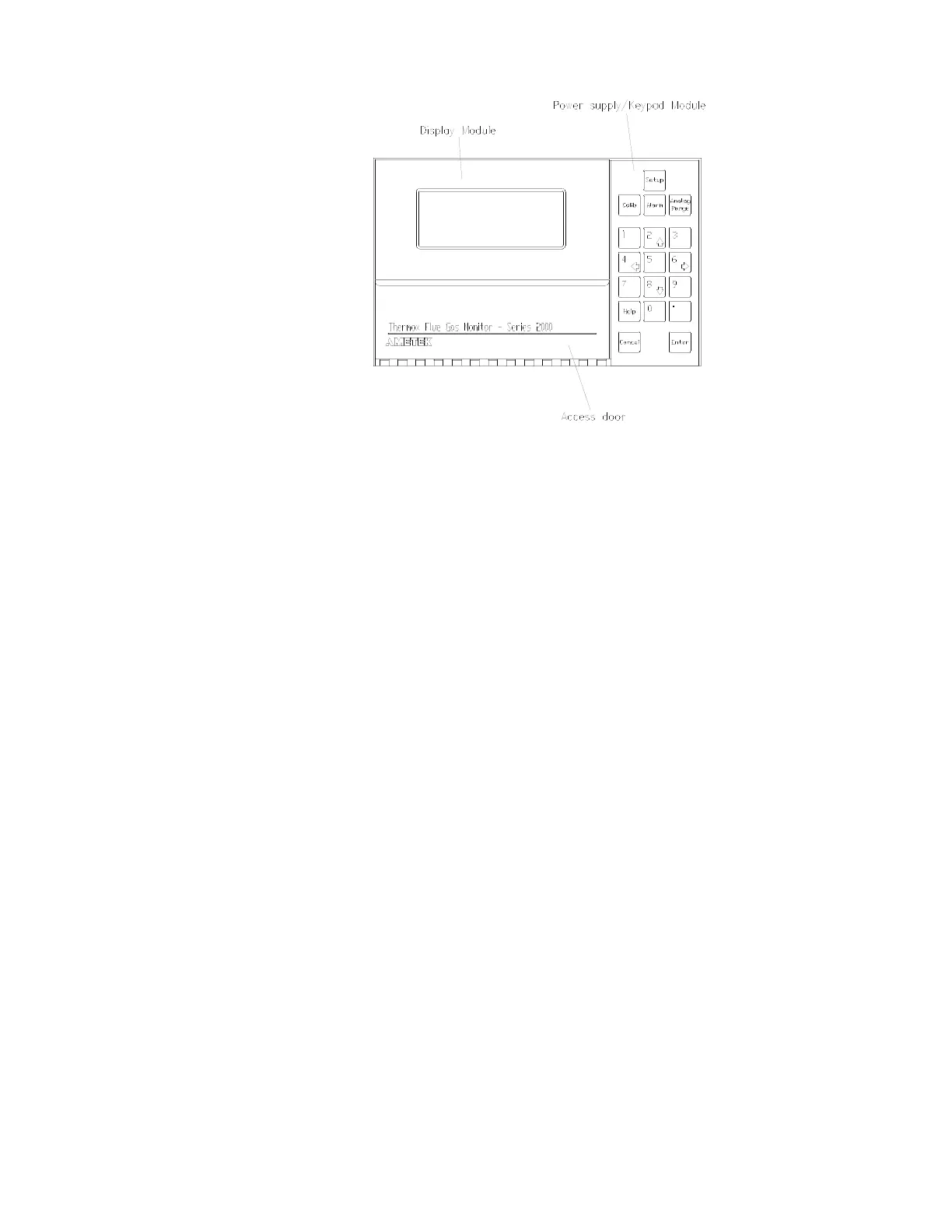

Figure 3-28.
Front view of Series
2000 Control Unit.
